National Guard Products R225 ADA Compliant Interlocking Wheelchair Ramp – 27″ Wide x 2-1/4″ High
Lead Time: 10-15 Business Days

501.12 501.12 USD 501.12

501.12

Not Available For Sale


  • Length
  • Brand
  • Threshold Grade
  • Threshold Type
  • Threshold Width
  • Threshold Height

This combination does not exist.


Share :

National Guard Products R225 ADA Compliant Interlocking Wheelchair Ramp – 27″ Wide x 2-1/4″ High

Product Features

  • Aluminum alloy 6063, T5 temper

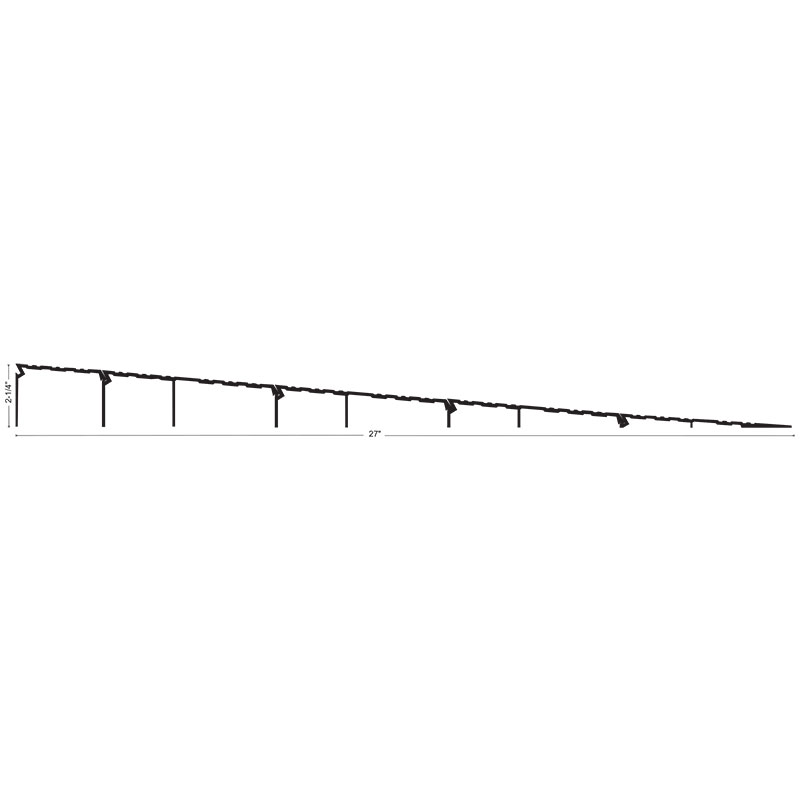

  • 27" wide x 2-1/4" tall
  • Typical wall thickness: .110"
  • Weight: 6.37 lbs./ft.
  • #10 FH zinc plated wood screws included
  • Mill finish

Standards

  • ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
  • CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.


Length 36 Inch or 48 Inch or 72 Inch
Brand National Guard Products
Threshold Grade Commerical- Standard
Threshold Type Ramp
Threshold Width 27"
Threshold Height 2-1/4"
2025 INTERLOCKING-RAMPS Catalog Page.pdf
Download
NGP Seals Catalog 2025.pdf
Download
R225-Seal-Threshold-Install-24.09.pdf
Download
R225_cutsheet.pdf
Download
