NGP RO75 ADA Compliant Offset Interlocking Wheelchair Ramp – 15″ Wide x 1/4″ High x 3/4" Offset

https://www.doorwaysplus.com/web/image/product.template/32423/image_1920?unique=132d463

National Guard Products RO75 ADA Compliant Offset Interlocking Wheelchair Ramp – 15″ Wide x 1/4″ High x 3/4" Offset
Lead Time: 10-15 Business Days

254.40 254.4 USD 254.40

254.40

Not Available For Sale


  • Length
  • Brand
  • Threshold Grade
  • Threshold Type
  • Threshold Width
  • Threshold Height
  • Threshold Offset

This combination does not exist.


Share :

National Guard Products RO75 ADA Compliant Offset Interlocking Wheelchair Ramp – 15″ Wide x 1/4″ High x 3/4" Offset

Product Features

  • Aluminum alloy 6063, T5 temper

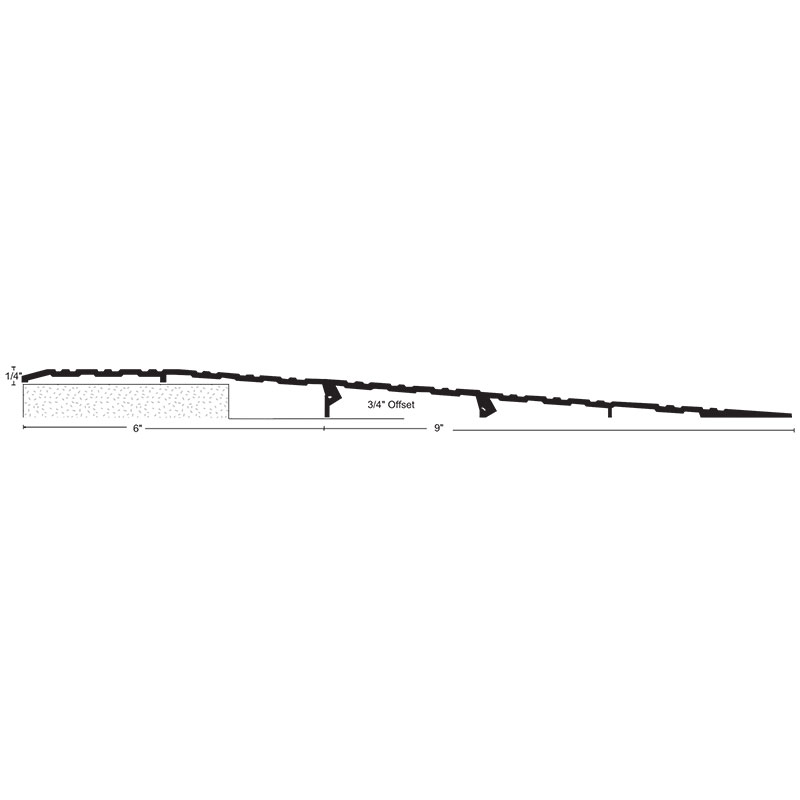

  • 15" wide x 1/4" tall with 3/4" offset
  • Typical wall thickness: .110"
  • Weight: 2.56 lbs./ft.
  • #10 FH zinc plated wood screws included
  • Mill finish

Standards

  • ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
  • CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.


Length 36 Inch or 48 Inch or 72 Inch
Brand National Guard Products
Threshold Grade Commerical- Standard
Threshold Type Offset Ramp
Threshold Width 15"
Threshold Height 1/4"
Threshold Offset 3/4"
