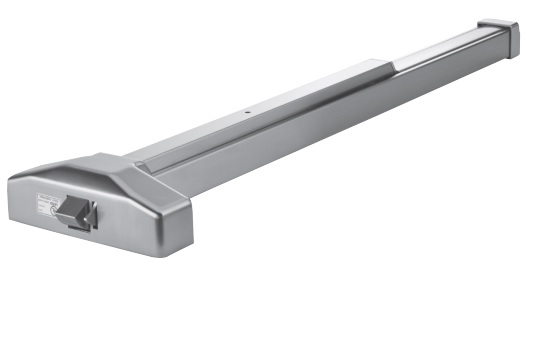

PDQ 4200RA 48" Non Rated Rim Exit Device - Commercial Grade 4-Foot Panic Bar
The PDQ 4200RA is a precision-engineered Rim Exit Device specifically designed to provide safe egress for extra-wide 48" (4-foot) commercial door openings. Designed for medium-duty applications, this extended-rail panic bar offers a reliable and cost-effective solution for large-scale exits in schools, convention centers, and retail warehouses that require a durable hardware setup without the overhead of a heavy-duty industrial price point.
Built with a focus on longevity, the 4200RA features a corrosion-resistant plated steel chassis and a heavy-gauge steel rail that spans the necessary width of oversized doors. Its non-handed design ensures seamless installation on either left- or right-hand swinging doors, providing a flexible "drop-in" solution for wide-stile openings that must meet stringent building and life-safety codes.
ANSI/BHMA Function: Rim Exit Device (Panic Hardware)
The PDQ 4200RA functions as a high-visibility life-safety device, ensuring that even under panic conditions, an oversized door remains easy to operate.
- Oversized Door Egress: The extended touch bar is specifically calibrated for 4-foot wide doors, ensuring that pressure applied at any point along the rail will immediately retract the latch for a safe exit.
- Hex Key Dogging: As a non-fire-rated device, it features a manual "dogging" mechanism. By using a standard hex key, the latch can be locked in the retracted position. This converts the door into a high-volume "push/pull" entrance during peak hours, significantly reducing mechanical wear.
- Rim Mount Security: The stainless steel latch bolt projects into a surface-mounted strike on the frame. This "Rim" configuration is the most reliable and easiest to maintain for single doors or pairs of doors with a mullion.
Technical Specifications
| Feature | Details |
| Model | PDQ 4200RA |
| Application | Rim Exit (Non-Fire Rated) |
| Door Width | Fits standard 48" (4 ft) doors |
| Handing | Non-Handed (Field Reversible) |
| Chassis | Plated Steel (Corrosion Resistant) |
| Latch Bolt | Stainless Steel with 3/4" Throw |
| Backset | Compatible with 2-3/4" backset & 161 prep |
| Stile Width | 4-1/4" Minimum |
| Door Thickness | 1-3/4" Standard |
| Certifications | UL 305 Listed, ADA Compliant |
| Warranty | 5-Year Limited Warranty |
Engineered Solutions for Wide-Stile Openings
The 4200RA Series is designed to solve the unique challenges of oversized commercial openings:
- Life Safety Compliance: This device is UL 305 Listed for Panic Hardware and meets all ADA and ICC/ANSI 117.1 requirements for accessibility. It ensures that even a heavy 4-foot door remains easy to open with minimal force.
- Vandal-Resistant Durability: The combination of a plated steel chassis and a heavy-gauge steel rail provides the structural integrity needed for medium-duty commercial use, preventing rail "flex" on wider door widths.
- Architectural Finish Options: Available in several professional finishes, including 626 Satin Chrome, 630 Satin Stainless Steel, and 689 Aluminum, allowing for a consistent aesthetic across all door sizes in your facility.
- Antimicrobial Protection: For high-touch environments such as hospitals or schools, an optional antimicrobial coating is available on 626 and 630 finishes to inhibit the growth of bacteria and viruses on the touch bar.
- Buy America Act (BAA): Assembled in the USA, this hardware satisfies the rigorous procurement requirements for federal, state, and municipal government projects.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or 626 - Satin Chrome or 689 - Spray Alumimun or 695 - Spray Dark Bronze or 696 - Spray Gold or US3 - Polished Brass |
| Brand | PDQ |
| Exit Device Type | Rim Exit Device |
| Series | PDQ - 4200 Series |
| Exit Device Fire Rating | Non Rated Door |
| Door Opening Width | 48 Inches |
