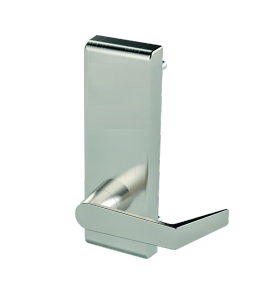

PDQ 6W14 PHL Heavy-Duty Passage Exit Device Trim - Passage Exit Device Trim

The PDQ 6W14 PHL is an architectural-grade, extra heavy-duty passage lever trim specifically engineered for high-traffic wide-stile doors. Part of the premier 6000 Series, this wide escutcheon trim features the modern, return-to-door Philadelphia (PHL) lever design, offering a blend of sleek aesthetics and industrial-strength performance. It is the definitive solution for commercial openings that require unrestricted access during business hours while maintaining the durability expected from a Grade 1 device.

Designed to solve common facility management challenges, the 6W14 is a primary retrofit solution. Its generous 3" x 9" escutcheon plate is specifically designed to cover existing 2-1/8" (161) bore holes, allowing for a clean, professional-looking upgrade to a panic bar system without the need for unsightly cover plates. The heavy-duty through-bolt mounting creates a rigid, vibration-resistant assembly that prevents the lever from loosening or sagging over years of constant use.

ANSI Function 14: Passage / Always Active

The ANSI 14 Function is designed for doors where free, unrestricted entrance is the priority. It ensures smooth traffic flow without the complication of locking mechanisms.

• Entrance by Lever: Turning the exterior Philadelphia lever retracts the latch bolt of the exit device at all times.
• Always Unlocked: This trim remains in the passage state; there is no cylinder or locking mechanism to secure the lever from the outside.
• Maintenance-Free Security: Because there are no cylinders to re-key or pins to replace, the passage function is the lowest-maintenance trim option available for high-traffic corridors.
• Universal Egress Safety: While the exterior is always active for entry, the interior exit device always allows for "single-motion" emergency egress, ensuring full compliance with life-safety and fire codes.

Technical Specifications

Engineered Solutions for High-Traffic Facilities

The PDQ 6W Series addresses the specific technical and aesthetic needs of commercial environments:

• Eliminate Lever Sag: High-use passage doors are prone to sagging levers. The 6W14 features an independent, heavy-duty spring cage that returns the Philadelphia lever to a perfect 180-degree horizontal position every time.
• Seamless Retrofitting: When upgrading from standard locks to exit devices, the 6W wide plate provides enough surface area to hide old mounting scars, providing a "factory-finish" look on existing doors.
• ADA & Accessibility Compliance: The ergonomic "return-to-door" design of the PHL lever meets all ADA and ICC/ANSI A117.1 standards. It is easily grasped and prevents clothing or equipment from snagging during use.
• Institutional Durability: The investment-cast chassis and reinforced mounting points ensure this trim can withstand the daily physical abuse typical of schools, hospitals, and transit hubs.
• Buy American Act (BAA) Ready: Assembled in the USA, this hardware meets the domestic sourcing requirements for federal, state, and municipal government projects.
