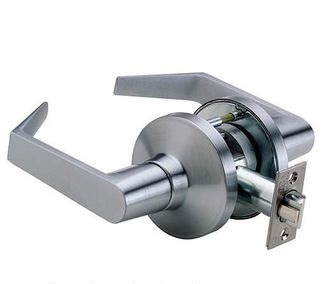

PDQ GP126 PHL Passage Function Cylindrical Latchset
Function Information:
- Latchbolt operated by lever from either side at all times
- ANSI F75
The PDQ GP126 PHL is a heavy-duty Grade 2 Passage Latchset built for high-traffic commercial corridors where durability is non-negotiable. Part of the rugged Series 4000, this latchset features the architectural Philadelphia (PHL) lever style. While most Grade 2 locks provide basic functionality, the GP Series is engineered to exceed expectations with a massive 1600 in-lbs of torque resistance and a heavy-duty zinc diecast mechanism.
As a Passage Function (ANSI F75) unit, the GP126 is designed for doorways that require constant accessibility without a locking mechanism. Both the interior and exterior levers operate the latchbolt at all times, making it the perfect choice for office partitions, supply closets, and high-volume interior thoroughfares.
Institutional Strength & Windstorm Certification
The PDQ GP Series stands apart as a Windstorm Resistant Product, listed to withstand design loads of 685 lbf. Assembled in the U.S.A., this latchset meets the stringent requirements of the Buy American Act, making it the preferred choice for municipal, federal, and military facility upgrades.
Technical Specifications
| Feature | Details |
| Model | PDQ GP126 PHL |
| Function | Passage (ANSI F75) |
| Torque Resistance | Exceeds 1600 in-lbs |
| Backset | 2-3/4" Standard (2-3/8" or 5" optional) |
| Strike | 4-7/8" x 1-1/4" ASA Strike |
| Fire Rating | UL/cUL Listed 3-Hour "A" Label |
| Lever Style | Philadelphia (PHL) Solid Zinc Diecast |
| Warranty | 8-Year Limited Warranty |
| Compliance | Buy American Act; ADA; Windstorm Resistant |
Why the PDQ GP Series Outperforms the Competition
At DoorwaysPlus.com, we recommend the GP Series for users who need a "Grade 1 feel" with Grade 2 efficiency.
- Heavy-Duty Construction: Features a stainless steel and investment cast mechanism designed to handle hundreds of thousands of cycles without lever sag.
- ADA Compliant Accessibility: The PHL lever features a 65° rotation for easy operation, adhering to all accessibility requirements for commercial buildings.
- Standardized Fit: Designed for standard 161 door prep with through-door thru-bolting to ensure the lockset remains rigid and aligned under heavy usage.
- Fire Safety: UL 10C Positive Pressure Rated for use on 3-hour fire doors, ensuring your facility stays up to code.
Availability Note: The US26D Satin Chrome finish is typically stocked for immediate shipment. For all other architectural finishes, please allow a 3-5 day lead time plus shipping.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Brand | PDQ |
| ANSI Cyl Lock Function | F75 - Passage |
| Trim Design | PHL |
| Series | PDQ - GP Series |
| Backset | 2-3/4" Backset |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
