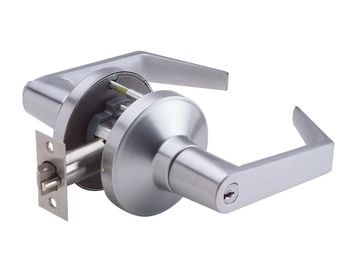

PDQ GP148 PHL Classroom Function Cylindrical Lockset
Series 4000 Grade 2 with 2-3/4" Backset & 4-7/8" ASA Strike
Function Information:
- Latchbolt operated by lever from either side
- Outside lever locked by key from outside
- Outside lever unlocked by key from outside
- Inside lever always operates latch
- ANSI F84
Note: Please allow 2-3 days lead time (plus shipping) for all finishes except US26D - Satin Chrome
PDQ GP Series Specifications:
| For Doors: | 1-3/8" to 1-3/4" thick. Factory adjusted for 1-3/4". |
| Door Prep: | Fits standard 161 door prep. Through-door thru-bolting. |
| Backset: | 2-3/4", 2-3/8", 5". |
| Case: | Heavy duty zinc diecast, investment cast and stainless steel mechanism. |
| Front: | Stainless steel or wrought brass. 2-1/4" x 1-1/8". Beveled 1/8" on 2". |
| Rose: | 3-3/8" diameter |
| Strike: | 4-7/8" x 1-1/4" (ASA). “T” or “FL” Strike optional. Stainless steel or wrought brass |
| Latchbolt: | 1/2" throw. Adjustable front for flat or beveled doors. |
| Hand: | Non-handed. |
| Trim: | PHL, BSN or MIA levers are solid zinc diecast. 65° lever rotation. Wrought brass roses. Concealed screws. Levers are also available for Large Format IC Core. Contact Customer service for more information. |
| Keys: | Two (2) change keys per lock. |
| Keyways: | Available in Keyways of most major manufacturers. |
| Interchangeable Core: | Available for all keyed functions. 6 or 7 pin. |
| Cylinder: | Brass 6-pin cylinder keyed to 5 pins. |
| Keying: | Can be MK, CMK, GMK. Available Zero Bitted (K0), Keyed Different (KD), Keyed Alike (KA). Can be keyed into existing masterkey systems of other manufacturers. |
| Finishes: | US3(605), US4(606), US10(612), US10B(613), US26(625), US26D(626). |
| Certifications: | BHMA Certified Product ANSI/BHMA A156.2-2003, Series 4000, Grade 2. Windstorm Resistant Product Listed - ANSI A250.13-2003, ASTM E1886-02, ASTM E330-02, Outswing: 350 ft-lbs., Inswing: N/R, Design Load Rating: 685 lbf. Meets all accessibility requirements of the ADA. U.L./U.L.C. Listed for “A” label (3 hour) single swing doors (4'0" x 8'0"). U.L. 10C/UBC 7-2 (1997) Positive Pressure Rated. U.L. 10B Neutral Pressure Rated. Exceeds 1600 in. lbs. of torque resistance. Certification through ETL |
| Warranty: | Eight-year limited warranty. |
| Country of Origin: | Assembled in the U.S.A. with U.S. and foreign material. Meets the requirements of the Buy American Act. |
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Brand | PDQ |
| Standard Cylinders and Keyways | Schlage C Keyway |
| ANSI Cyl Lock Function | F84 - Classroom |
| Trim Design | PHL |
| Series | PDQ - GP Series |
| Backset | 2-3/4" Backset |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
