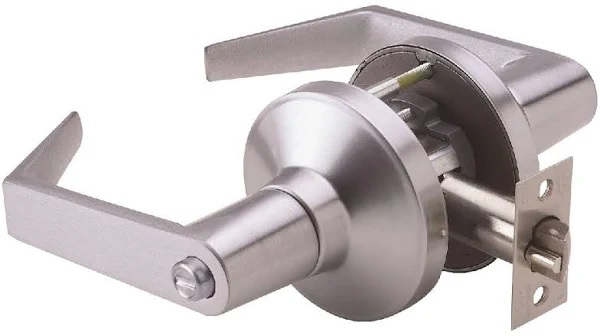

PDQ GP176 PHL Privacy Function Cylindrical Latchset
Function Information:
- Latchbolt operated by lever from either side or emergency release in outside lever
- Outside lever locked by push button on inside
- Outside lever unlocked by emergency release from outside, rotating inside lever, or closing door
- ANSI F76
The PDQ GP176 PHL is an institutional-grade Grade 2 Privacy Lockset designed for high-use commercial restrooms, dressing rooms, and private offices. Featuring the architectural Philadelphia (PHL) solid zinc diecast lever, the GP Series is a "step-up" solution engineered to exceed standard Grade 2 expectations, offering a massive 1600 in-lbs of torque resistance and an investment-cast stainless steel mechanism.
As a Privacy Function (ANSI F76) unit, the GP176 balances personal privacy with facility safety. The interior lever features a push-button lock, while the exterior lever includes an emergency release to allow authorized access from the outside if needed.
Heavy-Duty Performance & Windstorm Certification
Unlike standard residential privacy locks, the PDQ GP Series is a Windstorm Resistant Product listed to withstand design loads of 685 lbf. Assembled in the U.S.A., it meets the strict requirements of the Buy American Act, making it the premier choice for government, military, and municipal projects.
Technical Specifications
| Feature | Details |
| Model | PDQ GP176 PHL |
| Function | Privacy (ANSI F76) |
| Lever Style | Philadelphia (PHL) - ADA Compliant |
| Backset | 2-3/4" Standard (2-3/8" or 5" optional) |
| Strike | 4-7/8" x 1-1/4" ASA Strike |
| Fire Rating | UL/cUL Listed 3-Hour "A" Label |
| Torque Resistance | Exceeds 1600 in-lbs |
| Warranty | 8-Year Limited Warranty |
| Compliance | Buy American Act; Windstorm Resistant; UL 10C |
Key Features of the GP176 Privacy Lockset
- Safety-First Privacy Logic: The outside lever is locked by a push button on the inside. It automatically unlocks when the inside lever is rotated, the door is closed, or via the emergency release on the outside.
- Superior Durability: Features heavy-duty zinc diecast and stainless steel internal components designed to prevent the common "lever sag" found in lesser Grade 2 locks.
- ADA Accessibility: The PHL lever offers a smooth 65° rotation, meeting all ADA accessibility requirements for ease of use without tight grasping or twisting.
- Standardized Fit: Designed for Standard 161 Door Prep with through-door thru-bolting to ensure the chassis remains rigid and aligned under high-frequency use.
Shipping Note: Please allow 3-5 days lead time (plus shipping) for all architectural finishes. The US26D Satin Chrome finish is typically stocked for immediate shipment.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Brand | PDQ |
| ANSI Cyl Lock Function | F76 - Privacy |
| Trim Design | PHL |
| Series | PDQ - GP Series |
| Occupancy Indicator | No |
| Backset | 2-3/4" Backset |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
