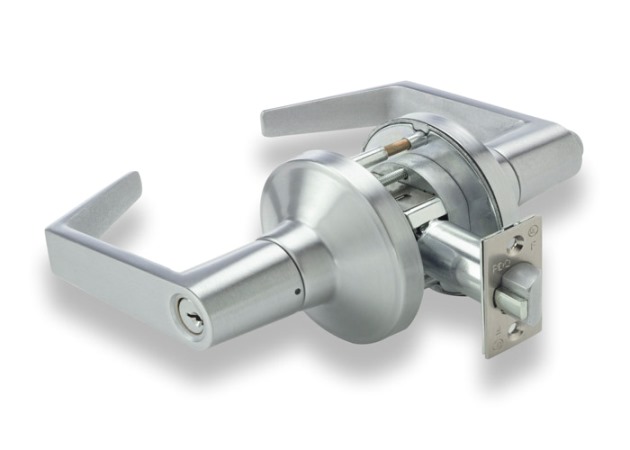

PDQ GT116 PHL Cylindrical Office Entry Function Lockset | Grade 1
Function Information:
- Latchbolt operated by lever from either side or key in outside lever
- Outside lever locked by push/turn button on inside
- When outside lever is locked by push button on inside – key from outside, or rotating inside lever unlocks outside lever
- When outside lever is locked by pushing and turning button on the inside, key from outside or rotating inside lever retracts latch but does not unlock outside lever
- ANSI F109
The PDQ GT116 PHL represents the pinnacle of commercial door security and durability. Engineered as a Grade 1 Cylindrical Lockset, this hardware is designed for high-traffic corporate offices, government buildings, and institutional facilities where reliability is a non-negotiable requirement. Featuring the architectural Philadelphia (PHL) lever style, the GT Series provides a modern aesthetic without sacrificing the "over-built" internal strength necessary to withstand extreme physical abuse.
With an industry-leading 2100 in-lbs of torque resistance, the GT116 is purpose-built to solve the problem of vandal-induced lock failure. Its heavy-duty chromated cold-rolled steel mechanism and billet steel spindles ensure that your facility remains secure even under high-stress conditions.
ANSI F109 Office Entry Function: Precision Access Control
The ANSI F109 (Office/Entry) function is the preferred solution for office doors that require flexible locking modes throughout the business day. This function allows the user to determine the security level of the room from the interior.
- Standard Operation: The latchbolt is operated by the lever from either side unless the outside lever is locked by the interior push/turn button.
- Push-Button Locking: When the inside button is pushed, the outside lever is locked. Access is granted via key from the outside or by rotating the inside lever, which also unlocks the outside lever for free passage.
- Push-and-Turn Security: For enhanced privacy, pushing and turning the button keeps the outside lever locked even after the door is opened or the inside lever is rotated. Entry requires a key until the button is manually returned to the unlocked position.
- Deadlocking Feature: Includes a deadlocking latchbolt to prevent "shimming" or "loiding" attacks with credit cards or tools.
Technical Specifications
| Feature | Details |
| Model | PDQ GT116 PHL |
| Function | Office Entry (ANSI F109) |
| Certification | ANSI/BHMA Grade 1, Series 4000 |
| Torque Resistance | Exceeds 2100 in-lbs |
| Backset | 2-3/4" Only (Deadlocking) |
| Latchbolt | 9/16" Throw |
| Strike | 4-7/8" x 1-1/4" ASA Strike |
| Door Thickness | 1-3/4" to 2-1/4" |
| Fire Rating | UL/cUL Listed 3-Hour "A" Label |
| Windstorm Rating | Design Load Rating: 1485 lbf |
| Warranty | 25-Year Limited Warranty |
High-Performance Solutions for Modern Facilities
The PDQ GT Series is engineered to address the specific pain points of commercial facility management:
- Eliminate Lever Sag: Most Grade 2 and even some Grade 1 locks suffer from drooping levers over time. The GT Series utilizes a heavy-duty spring cage and a precise 41° lever rotation to ensure the Philadelphia lever stays perfectly horizontal for the life of the building.
- Severe Weather Readiness: This is a certified Windstorm Resistant Product (ANSI A250.13), capable of withstanding extreme pressure loads and impacts, making it ideal for coastal regions or critical infrastructure.
- Universal Keying Integration: The GT116 is available in keyways for most major manufacturers and supports Interchangeable Core (IC) options (6 or 7-pin). This allows you to integrate this high-security lock into your existing master key system seamlessly.
- Institutional Code Compliance: Fully compliant with ADA accessibility requirements and UL 10C Positive Pressure fire codes.
- Procurement Ready: Assembled in the USA, this product meets the requirements of the Buy American Act, satisfying the compliance needs of federal and municipal government contracts.
Order Lead Time: The US26D Satin Chrome finish is a high-stock item. For all other premium architectural finishes, please allow a 3-5 day lead time plus shipping.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Brand | PDQ |
| Standard Cylinders and Keyways | Schlage C Keyway |
| ANSI Cyl Lock Function | F81 - Office Entrance |
| Trim Design | PHL |
| Series | PDQ - GT Series |
| Backset | 2-3/4" Backset |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
