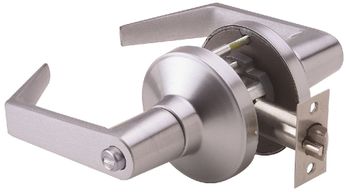

PDQ GT176 PHL Privacy Function Cylindrical Lockset | Grade 1
Function Information:
- Latchbolt operated by lever from either side or emergency release in outside lever
- Outside lever locked by push button on inside
- Outside lever unlocked by emergency release from outside, rotating inside lever, or closing door
- ANSI F76
The PDQ GT176 PHL is the ultimate institutional-grade Grade 1 Privacy Lockset, designed for environments where failure is not an option. Featuring the architectural Philadelphia (PHL) solid zinc-diecast lever, this unit is the flagship of the GT Series. It is engineered to withstand extreme physical abuse, boasting an industry-leading 2100 in-lbs of torque resistance—nearly triple the requirement for standard Grade 1 hardware.
ANSI F76 Function Summary: Safety-First Privacy
The ANSI F76 (Privacy) function is designed for non-keyed areas requiring personal privacy, such as restrooms, changing rooms, or private offices.
- Locking: The outside lever is secured by a simple push-button on the interior.
- Emergency Access: The outside lever features a discreet emergency release, allowing authorized personnel to unlock the door from the exterior using a small tool or screwdriver.
- Automatic Unlocking: To prevent accidental lockouts and ensure easy egress, the lock automatically disengages by rotating the inside lever, closing the door, or using the exterior emergency release.
Technical Specifications
| Feature | Details |
| Model | PDQ GT176 PHL |
| Function | Privacy (ANSI F76) |
| Certification | ANSI/BHMA Grade 1, Series 4000 |
| Torque Resistance | Exceeds 2100 in-lbs |
| Backset | 2-3/4" Only (Deadlocking) |
| Latchbolt | 9/16" Throw |
| Strike | 4-7/8" x 1-1/4" ASA Strike |
| Fire Rating | UL/cUL Listed 3-Hour "A" Label |
| Lever Style | Philadelphia (PHL) Solid Zinc Diecast |
| Warranty | 25-Year Limited Warranty |
High-Performance Solutions for Institutional Facilities
The PDQ GT Series offers a "life-of-the-building" solution, solving the most common issues found in high-traffic commercial hardware:
- Eliminate Lever Sag: High-traffic doors often suffer from drooping handles. The GT Series uses a chromated cold-rolled steel mechanism and a precision 41° lever rotation to ensure handles stay perfectly horizontal for decades.
- Extreme Vandal Resistance: With billet steel spindles and heavy-duty zinc diecast components, the GT176 is built to survive intentional abuse and high-force environments without compromising safety.
- Windstorm & Fire Safety: This is a Windstorm Resistant Product listed with a design load rating of 1485 lbf. It is also UL 10C Positive Pressure Rated, making it suitable for any fire-rated opening.
- Compliance & Sourcing: Fully compliant with ADA accessibility requirements and the Buy American Act, this hardware is the standard for federal, municipal, and healthcare projects.
- Seamless Installation: Designed to fit Standard 161 Door Prep with through-door thru-bolting, preventing the chassis from loosening or twisting under heavy usage.
Availability Note: For rapid facility upgrades, the US26D (Satin Chrome) finish is typically available for immediate shipment. For all other premium architectural finishes, please allow a 3-5 day lead time plus shipping.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Brand | PDQ |
| ANSI Cyl Lock Function | F76 - Privacy |
| Trim Design | PHL |
| Series | PDQ - GT Series |
| Occupancy Indicator | No |
| Backset | 2-3/4" Backset |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
