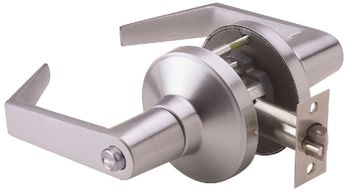

PDQ GT176 PHL Privacy Function, Cylindrical Latchset
Series 4000, Grade 1 with 2-3/4" Backset & 4 7/8" ASA Strike
Function Information:
- Latchbolt operated by lever from either side or emergency release in outside lever
- Outside lever locked by push button on inside
- Outside lever unlocked by emergency release from outside, rotating inside lever, or closing door
- ANSI F76
Note: Please allow 3-5 days lead time (plus shipping) for all finishes except US26D - Satin Chrome
PDQ GT Series Specifications:
| For Doors: | 1-3/4" to 2-1/4" thick. Factory adjusted for 1-3/4". |
| Door Prep: | Fits standard 161 door prep. Through-door thru-bolting. |
| Backset: | 2-3/4" only. Deadlocking. |
| Case: | Heavy duty zinc diecast, investment cast and chromated cold rolled steel mechanism. Billet steel spindles on locking side for added strength. |
| Front: | Stainless steel or wrought brass. 2-1/4" x 1-1/8". Beveled 1/8" on 2". |
| Rose: | 3-3/8" diameter |
| Strike: | 4-7/8" x 1-1/4" (ASA). “T” or “FL” Strike optional. Stainless steel or wrought brass. |
| Latchbolt: | 9/16" Throw. Adjustable front for flat or beveled doors. |
| Hand: | Non-handed. |
| Trim: | PHL, BSN or MIA levers are solid zinc diecast. 41° lever rotation. Wrought brass roses. Concealed screws. |
| Keys: | Two (2) change keys per lock. |
| Keyways: | Available in keyways of most major manufacturers. |
| Interchangeable Core: | Available for all keyed functions / 6 or 7-pin / Compatible with Best, Falcon and Arrow / Large Format IC Core available. Check with factory |
| Cylinder: | Brass 6-pin cylinder keyed to 5 pins. |
| Keying: | Can be MK, CMK, GMK. Available Zero Bitted (K0), Keyed Different (KD), Keyed Alike (KA). Can be keyed into existing masterkey systems of other manufacturers. |
| Finishes: | 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 625 (US26), 626 (US26D) *Other finishes available via special order |
| Certifications: | BHMA Certified Product: ANSI/BHMA A156.2-1996, Series 4000, Grade 1. Windstorm Resistant Product Listed - ANSI A250.13-2003, ASTM E1886-02, ASTM E330-02, Outswing: 350 ft-lbs., Inswing: N/R, Design Load Rating: 1485 lbf. Meets all accessibility requirements of the ADA. U.L./U.L.C. Listed for “A” label (3 hour) single swing doors (4'0" x 8'0"). Exceeds 2100 in. lbs. of torque resistance. ITS Tested. |
| Warranty: | Twenty-five-year limited warranty. |
| Country of Origin: | Assembled in the USA with U.S. and foreign materials and meets the requirements of the Buy American Act. |
Cross Reference for other brands of locksets
Do you require Special Keying Services?
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Brand | PDQ |
| ANSI Cyl Lock Function | F76 - Privacy |
| Trim Design | PHL |
| Series | PDQ - GT Series |
| Occupancy Indicator | No |
| Backset | 2-3/4" Backset |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
