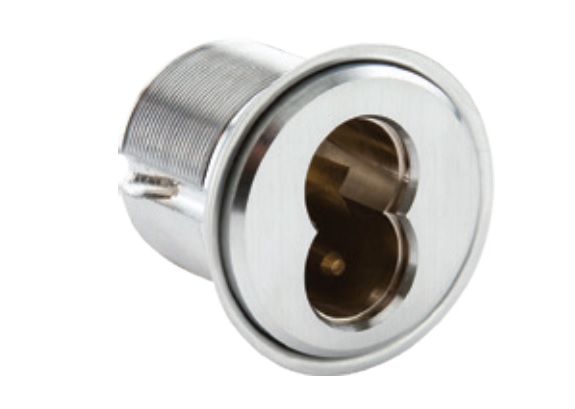

PDQ I5307 SFIC 7-Pin Mortise Cylinder Housing - 1-3/8" Length US26D (Less Core)

The PDQ I5307 SFIC Mortise Cylinder is a high-capacity, professional-grade architectural housing designed for facilities utilizing 7-Pin Small Format Interchangeable Core (SFIC) security systems. At a length of 1-3/8", this cylinder provides the necessary depth for thicker door assemblies, specialized trim, or high-security escutcheons. Finished in US26D Satin Chrome, it offers a sleek, durable appearance that matches modern commercial hardware while providing the structural integrity required for high-traffic environments like hospitals, university campuses, and government buildings.

As a "less core" solution, the I5307 acts as a universal vessel for any standard 7-pin SFIC core (including Best, Falcon, and Arrow compatibles). The 7-pin configuration is the premier security solution for large-scale facilities, as it allows for significantly more complex master keying hierarchies than standard 6-pin systems. By deploying this housing, facility managers can achieve rapid re-keying capabilities, allowing authorized personnel to swap cores in seconds with a control key, thereby eliminating the downtime and high labor costs associated with traditional locksmith services.

- Sargent/ Accentra IC Cam  #I54041 shown above

Universal Cam Compatibility & Mechanical Solutions

The PDQ I5307 is uniquely versatile due to its support for interchangeable cams, allowing a single cylinder housing to solve diverse hardware challenges across an entire facility:

• PDQ MR Series (I54061): The Cloverleaf Cam is specifically calibrated for the PDQ MR Series Grade 1 Mortise Lock, ensuring smooth operation of the 11-million cycle rated mechanism.
• Adams Rite Storefronts (I54011): The AR Cam enables this SFIC housing to operate narrow-stile aluminum doors, a standard requirement for retail and commercial entryways.
• Schlage & Sargent Retrofits: Specialized cams allow the I5307 to integrate into existing Schlage (I54051 Cam) or Sargent (I54041 Cam) mortise locksets, maintaining architectural consistency while upgrading to an SFIC key system.

• Legacy Infrastructure: The Wide Straight Cam (I54031) provides a vital solution for maintaining Old Yale Mortise Locks, extending the life of existing hardware without requiring a full lockset replacement.

Technical Specifications

Engineered Solutions for Large-Scale Facility Management

The PDQ I5307 7-Pin Housing addresses the specific technical and logistical needs of complex commercial infrastructure:

• Expanded Keying Capacity: The 7-pin format is a critical infrastructure solution for massive facilities. It provides the additional master-keying "real estate" needed for complex department-level access control without compromising security.
• Instantaneous Security Restoral: In the event of a lost master key or a security breach, the SFIC design allows for a total perimeter re-key in minutes. This avoids the logistical nightmare of waiting for a locksmith to manually re-pin individual mortise cylinders.
• Corrosion-Resistant Longevity: Constructed from solid brass with a Satin Chrome finish, the I5307 is built to withstand harsh weather on exterior-facing doors and aggressive chemical cleaning in healthcare settings.
• Precision Alignment: The 1-3/8" length ensures a professional, flush fit with the door surface or protective collar, preventing the cylinder from being easily gripped by pipe wrenches or other forced entry tools.
• Inventory Simplification: By standardizing on the I5307 housing, a maintenance department can use one cylinder model for multiple lock brands simply by swapping the cam, significantly reducing inventory overhead and training time.
