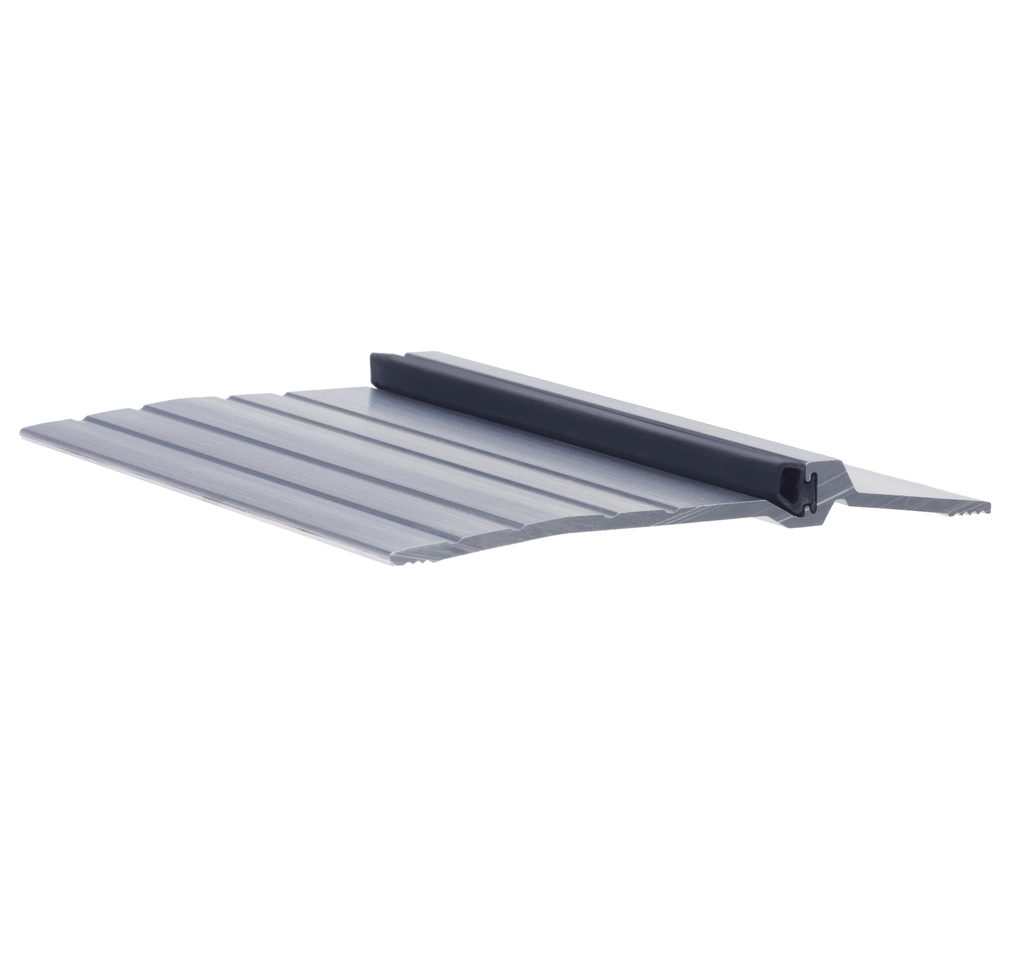

Pemko 2005AT 5" Wide x 1/2" Tall Latching Panic Threshold- Aluminum Finish

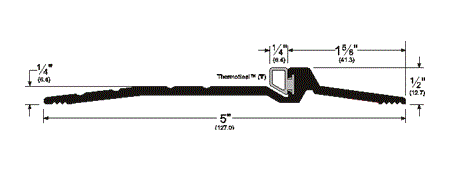

Discover the Pemko 2005AT Latching Panic Exit Threshold, designed for both function and durability. With a width of 5" and a height of 1/2", it offers a sleek profile perfect for a variety of applications. Available in lengths of 36", 48", 72", and 96", this threshold is versatile enough to meet your specific needs.

This product features a ThermoSeal Insert, providing a reliable seal at the bottom of your commercial door. Crafted from Anodized Aluminum, it not only ensures longevity but also complements modern architectural designs.

Key Features:

• Pre-drilled for easy installation with #10-24 Phillips flat head machine screws included.
• Allows for a 3/8" door clearance, ensuring a snug fit.
• Functions as both a doorstop and seal, enhancing the efficiency of surface-applied vertical rod exit devices.

Whether you're upgrading existing doorways or outfitting a new construction, the Pemko 2005AT combines practicality with style, making it an ideal choice for commercial spaces.

To ensure proper installation of the Pemko 2005AT Latching Panic Exit Threshold, you need to maintain a door clearance of 3/8 inch. This clearance is crucial for optimal functionality, allowing seamless operation and secure latching. By adhering to this measurement, you ensure effective use and durability of your exit threshold system.

Fasteners: None Supplied (Recommend Tapcon's or Sleeve Anchors for concrete, 1-1/2" Wood Screws for wood studs)

Special Note: Replacement Insert #T5

Certifications and Standards for the Pemko 2005AT Latching Panic Exit Threshold

When diving into the certifications and standards supported by the Pemko 2005AT Latching Panic Exit Threshold, you'll find a range of verifications ensuring both safety and quality.

• BHMA Certification:
  This threshold is recognized by the Builders Hardware Manufacturers Association (BHMA), which signifies adherence to industry standards for durability and performance.
• UL Certification:
  The Underwriters Laboratory (UL) has certified this product under the code 4L10. Also, it is fire-rated according to the UL10C standard, indicating its ability to withstand positive pressure conditions during a fire scenario.
• Additional Standards:
  • Air Infiltration Testing: The threshold has undergone rigorous testing to demonstrate its effectiveness in reducing air leakage, contributing to energy efficiency.
  • Sound Testing: According to ASTM E90, it’s tested for its sound insulation properties, ensuring it contributes to a quieter environment.
  • Barrier-Free Design: It meets accessibility standards, making it suitable for use in spaces requiring easy mobility access.
  • ADAAG-1998 (Amended); ICC/ANSI A117.1 and California Building Code, Title 24 for Barrier-Free Entry.
  • Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes.
  • ASTM E90 and BS EN ISO 140-3:1995 for Sound Control
  • ANSI NUMBER: J16123
  • Certified Greenguard Gold for Low Chemical Emissions

These certifications collectively underscore the product's capability to meet the demanding requirements of safety, efficiency, and accessibility.
