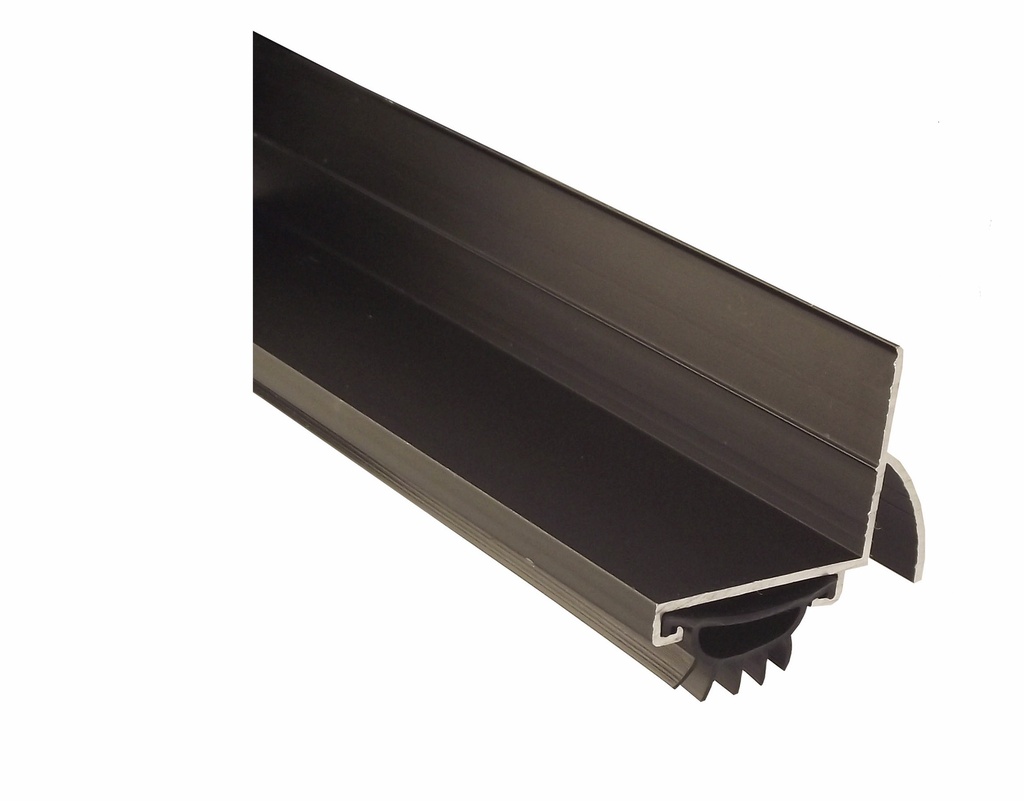

Pemko 210DV Door Bottom Shoe and Rain Drip, with Eco-V Black Vinyl Insert - Dark Bronze Anodized Aluminum Finish
• Door Bottom Shoe features Eco-V Vinyl Fingered insert for proper sealing and flexibility.
• Door Bottoms are punched with elongated slotted holes for easy adjustment. Furnished with #6 x 5/8" Pan Head SMS
• To ensure proper operation, the bottom of the door should maintain a 1/2" clearance from the floor or threshold.
• This door shoe is supplied with a Eco-V insert - item number EV9 (standard finish is black, gray available by special order)
• Door Bottoms are furnished net length (36" or 48") Field trimming will be required to fit door width. Exact net lengths are available by order
• The Eco V Vinyl Insert operates effectively within a temperature range of -4° to +122° F. (-20 to 50 Celsius) Temperatures exceeding 122° F will cause it to soften and lose its elasticity.
• Stops airflow from escaping or entering beneath the door
• ANSI: R3D514
Please request a quote for Optional Finishes and/or Insert Material:
BSP- Black Suede Powder Coat Aluminum
WSP - White Suede Powder Coat Aluminum
PemkoPrene Insert is also available in lieu of the Eco-V Insert (Black or Gray) ( ANSI: R3G514 )
The PemkoPrene (PK) Insert operates within a temperature range of -22° to +122° F (-30 to 50 Celsius) and is capable of withstanding brief periods of higher temperatures.
PRODUCT TESTING:
• Certified GREENGUARD Gold for Low Chemical Emissions
• Smoke Tested – Tested to UL 1784 and meets the requirements of NFPA 105-2013 for smoke leakage in an opening; allows no more than 3.0 cfm per square foot at 0.10” water column (about 75 Pa).
• Fire Rated – Tested to UL10B Standard Fire Tests and UL10C Positive Pressure Fire Tests of Door Assemblies
• BHMA Certified – Tested for performance with regards to the requirements in:
• ANSI/BHMA A156.22 – Door Gasketing and Edge Seal Systems
• Prop 65 – This product contains a chemical known to the state of California to cause cancer:
• Polyvinyl Chloride (PVC) - Eco-V
| Length | 36 Inch or 48 Inch |
| Brand | Pemko |
| Insert Material | Vinyl |
| Material Length | 1/2" |
| Bottom Weatherseal Type | Door Bottom w/ Rain Drip |
| Housing Finish | Dark Bronze |
| Fire Rated | Fire Rated |
| Smoke Rated | Smoke Rated |
