Pemko 221AV Extended Door Bottom with Vinyl Insert
Pemko 221 Extended Door Bottom, 3" High, Alum Finish, 36 inch or 48 inch length, 1 3/4" Doors, Gray Eco-V Vinyl Insert
Pemko 221 Extended Door Bottom, 3" High with Eco-V Gray Vinyl Insert, Aluminum Finish

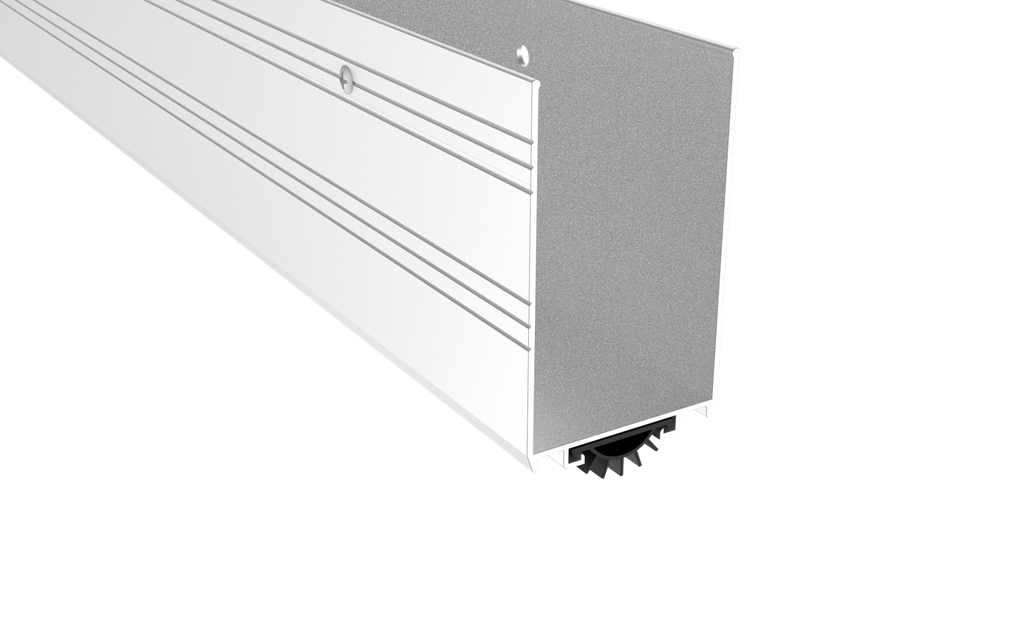

Door shoes are used to seal the area under a door with minimal affect on the appearance of the face of the door. In addition to sealing the gap under the door, door shoes are often used to provide protection for the bottom of the door. Pemko door shoes consist of an aluminum channel with a flexible insert available in Eco-V or PemkoPrene.
Channels are punched with elongated slots for easy adjustment.
This door shoe is supplied with a Eco-V ("V") insert - item number EV9 (available in gray, black).
Certified Greenguard Gold for Low Chemical Emissions: Certificate 44655
Please request a quote for Optional Finishes: Dark Bronze with Black Eco-V Insert, or Gold Anodized with Black Eco-V Insert. Also, available by quote is the PemkoPrene Insert in lieu of the Eco-V Insert.
PRODUCT APPROVALS:
• 221_V_ has been tested and approved under UL10C for Fire and UL1784 for Smoke.
• BHMA A156.22
• ASTM E-283 for Air Infiltration
• ASTM E-90-97 and ASTM E1408-91 for Sound Control
• Category J and H gaskets for use with classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes without hose stream.
| Length | 36 Inch or 48 Inch |
| Brand | Pemko |
| Insert Material | Vinyl |
| Material Length | 1/2" |
| Housing Length | 3" |
| Bottom Weatherseal Type | Door Bottom |
| Fire Rated | Fire Rated |
| Smoke Rated | Smoke Rated |
| Housing Finish | Aluminum |
| Sound Rated | Sound Rated |
