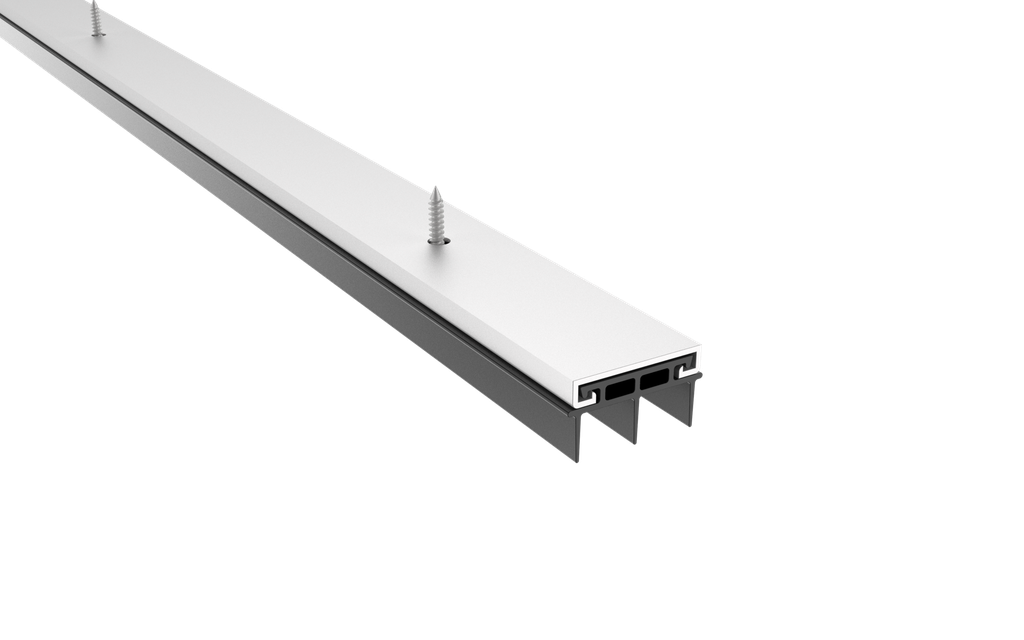

Pemko 2343AV Hospitality Door Bottom Shoe with Vinyl Insert - Aluminum Finish
Pemko 2343AV Hospitality Door Bottom Shoe with Vinyl Insert - Aluminum Finish, 36" or 48" Length
Pemko 2343AV Hospitality Door Bottom Shoe with Vinyl Insert - Aluminum Finish
**** 36" Length in Stock, 48" requires 3-4 Week Lead Time ****
For those seeking precise dimensions, this door shoe offers:
- Width: 1-3/16” (30.2 mm)
- Total Height with Insert: 11/16” (17.5 mm)
This ensures a snug fit and optimal performance for your door needs. With the convenient option of a 36" length readily available and a longer 48" size requiring a short lead time, this versatile door shoe adapts to various requirements while delivering reliable sealing and protection.
• 2343_V door shoes are ideal in any situation where airflow under the door are necessary, but privacy and light leakage are also a concern.
• Door shoes feature a durable aluminum channel and removable Eco-V insert combination. Insert can be easily replaced if necessary. The Eco-V ("V") insert has item number EV94 (available in black)
• Supplied with 1/4" undercut from length ordered, except where otherwise specified. Specify "Net Length" to receive custom measurements as ordered.
• A Notched Fin Vinyl insert is standard which will allow up to 50% free air flow.
• Insert is constructed of soft, pliable black vinyl with an alternate notching pattern, allowing HVAC systems and bathroom fans to circulate air under the door while still blocking light and noise.
• ANSI: R3D414, R3D415
Product Testing
• GreenGuard GOLD Certification – Tested to UL2818 and achieved GOLD certification for low V.O.C. content
• Air Infiltration Tested – Tested to ASTM E-283-04 (2012) for low air leakage allowance; allows no more than 0.3 cfm per square foot at 1.57 psf.
• Sound Tested – Tested to ASTM E90 – 2009 in a single or in multiple sound seal configurations for sound attenuation in an opening
• Smoke Tested – Tested to UL 1784 and meets the requirements of NFPA 105-2013 for smoke leakage in an opening; allows no more than 3.0 cfm per square foot at 0.10” water column (about 75 Pa).
• Fire Rated – Tested to UL10B Standard Fire Tests and UL10C Positive Pressure Fire Tests of Door Assemblies
• BHMA Certified – Tested for performance with regards to the requirements in:
• ANSI/BHMA A156.22 – Door Gasketing and Edge Seal Systems
• Prop 65 – This product contains a chemical known to the state of California to cause cancer:
• Polyvinyl Chloride (PVC) - Eco-V
Please request a quote for Optional Finishes, Insert Material and lengths:
G - Gold Anodized Aluminum
D - Dark Bronze Anodized Aluminum
BSP- Black Suede Powder Coated Aluminum
2343_V door shoes are also available unnotched upon request; add "UN" to the end of the part number (example: 2343AV36UN) when ordering.
What is the Ideal Door Thickness for a Compatible Door Bottom Shoe?
When selecting a door bottom shoe, the thickness of your door plays a crucial role in ensuring a proper fit. For optimal compatibility, your door should measure more than 1.18 inches in thickness. This specification ensures that the door shoe can be securely attached and function effectively.
Why Door Thickness Matters
- Secure Fit: A door shoe that fits snugly prevents drafts, sound, and moisture from passing through gaps.
- Performance: The right thickness ensures the shoe doesn't fall off or create friction when the door swings.
- Durability: A correctly fitted shoe extends the lifespan of both the door and the shoe by minimizing wear and tear.
If your door doesn't meet this minimum thickness, you may need to consider other solutions or modifications to achieve a proper seal.
| Length | 36 Inch or 48 Inch |
| Brand | Pemko |
| Insert Material | Vinyl |
| Material Length | 11/16" |
| Housing Finish | Aluminum |
| Housing Length | 3/16" |
| Fire Rated | Fire Rated |
| Smoke Rated | Smoke Rated |
| Sound Rated | Sound Rated |
| Bottom Weatherseal Type | Door Bottom |
