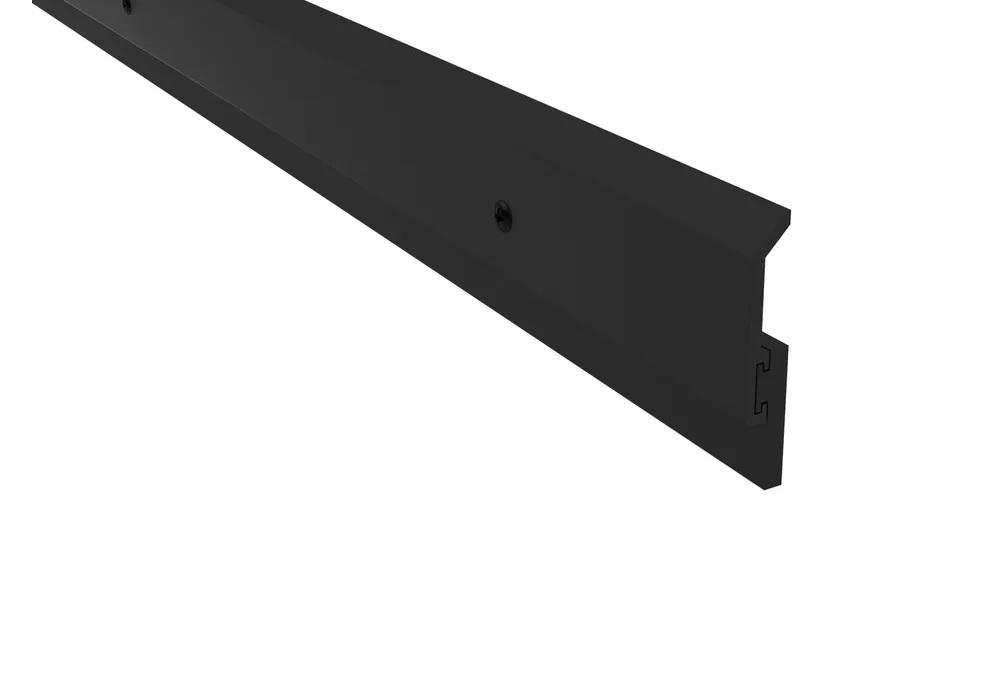

Pemko 315BSPN Sill Sweep with Neoprene Insert - Black Suede Powder Coat
The Pemko 315BSPN is an architectural-grade surface-applied door sweep designed to provide a high-performance seal at the base of your door. It features a heavy-duty Black Suede Powder Coat aluminum housing and a durable Black Neoprene (E315) insert. This sill sweep is engineered to enhance energy efficiency by sealing gaps between 1/8" and 3/8", making it an ideal choice for commercial outswing doors where protection from the elements is critical.
High-Performance & Life Safety Features
- Extreme Temperature Resilience: The neoprene insert operates effectively in a broad temperature range from -75°F to +350°F, ensuring a reliable seal in both extreme cold and high-heat environments.
- Fire and Smoke Certified: Rigorously tested under UL 10C for positive pressure and UL 1784 for smoke leakage, meeting the safety requirements of NFPA 105-2013.
- Superior Sound Attenuation: Sound-tested to ASTM E90 standards, this sweep acts as an effective acoustic barrier to reduce noise transfer beneath the door.
- Weather and Pest Barrier: Effectively blocks drafts, wind-driven rain, and snow while acting as a natural deterrent against insects and small pests.
- Sustainable Choice: Proudly GREENGUARD Gold Certified for low chemical emissions, supporting healthy indoor air quality.
Technical Specifications
- Manufacturer: Pemko (ASSA ABLOY)
- Model: 315BSPN (Black Suede Powder Coat)
- Insert Material: Black Neoprene (E315)
- Dimensions: 1/4" Width | 1-1/4" Profile Height | 1-11/16" Total Height with Insert
- Certifications: BHMA Certified (ANSI/BHMA A156.22), UL 4L10, and Air Infiltration Tested (ASTM E-283-04).
- Installation: Punched with elongated slotted holes for easy vertical adjustment; includes #6 x 5/8" Pan Head SMS.
Pro-Tip for Commercial Installation
The Pemko 315BSPN is best installed on the exterior pull side of an outswing door. For the most effective weather seal, align the sweep so the neoprene insert makes firm contact with the bevel of the threshold rather than the floor. This prevents the seal from dragging while ensuring a tight, draft-free closure. Note that while neoprene is highly durable, it is not recommended for environments with high exposure to gasoline or fuel oils.
| Length | 36 Inch or 48 Inch |
| Brand | Pemko |
| Insert Material | Neoprene |
| Material Length | 7/16" |
| Housing Length | 1-1/4" |
| Housing Finish | Black Suede Powder Coat |
| Bottom Weatherseal Type | Sill Sweep |
| Fire Rated | Fire Rated |
| Smoke Rated | Smoke Rated |
