Pemko 315DN Neoprene Sill Sweep - Dark Bronze

Price:

23.43


Pemko 315CN Neoprene Sill Sweep - Aluminum
Pemko 315CN Neoprene Sill Sweep - Aluminum
17.83
17.83
Pemko 345AV Vinyl Sill Sweep with Rain Drip
Pemko 345AV Vinyl Sill Sweep with Rain Drip
14.69
14.69

Pemko 315DN Neoprene Sill Sweep - Dark Bronze

https://www.doorwaysplus.com/web/image/product.template/1824/image_1920?unique=e576436

Pemko 315DN Neoprene Sill Sweep, Dark Bronze Finish, Black Neoprene Insert, 36" and 48" Lengths

23.43 23.43 USD 23.43

23.43

Not Available For Sale


  • Length
  • Brand
  • Insert Material
  • Material Length
  • Housing Length
  • Housing Finish
  • Bottom Weatherseal Type
  • Fire Rated
  • Smoke Rated

This combination does not exist.


Share :

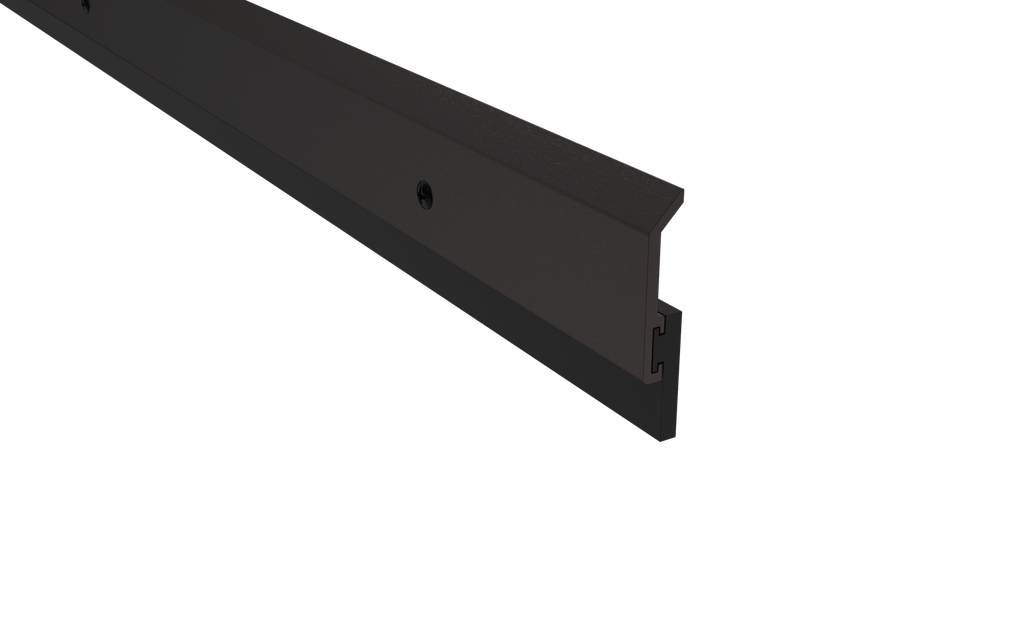

Pemko 315DN Neoprene Sill Sweep - Dark Bronze Anodized Aluminum, Black Neoprene Insert

Door sweeps are surface applied to the face of a door. They are commonly used on the exterior of outswing doors. Door sweep channels are available in several styles with materials based on your application. The inserts for door sweeps allow customers to choose from Eco-V, neoprene, nylon brush and pile depending on the application.

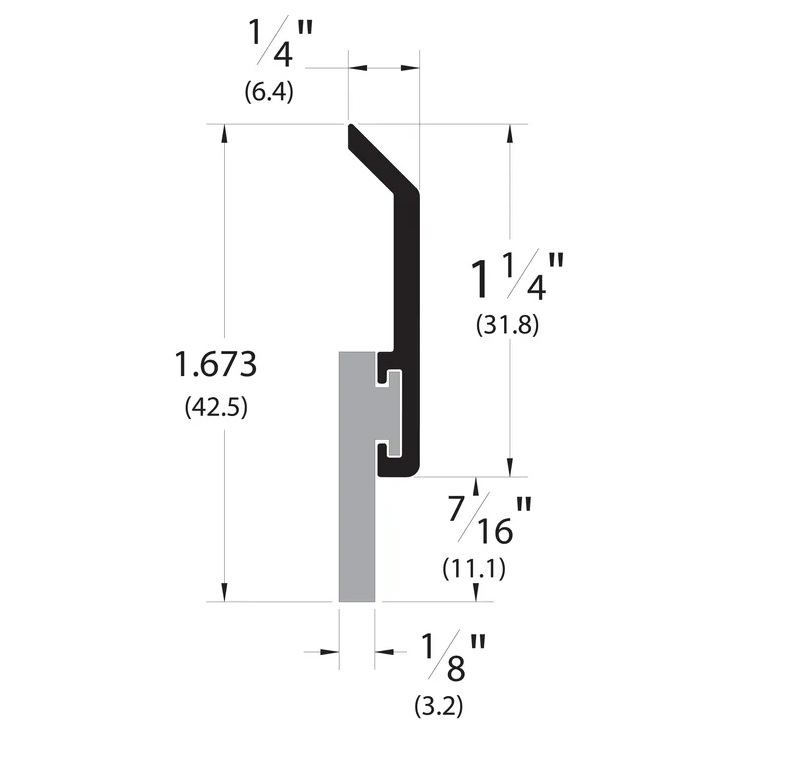

WIDTH: 1/4" (6.4 mm)
PROFILE HEIGHT: 1-1/4" (31.8 mm)
TOTAL HEIGHT WITH INSERT: 1-11/16" (42.9 mm)



(Double click to enlarge)

Please request a quote for Optional Finishes or Gray Neoprene Insert:
B - Mill Finish Brass Extruded Bronze (Brass) with Black Neoprene insert
G - Gold Anodized Aluminum with Black Neoprene insert
BDG - Bright Dip Clear Anodized with Black Neoprene insert
PW - Painted White Aluminum with Black Neoprene insert
SN - Satin Nickel Anodized Aluminum with Black Neoprene insert
SS - #4 Finish Stainless Steel with Black Neoprene insert

PRODUCT APPROVALS:
• 315_N has been tested and approved under UL10C for Fire and UL1784 for Smoke.
• BHMA A156.22
• ASTM E-283 for Air Infiltration
• Sound Tested - ASTM E90-2009
• Category J and H gaskets for use with classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes without hose stream.


Length 36 Inch or 48 Inch
Brand Pemko
Insert Material Neoprene
Material Length 7/16"
Housing Length 1-1/4"
Housing Finish Dark Bronze
Bottom Weatherseal Type Sill Sweep
Fire Rated Fire Rated
Smoke Rated Smoke Rated
