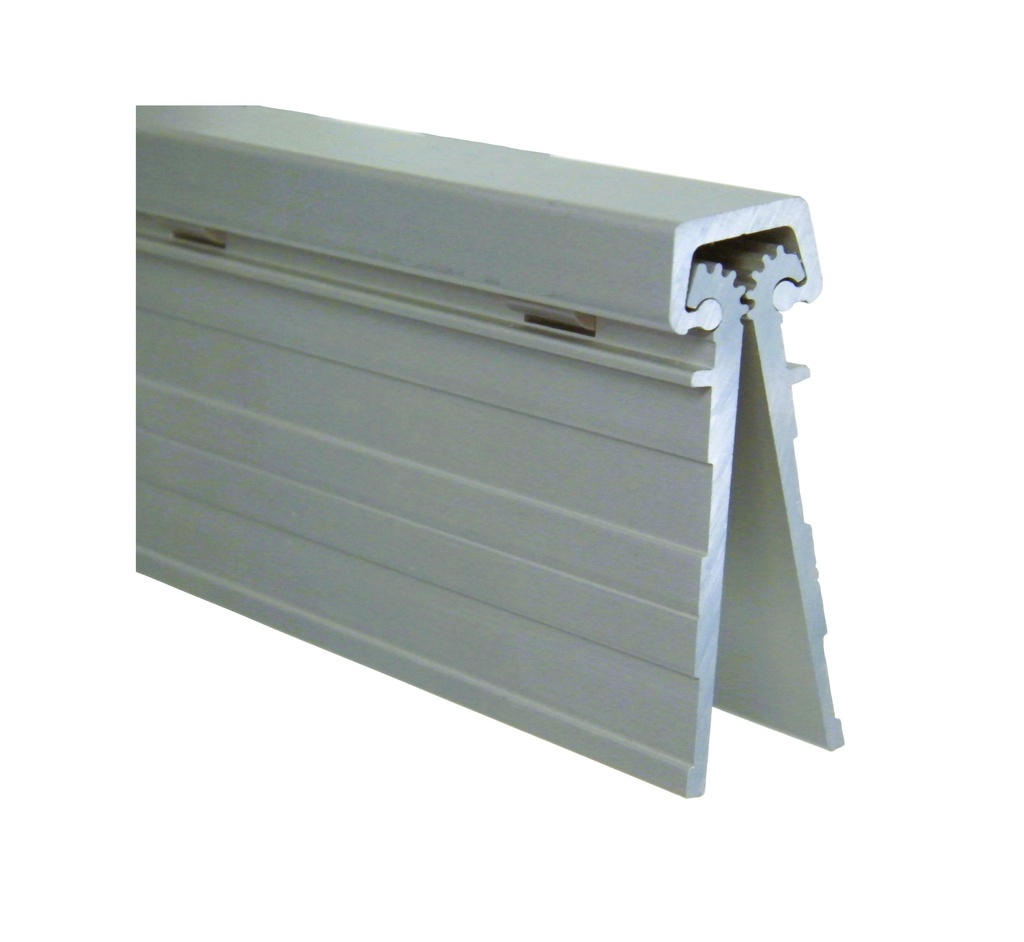

Pemko DSPFMSLI-HD1 Special Full Mortise Short Leaf Inset Continuous Geared Hinge Heavy Duty Dark Bronze Anodized 83/95"
Lead time: 10 Working Days (made-to-order)
Pemko DSPFMSLI-HD1 Special Full Mortise Short Leaf Inset Continuous Geared Hinge -- Dark Bronze Anodized
The Pemko DSPFMSLI-HD1 is a heavy-duty Full Mortise Continuous Geared Hinge in a Dark Bronze Anodized finish, engineered for the full height of the door. This model features a Special Full Mortise short-leaf inset profile for special-prep hollow metal frame openings. Its continuous geared aluminum construction distributes door weight evenly along the entire edge, eliminating the sag and wear points of conventional butt hinges on high-frequency openings.
- Type: Special Full Mortise Short Leaf Inset continuous geared hinge (aluminum)
- Grade: Heavy Duty (HD1), 3 in. bearing spacing
- Finish: Dark Bronze Anodized
- Available lengths: 83 in, 95 in
- Application: Concealed, full-mortise mounting on aluminum, hollow metal, or wood doors
Available made-to-order in custom lengths up to 96 in -- contact us for a cut length between the standard sizes.
Lead time: 10 Working Days (made-to-order). Made to order -- not a stocked quick-ship item.

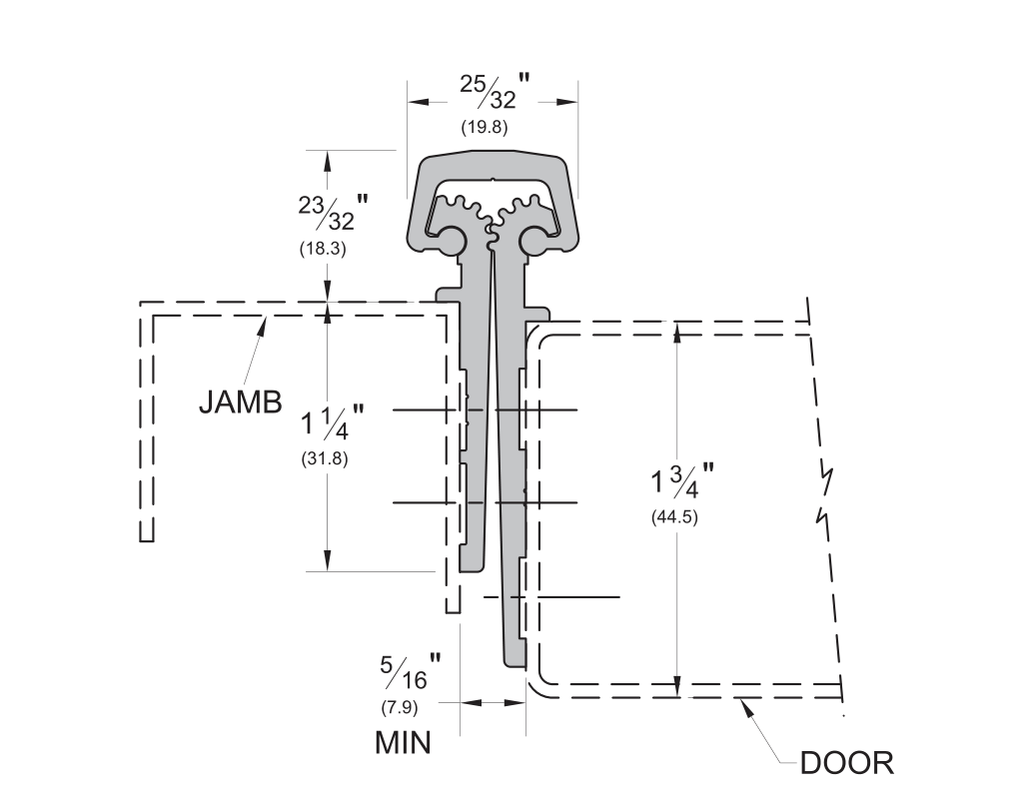

Documentation
| Length | 83 Inch or 95 Inch |
| Brand | Pemko |
| General - US Finishes | 313 - Dark Bronze Anodized |
| Hinge Type | Full Mortise, Continuous Hinge |
| Continuous Hinge Grade | Heavy Duty |
