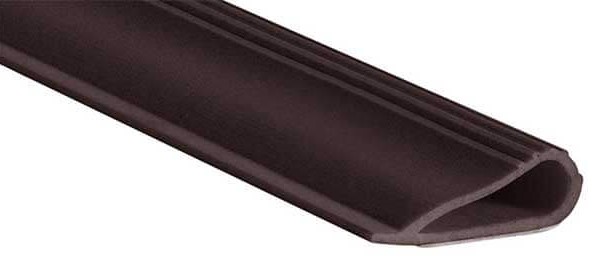

Pemko PK55D Silicone Seal Perimeter Fire/ Smoke Gasketing, Dark Brown
Pemko PK55D Silicone Seal Perimeter Fire/ Smoke Gasketing, Dark Brown
Pemko PK55D Silicone Seal Perimeter Fire/ Smoke Gasketing, Dark Brown
PemkoPrene® Adhesive Perimeter Gasketing
- Excellent resistance to compression set, particularly at elevated temperatures and for extended periods of time.
- Stays flexible between -40 degrees (F) and 250 degrees (F) with very high resistance to flex fatigue.
- Outstanding ozone resistance rating.
- Smoke tested in accordance with UL1784-01; meets the requirements of NFPA 105 "Standard for the Installation of Smoke Door Assemblies and Other Opening Protectives".
- Designed for tighter frames.
- Demonstrates extremely low closing force.
- Seal begins compressing at 3/16"; compresses to seal up to a 1/16" gap.
- Available in black (BL), dark brown (D) or white (W).
- PK55 is available in 17, 18, 20, 21, 25 and 510 ft. coils.
- Category H - Gasketing - Smoke and draft control for positive pressure openings.
- Category H gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes without hose stream. When applied to the door and frame assembly in accordance with the manufacturers installation instruction, the assembly will comply with UBC 7-2 (1997) part II.
- Category J - Doors - gasketing that has been tested on a positive pressure fire door and frame but is not required for the door to obtain its fire door rating. Category J gasketing does not negatively affect the rating on a positive pressure door.
- Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes.
Ratings
Air Infiltration Tested
Intertek Testing (Warnock Hersey)
BHMA Certified
Smoke Tested - UL1784
Fire Rated - UL10C - Positive Pressure
Underwriters Laboratory 4L10
GREENGUARD Gold Certified
| Gasketing Set Size | 17 ft Roll or 20 ft Roll |
| Brand | Pemko |
| Gasketing Finish | Dark Brown |
| Mounting Type | Adhesive Applied |
| Fire Rated | Fire Rated |
| Smoke Rated | Smoke Rated |
| Insert Material | Silicone |
| Weatherstripping Type | Perimeter Gasketing |
Pemko PK55 Perimeter Seal Installation Instructions
Download
