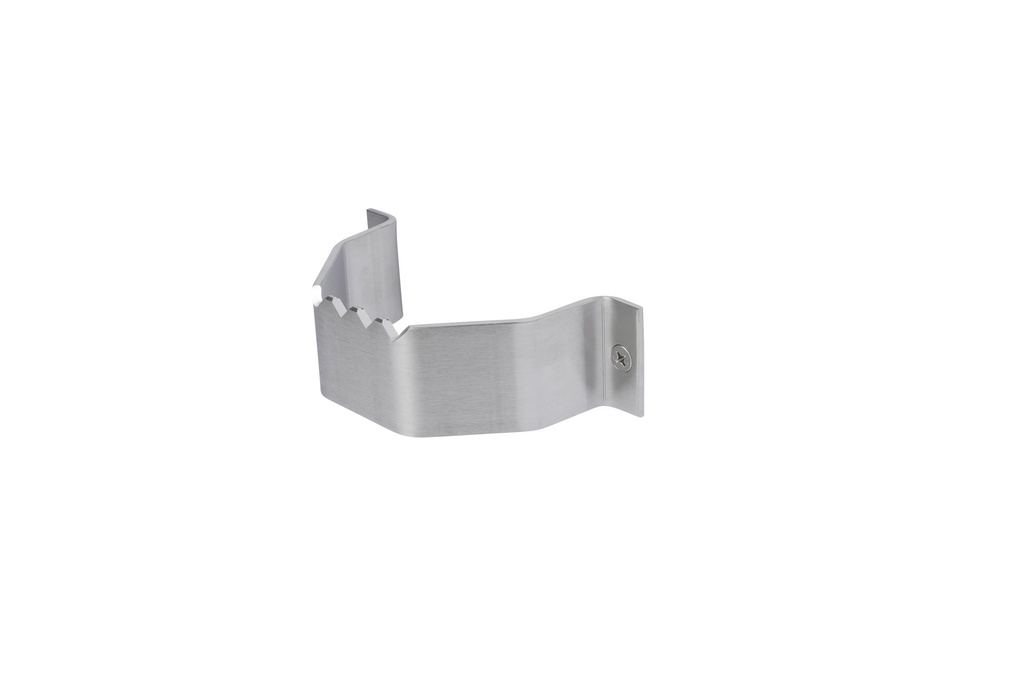

Rockwood FP1230 Hands-Free Foot Pull | US32D Satin Stainless Steel

Rockwood FP1230 Hands-Free Foot Pull | US32D Satin Stainless Steel

The Rockwood FP1230 is a rugged, ergonomic solution for modern facility hygiene. As a key component of the Safer2Open™ continuum by ASSA ABLOY, this foot pull allows users to open doors without touching handles, significantly reducing the spread of germs. Engineered from 3/16" thick solid stainless steel, the FP1230 is built to withstand the heavy-duty use of high-traffic public environments while maintaining a sleek, professional appearance.

Dual-Action Ergonomics & Hygienic Design

• Versatile Operation: The unique curved design supports two distinct opening movements:

  1. Top Grip: Step on the top edge and pull the door open with your sole.
  2. Toe Pull: Slide your toe underneath the bottom lip to pull the door toward you.
• Safer2Open™ Technology: Part of a comprehensive line of low-touch and touchless hardware designed to create a safer, more sanitary environment for employees and the public.

• Heavy-Duty Construction: Forged from solid stainless steel with a 3/16" material thickness, ensuring the pull will not bend or break under aggressive use.

• High Clearance: Features a 3-1/16" pull clearance and a 3-1/4" projection, making it easy to engage even with heavy work boots or specialized footwear.

• Sustainable Finish: The US32D Satin Stainless Steel finish is naturally corrosion-resistant and easy to sanitize with standard industrial cleaning agents.

Technical Specifications

• Model: Rockwood FP1230
• Base Material: Stainless Steel
• Finish: US32D (Satin Stainless Steel)
• Material Thickness: 3/16"
• Projection: 3-1/4"
• Pull Clearance: 3-1/16"
• Center-to-Center: 6"
• Fasteners: 1/4-20 x 1" Flat Head Machine Screw thru bolts (included)

The Rockwood FP1230 is a "must-have" for post-pandemic facility upgrades. For the most secure installation on hollow metal or high-traffic wood doors, the included thru bolts are essential. They provide a permanent, "sandwich-style" grip through the door that prevents the hardware from loosening or pulling out over time due to the leverage applied by foot operation.

Installation Note: We recommend mounting the FP1230 approximately 1/8" to 1/4" from the bottom of the door. This ensures it is low enough for easy toe access while maintaining enough clearance to prevent the hardware from dragging on the floor or catching on high-pile commercial mats.
