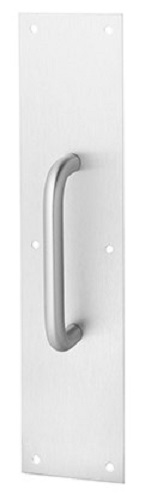

Rockwood 102 x 70B Pull Plate | 3.5" x 15" Satin Stainless Steel
The Rockwood 102 x 70B Pull Plate is a heavy-duty architectural hardware set designed for the most demanding commercial environments. By integrating a solid stainless steel pull handle with a 3.5" x 15" push plate, this unit protects the door's finish from high-frequency contact while providing a secure, comfortable grip. Engineered with Type 1 thru-bolt mounting, it offers superior strength that won't pull loose over time.
Industrial Strength & Barrier-Free Design
- Heavy-Duty Construction: Features a 5/8" diameter solid pull and a .050" thick stainless steel plate, meeting ANSI A156.6 (J405) standards for architectural grade durability.
- Corrosion-Resistant US32D Finish: The Satin Stainless Steel finish is naturally resistant to oxidation and harsh cleaning chemicals, making it perfect for hospitals, labs, and schools.
- Secure Thru-Bolt Mounting: Includes 1/4-20 x 2-1/4" thru bolts and finish washers, ensuring a permanent and rock-solid installation on standard 1-3/4" thick doors.
- Ergonomic Clearance: Provides a standard 1-1/2" clearance for a comfortable grip. Note: 2-1/2" Barrier Free clearance is available by quote for ADA-specific high-clearance needs.
Technical Specifications
- Model: Rockwood 102 x 70B
- Plate Size: 3.5" x 15"
- Pull Handle CTC: 5-1/2" (Center-to-Center)
- Overall Length: 6-1/4"
- Material Size: 5/8" Diameter Solid Bar
- Fasteners: Type 1 Thru Bolt & Finish Washer (Included)
- Application: Ideal for single-side mounting. Not intended for back-to-back applications.
| Brand | Rockwood |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Plate Height | 15" |
| Plate Width | 3.5" |
| Center to Center Distance | 5-1/2" |
| Pull Handle Overall Length | 6-1/4" |
| Pulls Mounting Types | Type 1 - Thru Bolt |
| Handle Diameter | 5/8" |
| Door Thickness | 1-3/4" Dr Thickness |
