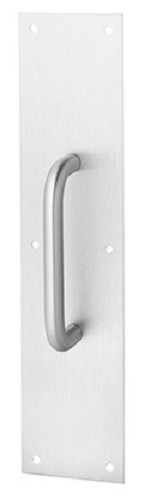

Rockwood 102 x 70C Pull Plate US32D - Stainless Steel
Solid Pull Handle, Base Material: Stainless Steel
Fastener: 1/4 -20 x 2-1/4 Thru Bolt & Finish Washer (standard 1-3/4" door)
Mounting Type: Type 1
Material Size: 5/8" dia.
CTC: 5 1/2"
Overall: 6 1/4"
Base diameter: 5/8"
Clearance: 1 1/2" (Barrier Free - 2-1/2" Clearance - Available by quote only)
Push plate size: 4" x 16" x 0.050 Stainless Steel
ANSI A156.6: J405
*** Pull Plate shown is not intended for Back-to-Back mounting. Please contact us for a quote if this is your application ***
| General - US Finishes | 630 - Satin Stainless Steel/ US32D |
| Brand | Rockwood |
| Plate Height | 16" |
| Plate Width | 4" |
| Pull Handle Overall Length | 6-1/4" |
| Center to Center Distance | 5-1/2" |
| Pulls Mounting Types | Thru Bolt |
| Diameter | 5/8" |
| Door Thickness | 1-3/4" Dr Thickness |
