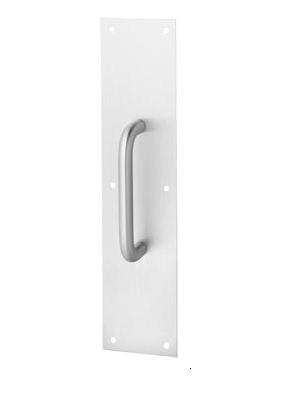

Rockwood 107 x 70B 32D Pull Plate | 8" CTC Stainless Steel
The Rockwood 107 x 70B Pull Plate is a premium architectural hardware set designed for heavy-duty commercial use. By integrating a 3/4" diameter solid pull handle with an 8" center-to-center (CTC) spread and a 3.5" x 15" push plate, this unit provides an oversized, comfortable grip while shielding the door face from impact and scratches. Featuring Type 1 thru-bolt mounting, it ensures a rock-solid installation that won't loosen over time.
Industrial Strength & Performance Features
- Extended 8" Grip Area: The longer 8-inch CTC pull handle offers a more substantial grabbing surface, making it ideal for large commercial doors and high-frequency entryways.
- Superior Thru-Bolt Stability: Includes 1/4-20 x 2-1/4" thru bolts and finish washers, providing a secure, permanent anchor through standard 1-3/4" thick doors.
- Corrosion-Resistant Stainless Steel: Forged from high-quality stainless steel, this set is naturally resistant to wear, oxidation, and the harsh chemicals used in daily sanitization.
- ANSI/BHMA Certified: Meets ANSI A156.6: J405 standards, the benchmark for quality and durability in hospitals, schools, and government buildings.
Technical Specifications
- Model: Rockwood 107 x 70B
- Plate Size: 3.5" Wide x 15" High (.050" thick)
- Pull Handle CTC: 8" (Center-to-Center)
- Material Size: 3/4" Diameter Solid Bar
- Projection: 2-1/4"
- Clearance: 1-1/2"
- Mounting Type: Type 1 Thru-Bolt (Single-side application)
| Brand | Rockwood |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Plate Height | 15" |
| Plate Width | 3.5" |
| Pull Handle Overall Length | 8-3/4" |
| Center to Center Distance | 8" |
| Pulls Mounting Types | Type 1 - Thru Bolt |
| Diameter | 3/4" |
| Door Thickness | 1-3/4" Dr Thickness |
