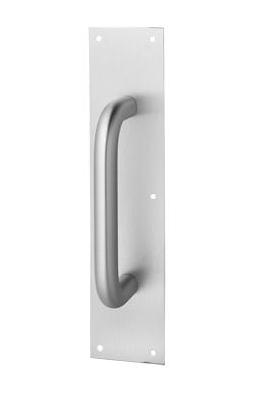

Rockwood 110 x 70B Pull Plate | 1" Round Pull & 3.5" x 15" Plate
The Rockwood 110 x 70B Pull Plate is a premium architectural hardware solution engineered for both interior and exterior commercial doors. This set pairs a massive 1" diameter solid round pull with a 3.5" x 15" protective push plate. Designed to withstand the rigors of high-traffic facilities like hospitals, transit hubs, and schools, the 110 x 70B provides a substantial grip and superior door surface protection.
Industrial Strength & Ergonomic Design
- Heavy-Duty 1" Round Pull: The oversized 1-inch diameter handle provides a comfortable, secure grip and a modern aesthetic that stands out in professional environments.
- Extended 8" CTC Spread: The 8-inch center-to-center mounting provides a balanced look on full-sized commercial doors and offers plenty of leverage for heavy door leaves.
- Beveled Safety Edges: The .050" thick stainless steel plate is manufactured with four precision-beveled edges, ensuring a smooth, snag-free transition against the door face.
- Thru-Bolt Stability: Utilizes Type 1 thru-bolt mounting (1/4-20 bolts) to create a permanent, high-strength connection through the door that surface-mounted screws cannot match.
Technical Specifications
- Model: Rockwood 110 x 70B
- Plate Size: 3.5" Wide x 15" High
- Pull Handle CTC: 8" (Center-to-Center)
- Pull Diameter: 1" Solid Round Bar
- Projection / Clearance: 3" Projection with a generous 2" hand clearance.
- Material: US32D Satin Stainless Steel
- ANSI/BHMA Certified: Meets ANSI A156.6: J405 standards.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Brand | Rockwood |
| Plate Height | 15" |
| Plate Width | 3-1/2" |
| Pull Handle Overall Length | 9" |
| Center to Center Distance | 8" CTC |
| Pulls Mounting Types | Type 1 - Thru Bolt |
| Diameter | 1" |
| Door Thickness | 1-3/4" Dr Thickness |
