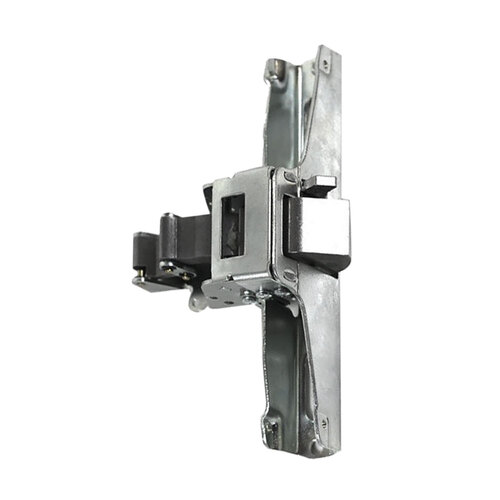

Corbin Russwin 650F35-8 Latch Assembly - For ED5200 Series
The Corbin Russwin 650F35-8 is a genuine OEM Active Head Latch Assembly (also known as the chassis) specifically designed for the ED5200 Series Rim Exit Devices. As the mechanical "heart" of the device, this assembly contains the critical spring-loaded latchbolt and internal timing mechanisms that secure the door. Engineered for the high-demand environments of universities, hospitals, and corporate offices, the 650F35-8 ensures your panic hardware maintains its Grade 1 certification and provides life-safety-compliant egress with every use.
Institutional Grade Features
- ED5200 Series Precision: The factory-standard replacement chassis for the ED5200 Rim Exit Device, ensuring perfect mechanical synchronization between the pushpad and the strike.
- Parts List Accuracy: Identified as Item #1 in the official ED5200 technical parts manual and exploded view diagrams.
- Non-Fire Rated Optimization: Built specifically for Panic-Rated (Non-Fire) applications, featuring the internal architecture required to support manual hex-key dogging for "passage mode" functionality.
- Field Reversible Handing: Designed for maximum versatility, the assembly can be field-configured for both Right Hand Reverse (RHR) and Left Hand Reverse (LHR) door swings.
- High-Strength Latchbolt: Features a 3/4" throw stainless steel pullman-type latchbolt with a deadlocking feature to resist forced entry and tampering.
Technical Specifications
- Manufacturer: Corbin Russwin (ASSA ABLOY)
- Model Number: 650F35-8 (also referenced as G650F35-8)
- Compatible Series: ED5200 Rim Exit Devices
- Part Type: Active Head / Latch Assembly / Chassis
- Application: Non-Fire Rated (Panic Hardware)
- Handing: Non-handed (Field Reversible)
| Brand | Corbin Russwin |
| Series | Corbin Russwin - ED5200 Series |
| Part Type | Chassis Assembly |
| Fire Rated | Non-Rated |
