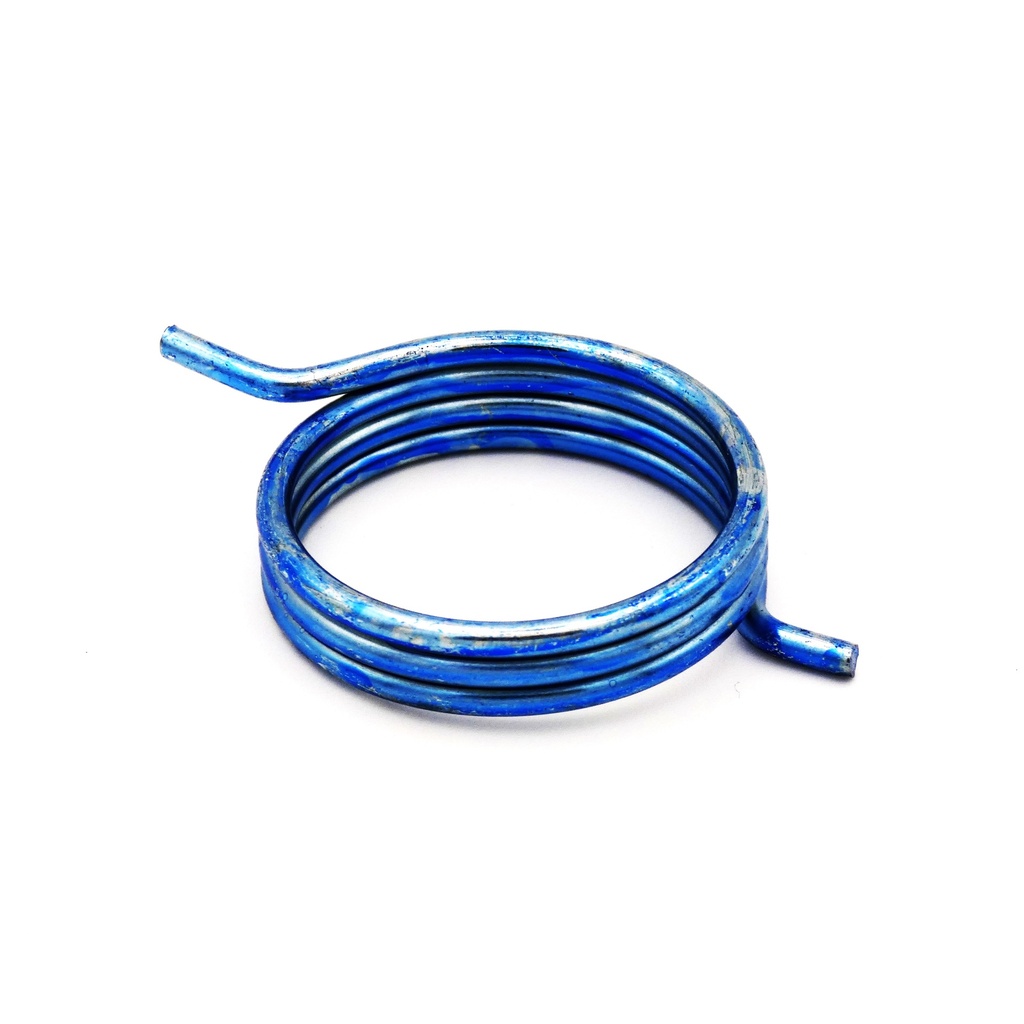

Corbin Russwin 651F62-8 Lever Return Spring - Blue (RHR)
The Corbin Russwin 651F62-8 is a genuine OEM Lever Return Spring designed specifically for the exterior lever trims of ED4000 and ED5000 Series exit devices. Color-coded Blue to indicate its Right Hand Reverse (RHR) orientation, this high-tension spring is responsible for returning the lever handle to its horizontal position after it has been depressed. It is the primary repair part for fixing sagging or "droopy" handles on heavy-duty commercial exit device trim.
Institutional Grade Features
- ED4000/ED5000 Trim Integration: The factory-authorized replacement spring for Corbin Russwin's flagship exterior lever trims.
- Function Specificity: Specifically engineered for use with high-traffic outside lever functions, including:
- 910: Passage Function
- 950: Dummy Function
- 955: Classroom Function
- 959: Storeroom Function
- Parts List Accuracy: Identified as Item #18 (page 15) in the official ED4000/ED5000 technical parts manual.
- RHR Orientation (Blue): Precision-coiled for Right Hand Reverse doors, providing the specific clockwise or counter-clockwise torque required for RHR mechanics.
- Fatigue-Resistant Steel: Manufactured from heat-treated spring steel to ensure consistent "snap-back" over hundreds of thousands of cycles.
Technical Specifications
- Manufacturer: Corbin Russwin (ASSA ABLOY)
- Model Number: 651F62-8
- Color Code: Blue (Right Hand Reverse - RHR)
- Compatible Series: ED4000, ED5000, ED4200, ED5200 Trims
- Compatible Functions: 910, 950, 955, 959
| Brand | Corbin Russwin |
| Series | Corbin Russwin - ED4200 Series, Corbin Russwin - ED5200 Series |
| Part Type | Spring, Outside Trim Part |
Corbin Russwin ED4000_ED5000 Exit Device Parts Diagrams 45255.pdf
