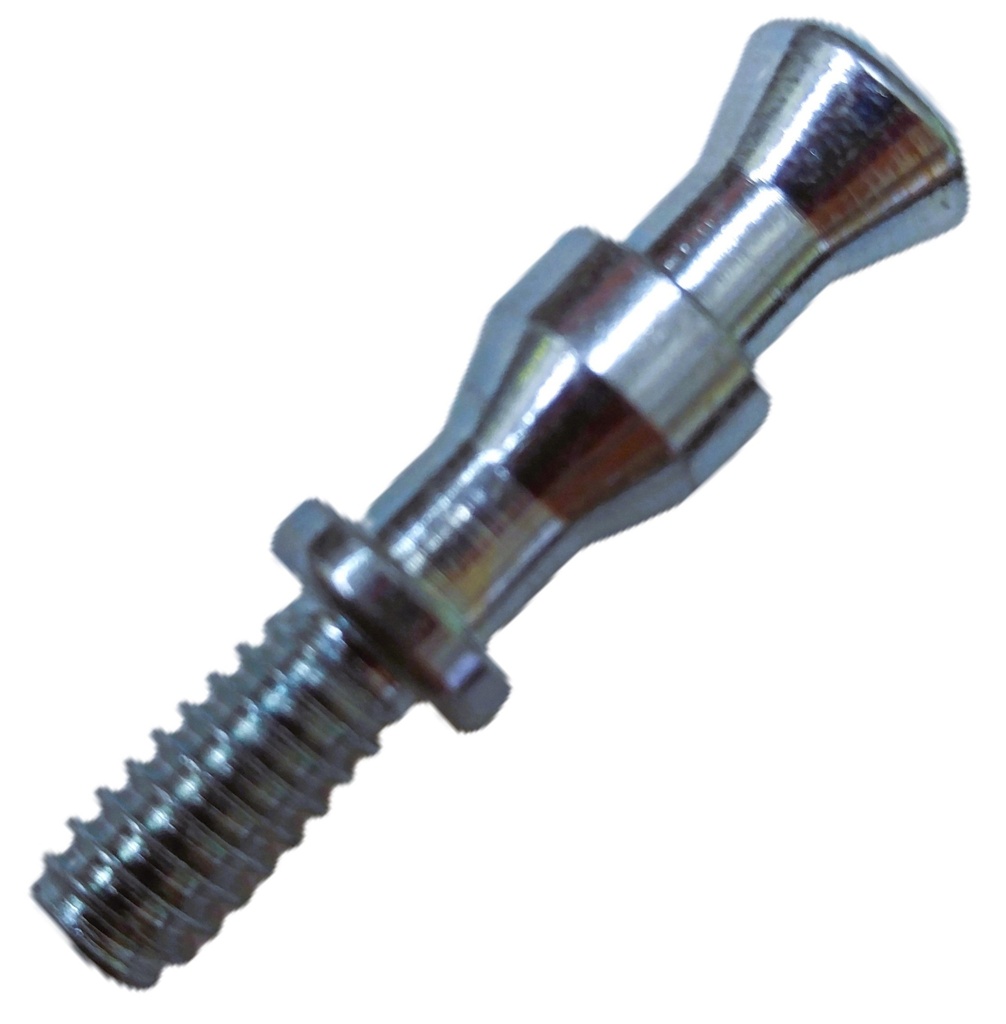

Rockwood SP1051 Double Cone Head Machine Screw | 1/4-20 x 1/2"
The Rockwood SP1051 is a precision-engineered double cone head machine screw designed specifically for Type 17 and Type 17R concealed mounting systems. This fastener is used on the "free ends" of 1" diameter architectural push/pull bars and handles to provide a secure connection without visible exterior hardware. Crafted for standard-duty applications, it ensures your door pulls remain firmly attached while maintaining a clean, high-end aesthetic.
Precision Engineering for Concealed Hardware
- Type 17 & 17R Compatibility: This is the primary replacement screw for Rockwood’s concealed mounting sets. It is essential for securing the ends of 1" diameter bars where a clean, fastener-free appearance is required.
- Double Cone Head Design: The unique double-tapered head is designed to seat perfectly within the handle’s mounting bracket, providing a stable, non-wobble connection.
- Standard Duty Reliability: Engineered for standard commercial use, this Phillips head screw allows for easy installation and maintenance with common tools.
- Architectural Seamlessness: By utilizing a concealed mount, this screw helps achieve the "floating" handle look preferred in modern office buildings, retail storefronts, and high-end residential entries.
Technical Specifications
- Model: Rockwood SP1051
- Mounting Type: Type 17 or 17R (Concealed)
- Thread Size: 1/4-20
- Thread Length: 1/2"
- Overall Length: 1-1/2"
- Head Type: Phillips Drive Double Cone Head
- Application: Free ends of 1" Diameter Push/Pull Bars
| Brand | Rockwood |
| Thread Pattern | 1/4-20 |
| Screw Type | Double Cone Head |
