Sargent 68-1184 Guide Pin — Genuine OEM Replacement for Sargent 80 Series Exit Devices

The Sargent 68-1184 is a genuine OEM guide pin engineered as a direct replacement component for the Sargent 80 Series exit device family. When an exit device guide pin wears, breaks, or goes missing, the push bar or cross bar assembly can lose proper alignment, resulting in inconsistent or failed latching. Sourcing the factory-original Sargent part — not an aftermarket substitute — ensures correct fitment, dimensional accuracy, and restored device performance without the guesswork of third-party alternatives.

Institutional Grade Features & Benefits

• Genuine OEM Part: Manufactured by Sargent to the exact tolerances of the original 80 Series exit device design, ensuring a true drop-in replacement with no modification required.
• Correct Alignment & Function: The guide pin maintains proper mechanical alignment of internal exit device components, supporting reliable push-bar operation and consistent latch retraction cycle after cycle.
• Targeted 80 Series Compatibility: Verified for use with a specific range of 80 Series exit device models, allowing facilities managers, locksmiths, and door hardware technicians to order with confidence.
• Cost-Effective Repair vs. Full Replacement: Replacing a worn or broken guide pin at the component level restores exit device operation at a fraction of the cost of replacing the entire exit device.
• Ideal for Preventive Maintenance Programs: Keeping OEM replacement pins on hand minimizes exit device downtime in schools, hospitals, commercial buildings, and institutional facilities where life-safety egress hardware must remain fully operational.

Compatible Sargent 80 Series Exit Device Models

The Sargent 68-1184 guide pin is compatible with the following Sargent 80 Series exit device models: 8706, 8710, 8713, 8715, 8740, 8743, 8746, 8773, 8774. Always verify the full model designation on the device label before ordering to confirm compatibility.

Technical Details

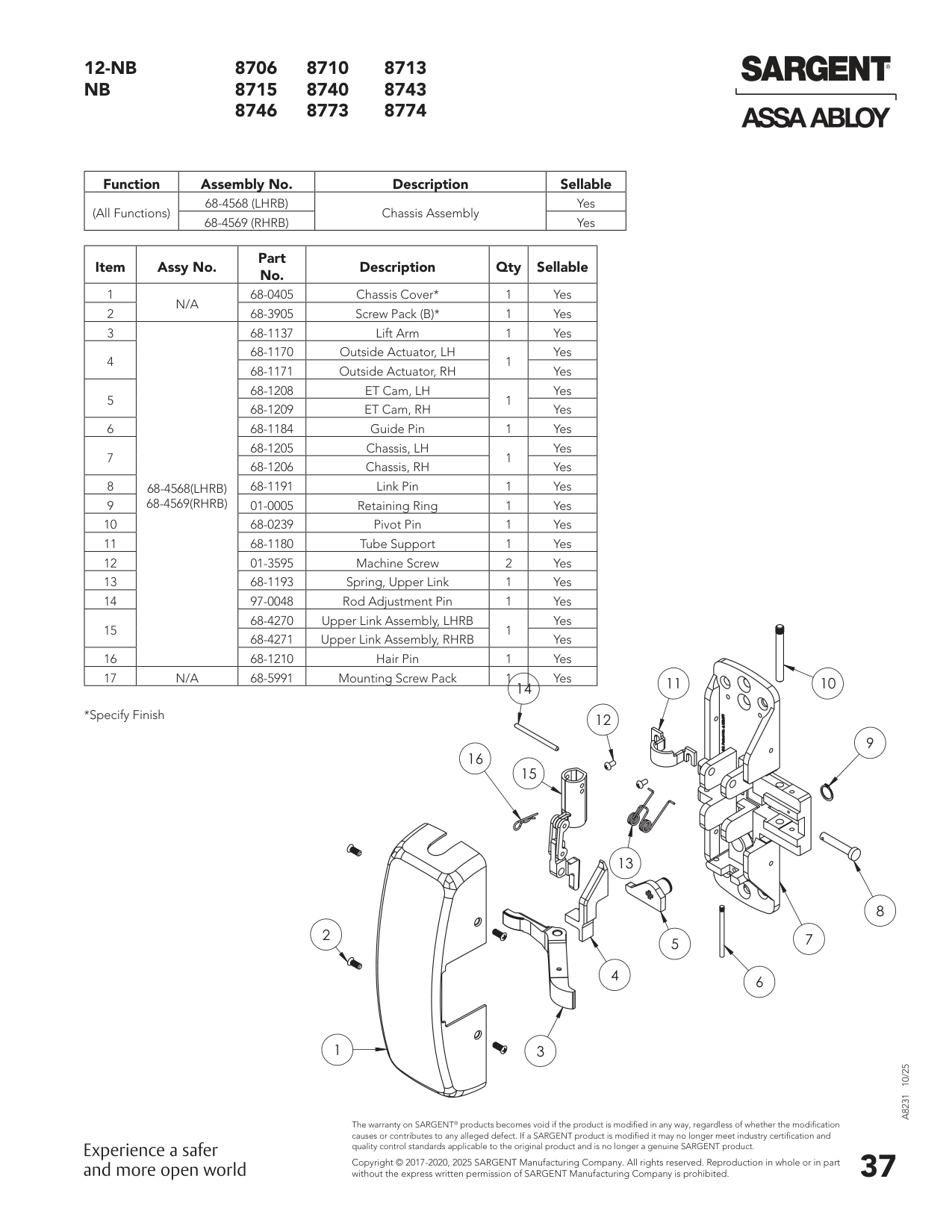

Parts List Illustration
