Sargent 68-2204 Chassis Assembly for 8762 & 8763 Exit Devices — 80 Series, LHRB

The Sargent 68-2204 is a genuine OEM chassis assembly (less cover) engineered for the Sargent 80 Series exit device line. Specifically compatible with the 8762 and 8763 exit device models, this chassis assembly serves as the core operating mechanism that makes the exit device function. When the push bar is depressed, the push rail transfers that force directly to this chassis, which in turn retracts the latch bolt to allow controlled egress through the door. This replacement part is handed LHRB (Left Hand Reverse Bevel). Keeping a genuine Sargent chassis assembly on hand minimizes downtime and ensures the exit device continues to perform to its original design specification.

Institutional Grade Features & Benefits

• Genuine OEM Replacement: Sourced directly from Sargent, ensuring fit, finish, and mechanical performance consistent with the original 80 Series exit device assembly.
• Core Operating Mechanism: Functions as the heart of the exit device — when the push rail is activated, this chassis translates that force into latch retraction for reliable, code-compliant egress.
• Model-Specific Compatibility: Engineered to precise tolerances for the Sargent 8762 and 8763 exit device models within the 80 Series product family, reducing guesswork during service or repair.
• LHRB Handing: Designated for Left Hand Reverse Bevel door applications; see handing diagram accompanying this listing.
• Less Cover Configuration: Supplied as a chassis assembly without the cover, ideal for field replacements where the existing cover is retained or replaced separately.
• Reduced Downtime: A direct-replacement chassis assembly simplifies maintenance on high-traffic commercial and institutional doors equipped with Sargent 80 Series exit devices.

Technical Specifications

• Compatible Exit Device Models: Sargent 8762, 8763
• Series Compatibility: Sargent 80 Series exit devices
• Handing: LHRB
• Cover: Less cover (chassis only)

Technical Details

Door Handing Reference

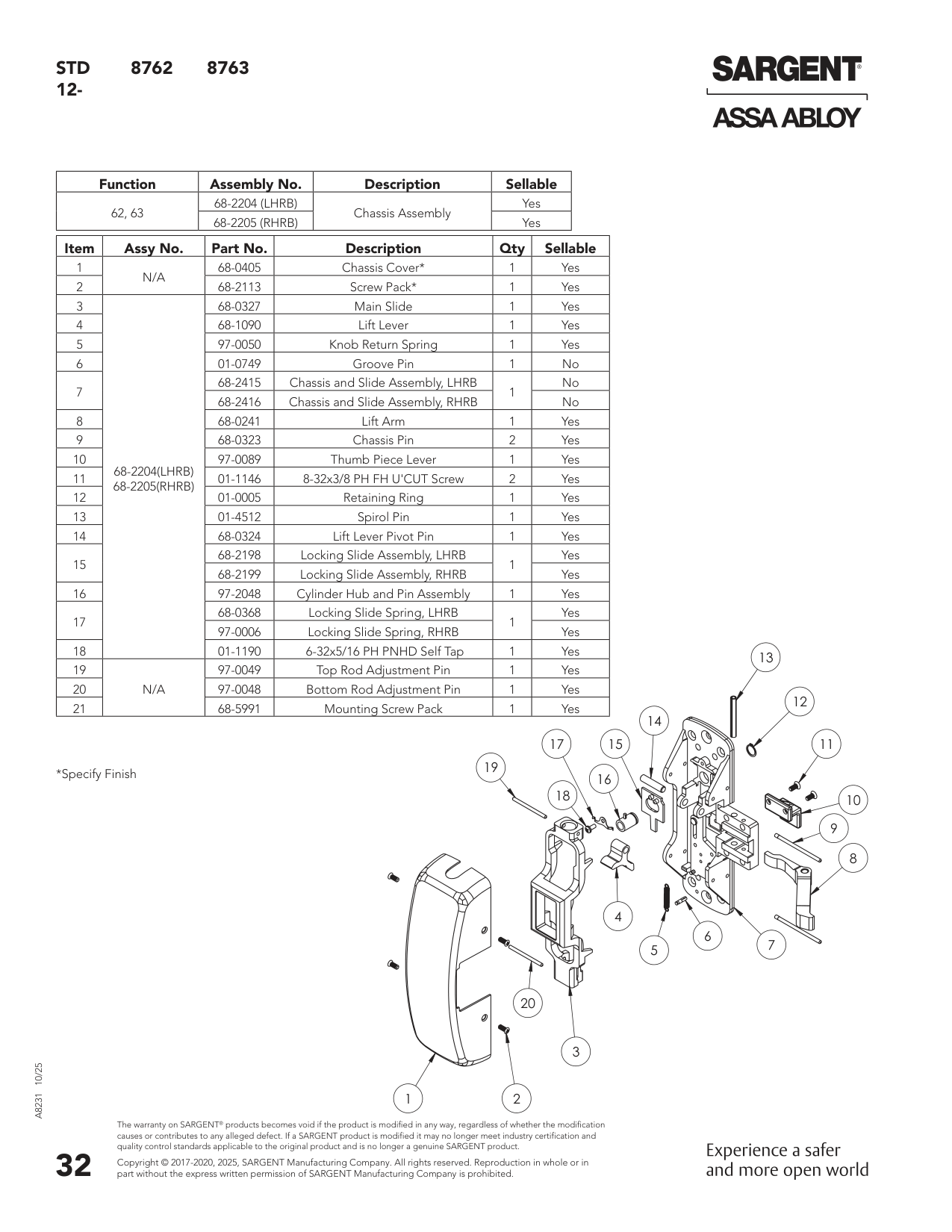

Parts List Illustration
