Sargent 68-2344 Chassis Pack — 80 Series Exit Device Chassis Assembly (RHRB)

The Sargent 68-2344 is a genuine OEM chassis assembly — also referred to as a chassis pack — engineered as the core operating mechanism for the Sargent 80 Series exit device. When the push bar is pressed, the push rail transfers that force directly to this chassis, which retracts the latch to permit egress. This replacement chassis pack is handing-specific: RHRB (Right Hand Reverse Bevel). Compatible exit device model: 12-8866 (Fire-Rated).

Institutional Grade Features & Benefits

• Genuine Sargent OEM Part: Manufactured to the exact tolerances of the original 80 Series chassis, ensuring reliable, code-compliant performance without guesswork.
• Core Egress Mechanism: Functions as the central operating chassis that receives push-bar force via the push rail and retracts the latch — the critical action enabling safe, reliable egress.
• Fire-Rated Device Compatible: Specifically validated for use with the 12-8866 fire-rated 80 Series exit device, supporting life-safety and building code requirements.
• Precise Handing — RHRB: Factory-configured for Right Hand Reverse Bevel applications; a handing diagram accompanies the listing for installation reference.
• Targeted Replacement Solution: Restores exit device function without requiring full device replacement, minimizing downtime and cost on institutional, commercial, and educational door openings.
• 80 Series Platform: Designed exclusively for the Sargent 80 Series exit device line, maintaining platform integrity and simplifying parts management.

Technical Specifications

• Compatible Exit Device Model: 12-8866 (Fire-Rated)
• Series Compatibility: Sargent 80 Series
• Handing: RHRB (Right Hand Reverse Bevel)
• Part Type: Chassis Assembly (Chassis Pack)
• Product Class: Exit Device Component
• Brand: Sargent

Technical Details

Door Handing Reference

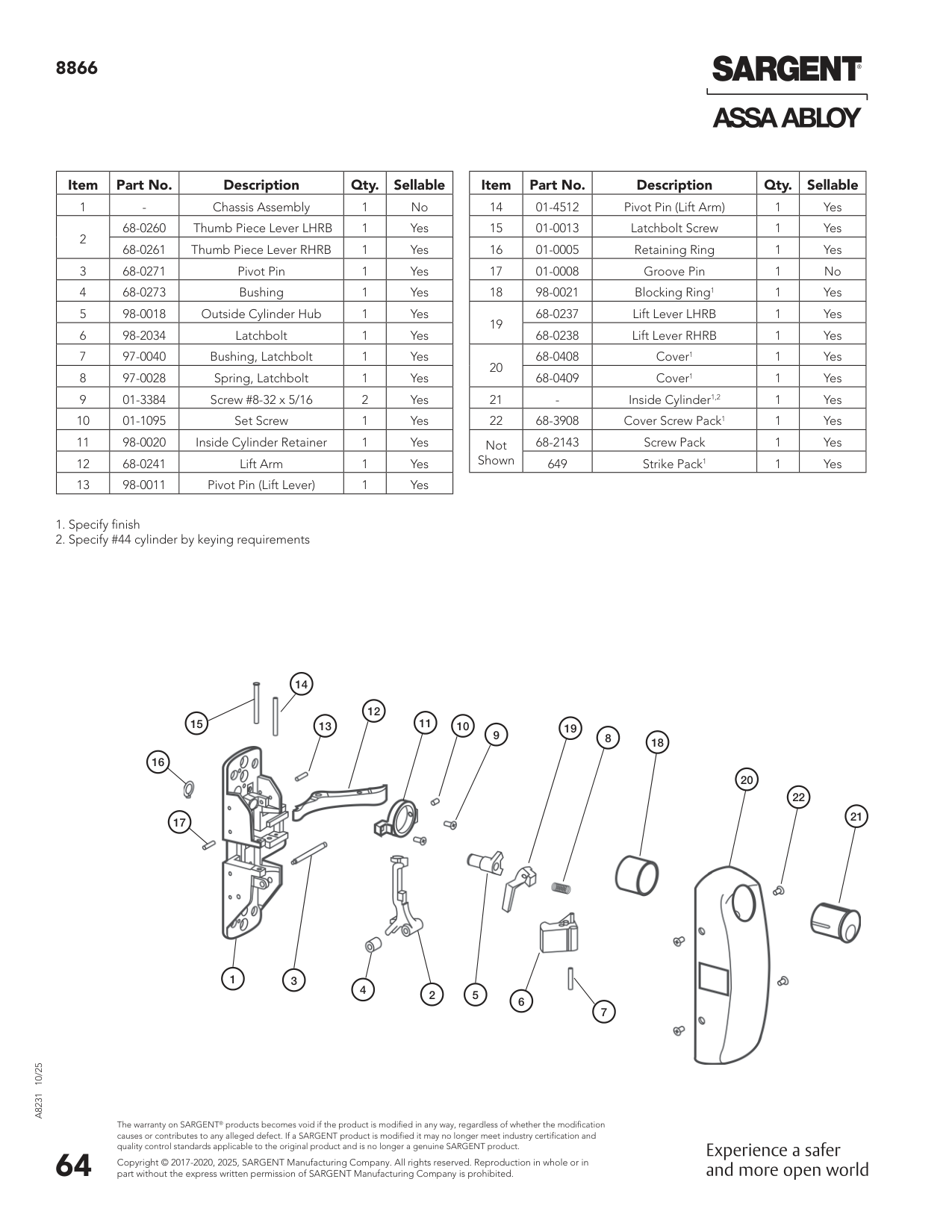

Parts List Illustration
