Sargent 68-2446 Chassis Pack for 8706 & 8713 Exit Devices — LHRB

The Sargent 68-2446 is a factory-specification Chassis Assembly designed for the Sargent 80 Series exit device platform. Also referenced as the 8706/8713 Chassis Pack, this replacement and service component serves as the core operating chassis assembly within compatible 80 Series exit devices. When the push bar is depressed, the push rail transfers that force directly to this chassis, which retracts the latch bolt to allow egress. Handed LHRB (Left Hand Reverse Bevel), this chassis pack is engineered to precisely match the geometry and mechanics of the designated 80 Series models — ensuring reliable, code-compliant panic hardware operation after service or repair.

Institutional Grade Features & Benefits

• OEM-Matched Chassis Assembly: Engineered to Sargent factory specifications for the 80 Series exit device, ensuring seamless fit and consistent latching performance after installation.
• Core Egress Mechanism: Functions as the central operating component — receives force from the push rail when the push bar is pressed and retracts the latch bolt to permit egress.
• Precise Handing: Supplied in LHRB hand; confirms correct latch bevel orientation for left-hand reverse bevel door applications.
• Targeted Model Compatibility: Directly compatible with Sargent 8706 and Sargent 8713 80 Series exit device models, narrowing service and procurement decisions for facility managers and door hardware professionals.
• Service & Restoration Ready: Ideal for preventive maintenance programs, field repair, and restoring exit device function without full device replacement — reducing hardware lifecycle costs.
• Commercial & Institutional Application: Suited for schools, hospitals, office buildings, and other commercial facilities relying on Sargent 80 Series panic hardware for life-safety egress compliance.

Technical Details

Door Handing Reference

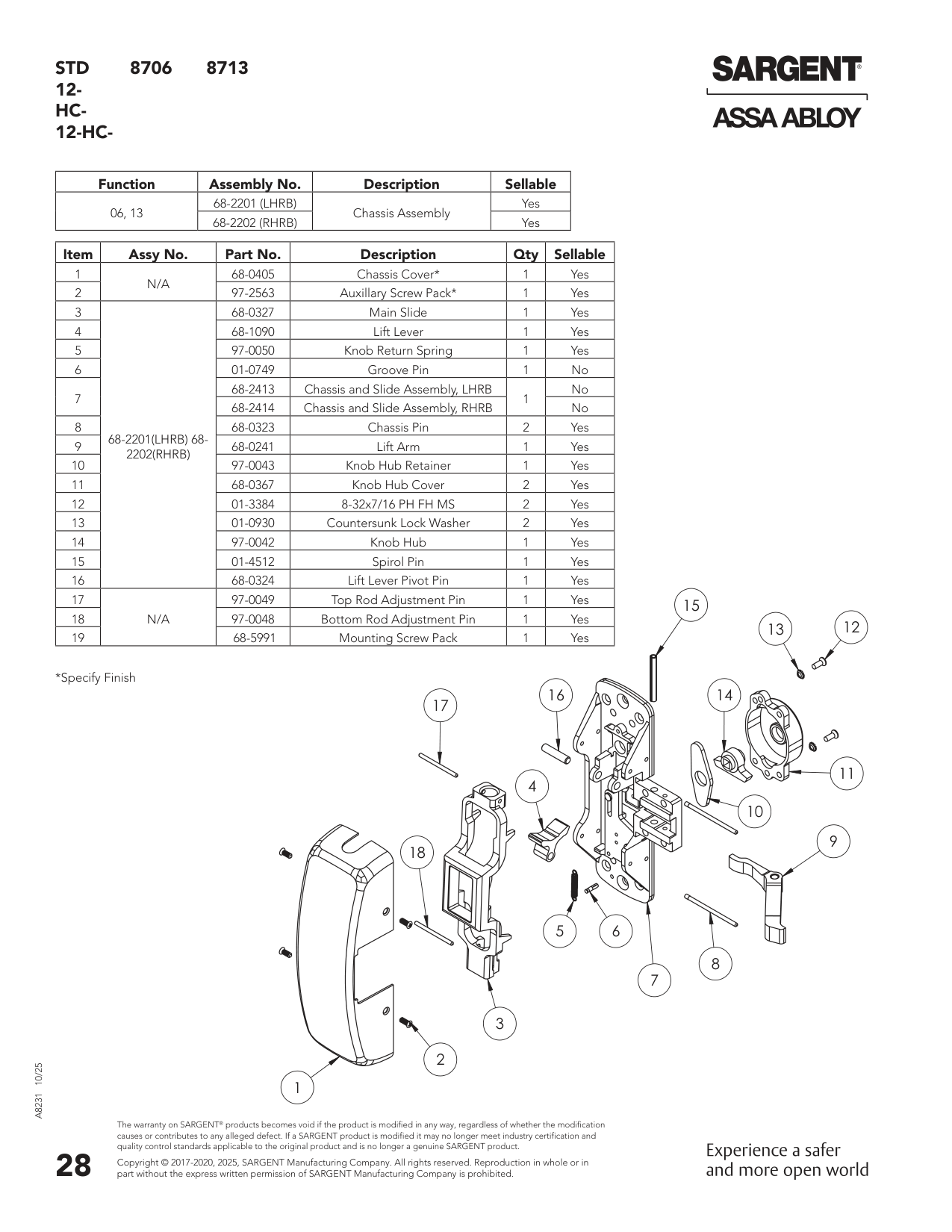

Parts List Illustration
