Sargent 68-2455 Chassis Pack – 80 Series Exit Device Chassis Assembly (RHRB)

The Sargent 68-2455 is a genuine OEM chassis assembly — also referred to as a chassis pack — engineered specifically for the Sargent 80 Series exit device. This core operating chassis is the mechanical heart of the exit device: when the push bar is depressed, the push rail transfers that force directly to this chassis, which retracts the latch and allows egress. Handing for this chassis pack is RHRB. Compatible fire-rated 80 Series exit device models covered by this chassis pack are 12-8706 and 12-8713.

Institutional Grade Features & Benefits

• Genuine Sargent OEM Component: Sourced directly from Sargent, ensuring precise fit, correct tolerances, and reliable operation in fire-rated door assemblies.
• Core Egress Mechanism: Serves as the central chassis that converts push-bar input into latch retraction, maintaining smooth, code-compliant single-motion egress on 80 Series devices.
• Fire-Rated Compatibility: Designed for use with fire-rated 80 Series models 12-8706 and 12-8713, supporting the device's listing under fire-door hardware requirements.
• Correct RHRB Handing: Manufactured to the RHRB (Right Hand Reverse Bevel) configuration, ensuring proper alignment and operation on the correct door hand without field modification.
• Streamlined Maintenance & Rebuild: Provides facility managers, locksmiths, and door hardware professionals a direct replacement chassis pack to restore full exit device function without replacing the entire unit — reducing downtime and cost.
• 80 Series Specific Design: Engineered exclusively for the Sargent 80 Series product family, eliminating cross-series compatibility guesswork during service or installation.

Technical Details

Door Handing Reference

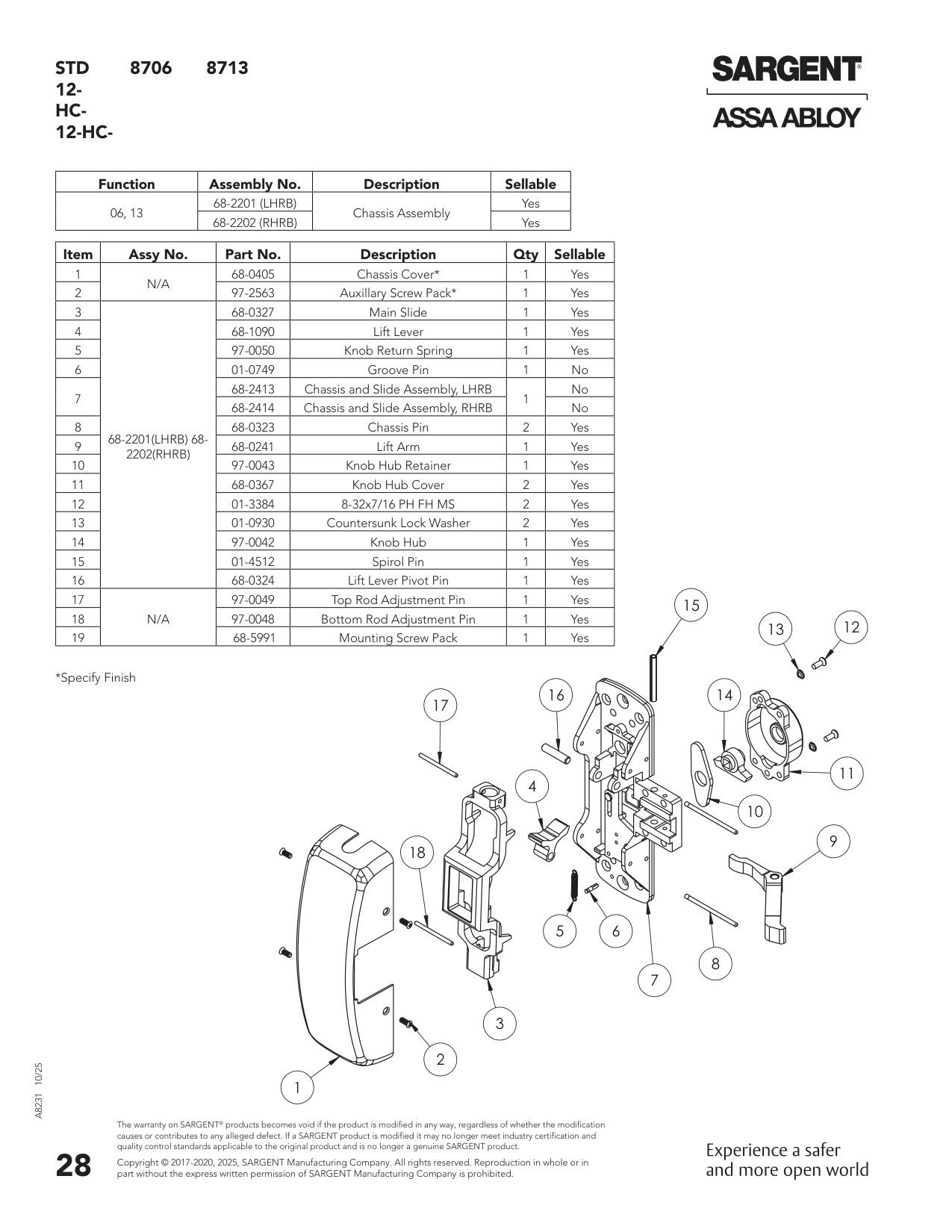

Parts List Illustration
