Sargent 68-2464 Chassis Assembly for 8916 & 8966 Exit Devices — RHRB

The Sargent 68-2464 is a genuine OEM chassis assembly (also referred to as a chassis pack) designed specifically for the Sargent 80 Series exit device platform. This replacement part serves as the core operating mechanism within the exit device: when the push bar is depressed, the push rail transfers that force directly to this chassis, which retracts the latch bolt to allow egress. Compatible with Sargent 8916 and Sargent 8966 80 Series exit device models, this chassis pack is handed RHRB (Right Hand Reverse Bevel). Sourcing an OEM chassis assembly ensures proper fit, reliable mechanical performance, and maintained code compliance in commercial and institutional door applications.

Institutional Grade Features & Benefits

• Genuine OEM Replacement: Manufactured by Sargent to original factory specifications, ensuring precise fit within compatible 80 Series exit devices without field modification.
• Core Egress Mechanism: Functions as the central operating chassis — receives force from the push rail when the push bar is activated and retracts the latch to permit egress.
• Model-Specific Compatibility: Engineered for use with the Sargent 8916 and 8966 exit device models within the 80 Series product line.
• Correct Handing — RHRB: Supplied in Right Hand Reverse Bevel handing to match specific door configurations; a handing diagram accompanies this listing.
• Restores Device Function: Replacing a worn or damaged chassis pack returns the exit device to proper operating condition, extending service life and avoiding costly full-device replacement.
• Commercial & Institutional Application Ready: Suited for high-traffic commercial, institutional, and public-assembly door openings where Sargent 80 Series exit hardware is installed.

Technical Specifications

• Compatible Exit Device Models: Sargent 8916, Sargent 8966
• Series Compatibility: Sargent 80 Series exit devices
• Handing: RHRB

Technical Details

Door Handing Reference

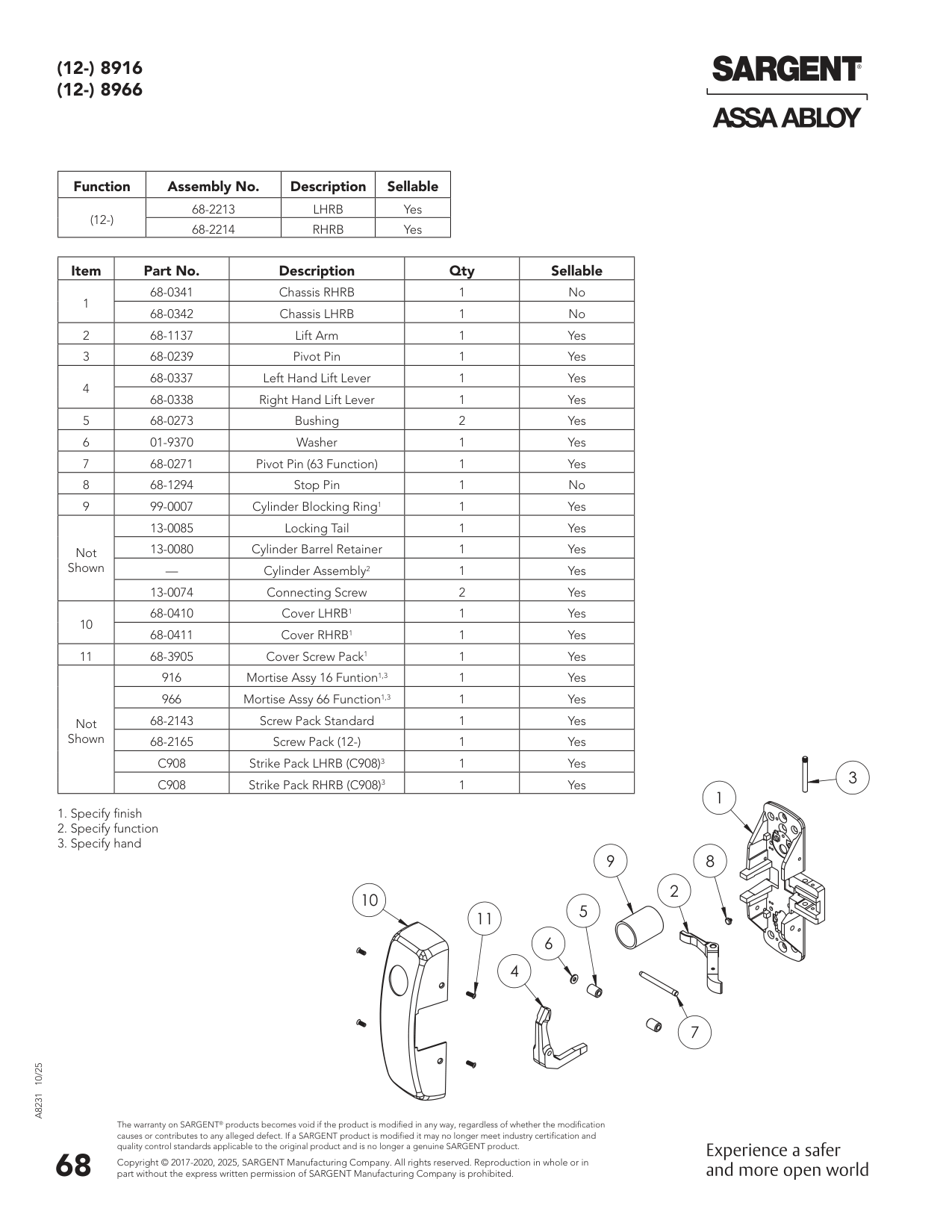

Parts List Illustration
