Sargent 68-2467 Chassis Pack for 80 Series Exit Devices — RHRB

The Sargent 68-2467 is a genuine OEM chassis assembly (chassis pack) engineered as the core operating component for the Sargent 80 Series exit device. When the push bar is depressed, the push rail transfers force directly to this chassis, which retracts the latch bolt and allows immediate egress. This replacement chassis pack is handed RHRB (Right Hand Reverse Bevel) and is compatible with the following 80 Series fire-rated exit device models: 12-8916 and 12-8966.

Institutional Grade Features & Benefits

• Genuine OEM Sargent Part: Manufactured to the same standards as the original factory-installed chassis, ensuring reliable, code-consistent performance in commercial and institutional applications.
• Core Egress Mechanism: Serves as the central operating assembly of the exit device — receives push-bar force via the push rail and retracts the latch to permit egress.
• Precision RHRB Handing: Factory configured for Right Hand Reverse Bevel door applications; correct handing ensures proper latch engagement and smooth operation.
• 80 Series Platform Compatibility: Designed specifically for Sargent 80 Series exit devices, maintaining the performance integrity of an installed panic hardware system.
• Streamlined Maintenance & Repair: A purpose-built chassis pack simplifies field replacement and reduces downtime when servicing exit devices on high-traffic commercial doors.
• Consistent with Life-Safety Standards: Supports the proper mechanical egress function required in commercial, institutional, and fire-rated door assemblies utilizing the compatible 80 Series device models.

Technical Details

Applications

The Sargent 68-2467 chassis pack is the appropriate replacement or service part when the core operating chassis of a Sargent 80 Series exit device (models 12-8916 or 12-8966) requires rebuilding or replacement. Typical applications include commercial office buildings, institutional facilities, schools, healthcare buildings, and other high-traffic environments where Sargent 80 Series panic hardware is installed on RHRB doors. Using the correct OEM chassis assembly preserves the mechanical reliability and egress performance of the exit device system.

Door Handing Reference

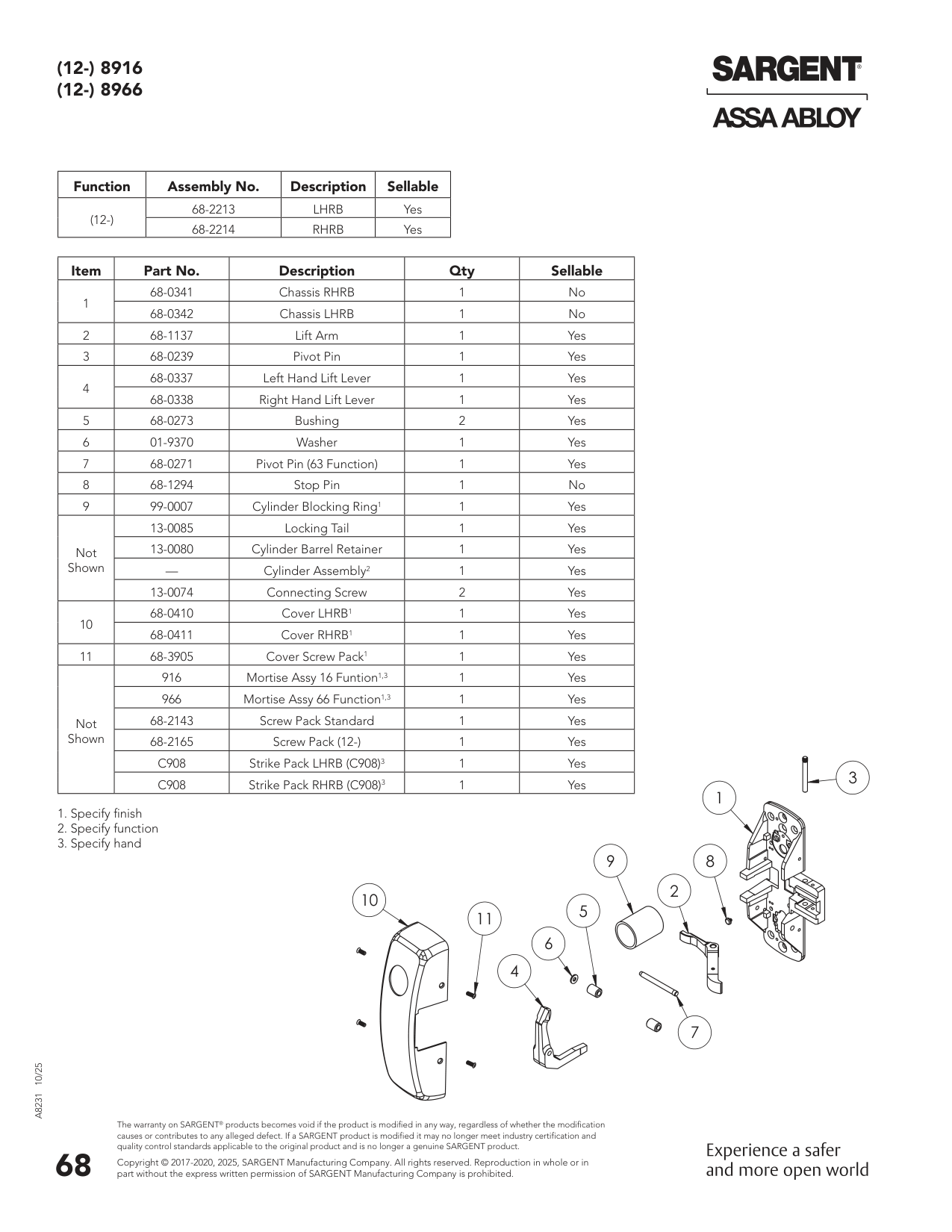

Parts List Illustration
