Sargent 68-4116 Chassis Assembly for 80 Series Exit Devices — RHR

The Sargent 68-4116 is an OEM chassis assembly engineered as the core operating component for Sargent 80 Series exit devices. When the push bar is depressed, the push rail transfers force directly to this chassis, which retracts the latch bolt to permit egress. This replacement chassis restores proper mechanical function to the exit device and is handed Right Hand Reverse (RHR). Compatible 80 Series models include AL-8715 (Alarmed) and GL-8715 (Guarded Latch).

Institutional Grade Features & Benefits

• OEM Sargent Component: Genuine Sargent factory part ensures precise fit, full mechanical integrity, and code-compliant performance within the 80 Series exit device family.
• Core Egress Mechanism: Serves as the central operating chassis — the push rail transfers actuation force to this assembly, which retracts the latch to allow immediate, reliable egress.
• Targeted Compatibility: Designed specifically for Sargent 80 Series exit devices, including the AL-8715 (Alarmed) and GL-8715 (Guarded Latch) models, eliminating guesswork during replacement or repair.
• RHR Handing: Configured for Right Hand Reverse door applications — see the handing diagram included with the listing for installation reference.
• Restores Exit Device Function: Ideal for facility maintenance teams, locksmiths, and door hardware professionals performing in-field repairs without full device replacement.
• Life-Safety Reliability: Maintains the mechanical dependability required in commercial, institutional, and high-traffic egress applications where exit device performance is critical.

Applications

The Sargent 68-4116 chassis assembly is suited for use in commercial buildings, schools, hospitals, government facilities, and any application where Sargent 80 Series panic hardware or exit devices are installed. It is the correct service part when the existing chassis is worn, damaged, or mechanically compromised, allowing restoration of the latch retraction function without replacing the entire exit device.

Technical Details

Door Handing Reference

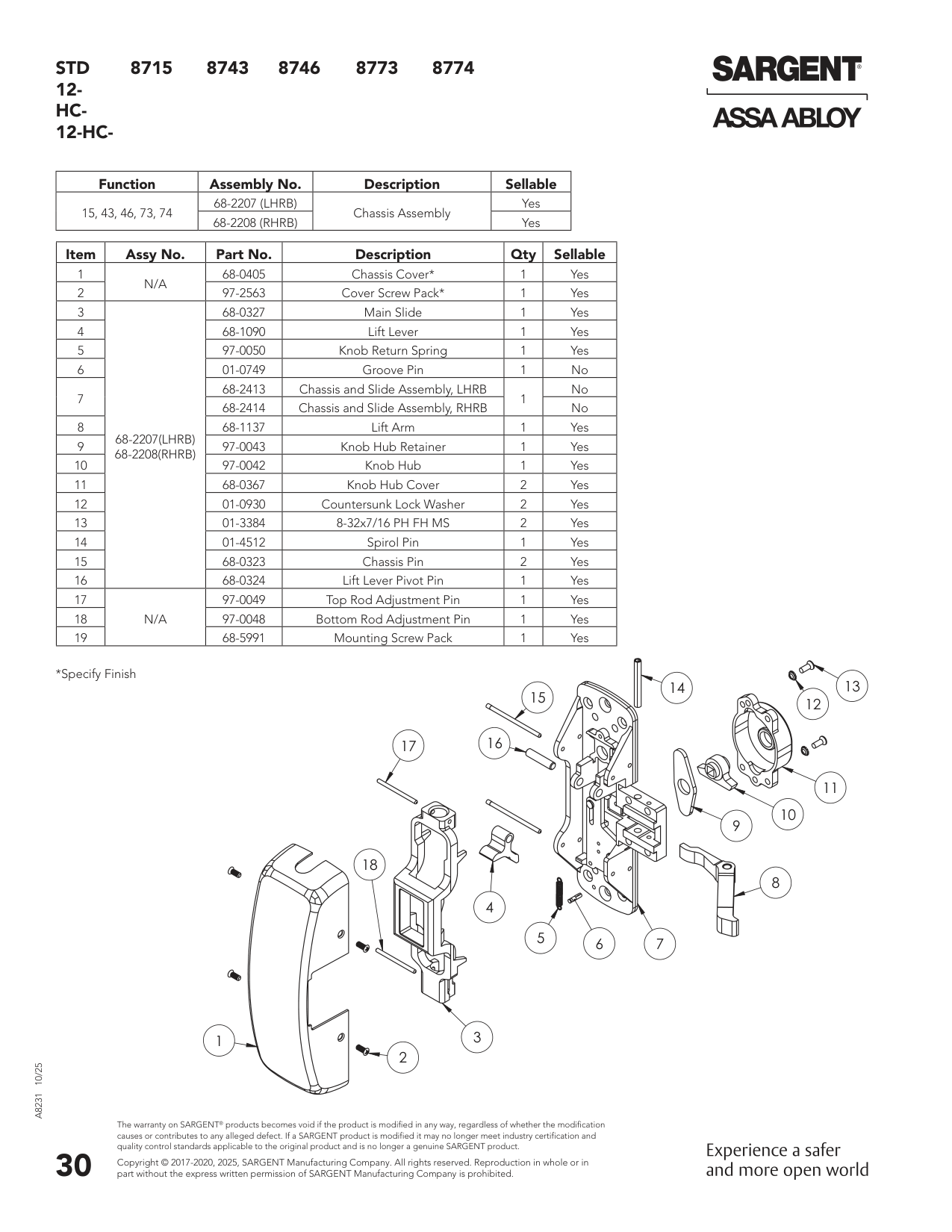

Parts List Illustration
