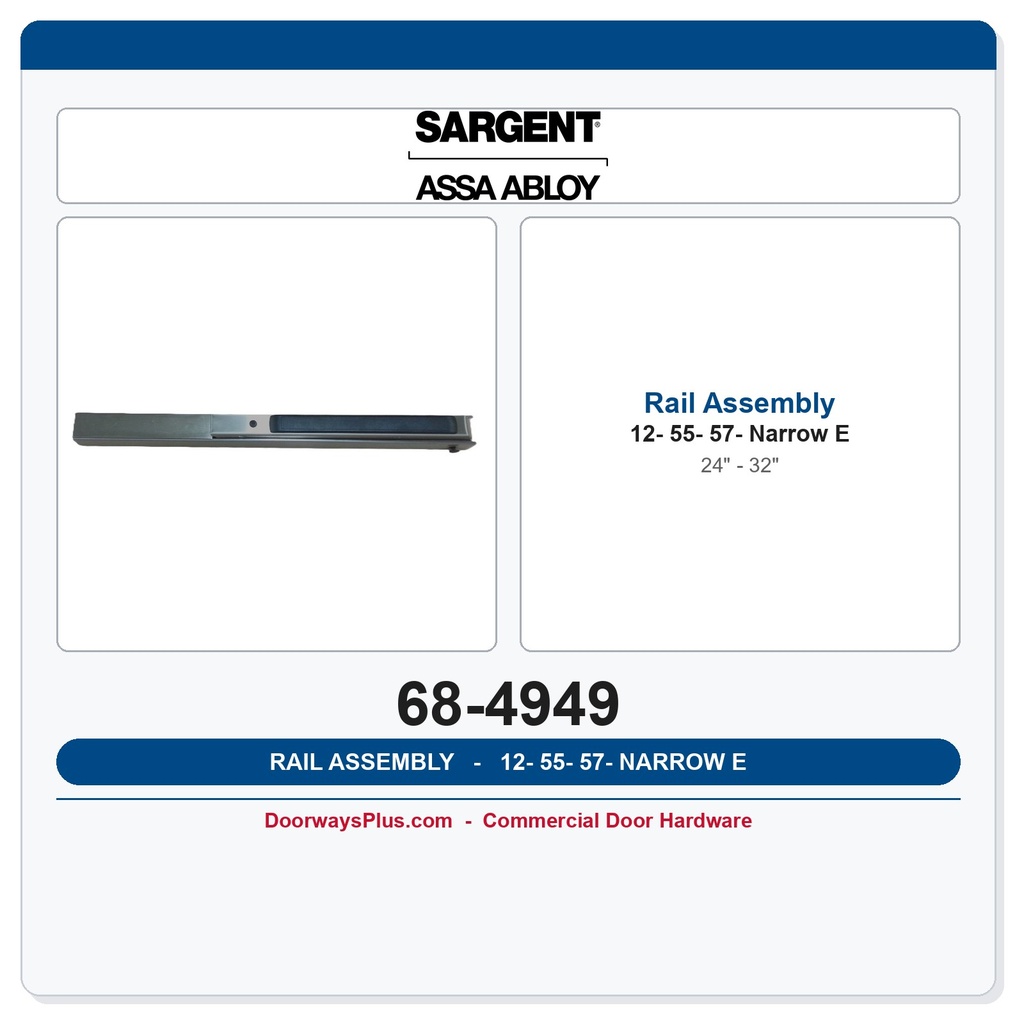

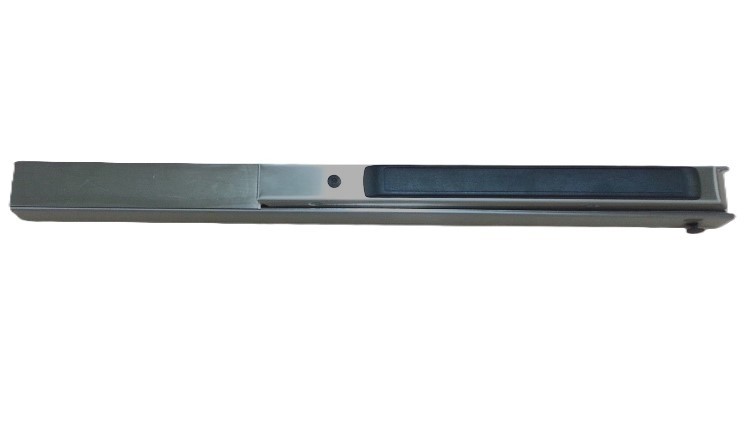

Sargent 68-4949 Rail Assembly — E-Narrow, 80 Series Exit Device Replacement Part
The Sargent 68-4949 is a genuine OEM rail assembly designed as a direct replacement component for the Sargent 80 Series exit device. This E-narrow rail stock fits doors ranging from 24 inches to 32 inches in width, making it the correct choice when restoring or servicing narrow-stile and standard single-door exit device installations. As an authentic Sargent factory part, the 68-4949 ensures proper fit, alignment, and long-term performance — preserving the integrity of the original 80 Series panic hardware assembly without modification or fabrication.
Institutional Grade Features & Benefits
- Genuine OEM Part: Manufactured by Sargent to original factory specifications, ensuring a precise drop-in fit within the 80 Series exit device rail system.
- E-Narrow Rail Stock (24"–32" Doors): Rail size designation E is engineered specifically for doors in the 24-inch to 32-inch width range, covering narrow and mid-width door applications common in institutional, commercial, and educational facilities.
- 80 Series Compatibility: Designed exclusively for the Sargent 80 Series exit device family, eliminating guesswork and reducing installation time during maintenance or rebuild projects.
- Restores Device Function: Replacing a worn, damaged, or missing rail assembly with the correct OEM part brings the exit device back to manufacturer-specified operating condition.
- Reduces Field Liability: Using a genuine Sargent replacement part — rather than an aftermarket substitute — supports compliance with original hardware specifications for life-safety exit hardware.
Technical Details
| Feature | Details |
|---|---|
| Brand | Sargent |
| Part Number | 68-4949 |
| Part Type | Rail Assembly |
| Product Class | Exit Device Component |
| Series Compatibility | Sargent 80 Series Exit Device |
| Rail Stock Size | E — fits 24" to 32" door width |
| OEM / Aftermarket | Genuine OEM Sargent Replacement Part |
Applications
The Sargent 68-4949 E-Narrow Rail Assembly is suited for facility maintenance teams, door hardware distributors, and locksmiths performing field repairs or rebuild service on Sargent 80 Series exit devices installed on doors measuring 24" to 32" wide. Typical installation environments include commercial office buildings, schools, hospitals, government facilities, and other occupancies where Sargent 80 Series panic hardware is the specified exit device. Always verify the door width and existing rail size designation before ordering to confirm the E-narrow stock is the correct match for the application.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10BE - Oil Rub Bronze Equal |
| Brand | Sargent |
| Series | Sargent - 80 Series |
| Part Type | Assembly |
