Sargent 68-5945 Chassis Assembly for 8400 Series Exit Device — RHRB

The Sargent 68-5945 is a factory-replacement chassis assembly designed for the Sargent 8400 Series exit device. This core operating component integrates within the exit device body to translate push-bar force into latch retraction, enabling reliable, code-compliant egress. Handing for this assembly is RHRB (Right Hand Reverse Bevel). Compatible with Sargent 80 Series exit device hardware.

Institutional Grade Features & Benefits

• OEM Sargent Component: Genuine Sargent part engineered to factory tolerances, ensuring consistent performance and longevity within the 8400 Series exit device.
• Core Egress Mechanism: When the push bar is depressed, the push rail transfers force directly to this chassis assembly, which retracts the latch bolt to allow egress — restoring proper exit device function.
• Precision Handing: Configured specifically for RHRB applications, ensuring correct mechanical alignment within the door and frame assembly.
• 80 Series Platform Compatibility: Engineered for seamless fit within Sargent 8400 Series exit devices, eliminating guesswork in service and replacement scenarios.
• Reduced Downtime: A direct-replacement chassis assembly allows maintenance and facility teams to restore exit device operation quickly without full device replacement.
• Life-Safety Reliability: Supports continuous, dependable egress performance in commercial, institutional, and high-traffic door applications where exit device integrity is critical.

Technical Details

Door Handing Reference

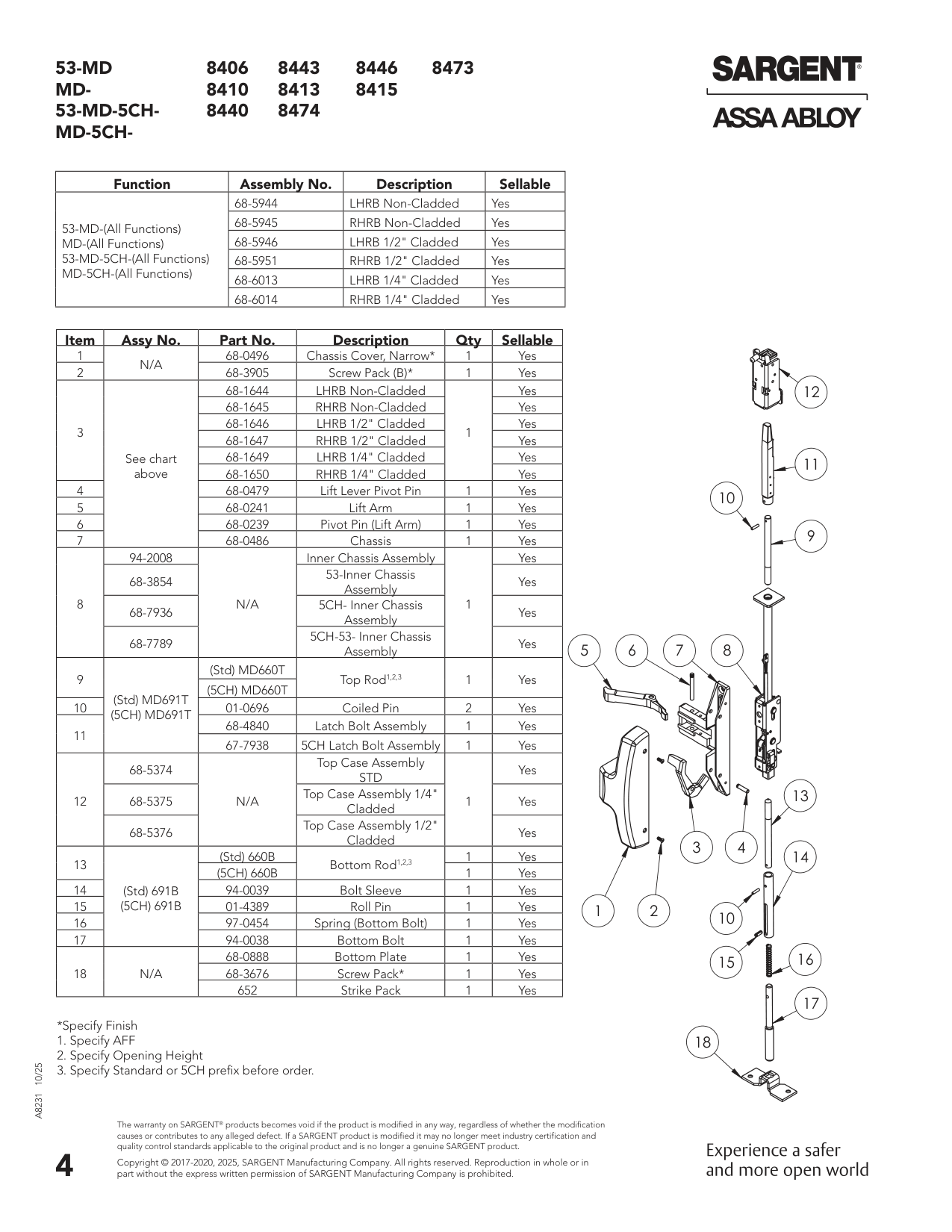

Parts List Illustration
