Sargent 68-6042 Chassis Assembly for 80 Series Exit Device — HC4 8706/13 LHRB
The Sargent 68-6042 is a genuine OEM Chassis Assembly engineered specifically for the Sargent 80 Series exit device. This core operating component — also referenced as the HC4 chassis assembly — serves as the mechanical heart of the push-rail exit device. When the push bar is depressed, the push rail transfers that force directly to this chassis, which retracts the latch bolt to allow immediate, code-compliant egress. Designed for Left Hand Reverse Bevel (LHRB) applications, this is a precision replacement or new-installation part built to Sargent's commercial-grade tolerances for high-traffic institutional and commercial door hardware installations.
Institutional Grade Features & Benefits
- Genuine OEM Sargent Component: Factory-engineered chassis assembly ensures full mechanical compatibility and reliable, consistent performance within the 80 Series exit device system.
- Core Egress Mechanism: Directly receives push-rail force and actuates latch retraction, making it the critical link in the exit device's egress function — essential for life-safety compliance.
- Precise Handing: Configured for LHRB (Left Hand Reverse Bevel) door applications; a handing diagram accompanies this listing for installation reference.
- 80 Series Platform Compatibility: Engineered to integrate seamlessly with Sargent 8706 exit device models, maintaining original device geometry and push-rail alignment.
- Commercial & Institutional Grade Construction: Built to withstand the rigorous demand cycles of schools, healthcare facilities, government buildings, and commercial properties requiring dependable exit hardware.
- Simplified Service & Maintenance: Replacing this chassis assembly restores full exit device function without requiring complete device replacement, reducing downtime and overall maintenance costs.
Technical Specifications
- Model Number: 68-6042
- Brand: Sargent
- Part Type: Chassis Assembly
- Series Compatibility: Sargent 80 Series
- Exit Device Compatibility: 8706
- Handing: LHRB (Left Hand Reverse Bevel)
- Technical Reference: HC4 8706/13
- Product Class: Exit Device Component
Technical Details
| Feature | Details |
|---|---|
| Part Number | 68-6042 |
| Brand | Sargent |
| Part Type | Chassis Assembly |
| Series Compatibility | Sargent 80 Series |
| Exit Device Compatibility | 8706 |
| Technical Reference | HC4 8706/13 |
| Handing | LHRB (Left Hand Reverse Bevel) |
Door Handing Reference

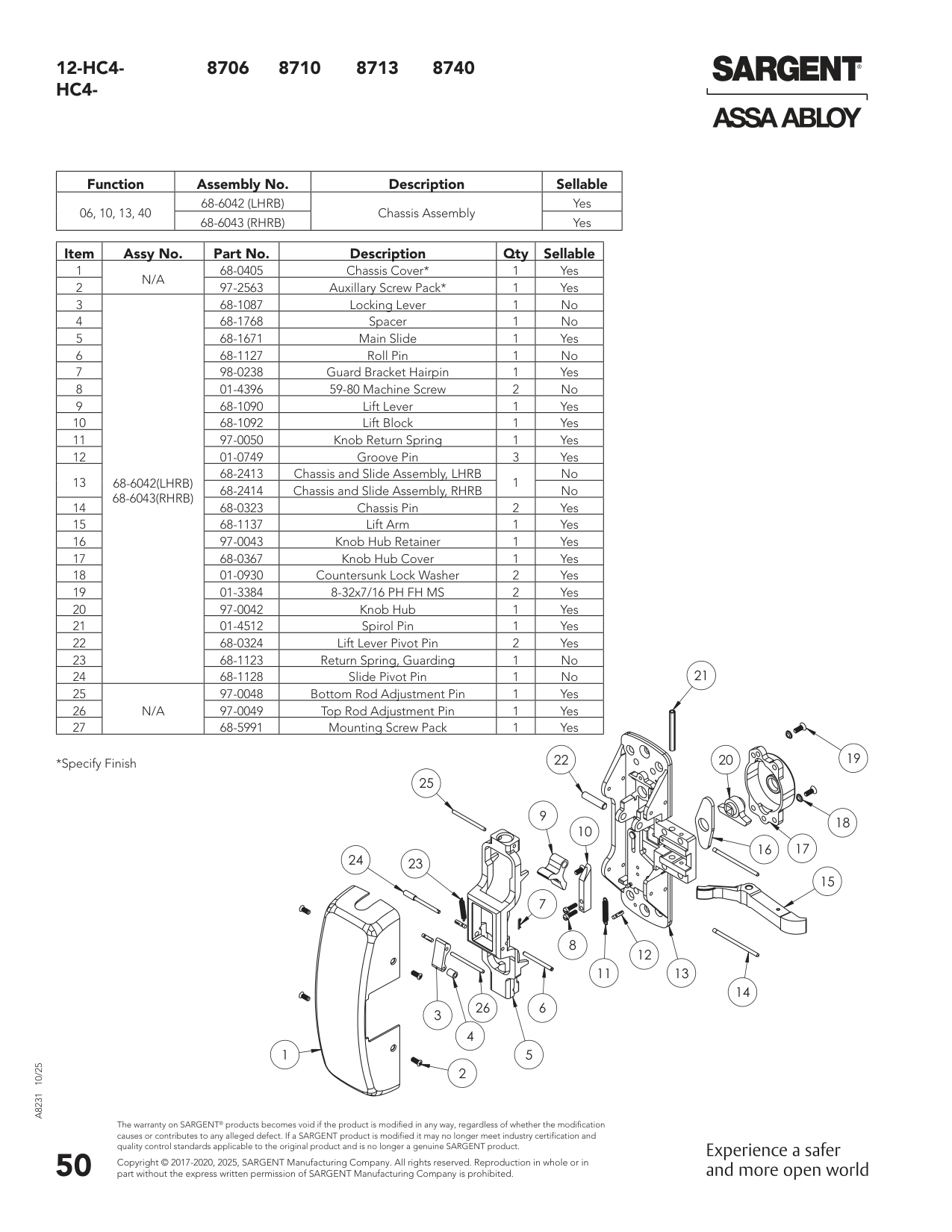

Parts List Illustration
| Brand | Sargent |
| Series | Sargent - 80 Series |
| Part Type | Chassis Assembly |
