Sargent 68-7309 FM8700 Chassis Assembly — Sargent 80 Series Exit Device Replacement Part (RHR)

The Sargent 68-7309 FM8700 Chassis Assembly is a genuine OEM replacement chassis designed for the Sargent 80 Series exit device. This right-hand reverse (RHR) chassis assembly serves as the core operating mechanism of the exit device: when the push bar is depressed, the push rail transfers that force directly to this chassis, which retracts the latch bolt to permit egress. Keeping this critical internal component in proper working condition ensures reliable, code-compliant panic hardware operation on commercial and institutional doors.

Institutional Grade Features & Benefits

• Genuine OEM Sargent Component: Engineered and manufactured to Sargent factory specifications for a precise, drop-in fit within the 80 Series exit device chassis housing.
• Core Latch-Retraction Mechanism: Translates push-bar force through the push rail to reliably retract the latch bolt, maintaining consistent egress performance on every cycle.
• 80 Series Compatibility: Designed exclusively for the Sargent 80 Series exit device family, eliminating guesswork and reducing installation time for facility managers and door hardware professionals.
• Right-Hand Reverse (RHR) Handing: This chassis assembly is handed RHR; a handing diagram accompanies the listing for reference.
• Restores Exit Device Function: Replacing a worn or damaged chassis assembly restores proper push-bar travel and latch retraction without requiring full exit device replacement, reducing maintenance costs.
• Ideal for Preventive Maintenance Programs: A critical spare part for facilities with high-traffic commercial doors, institutional buildings, schools, hospitals, and office complexes relying on Sargent 80 Series panic hardware.

Technical Specifications

• Part Number: 68-7309
• Model / Series Designation: FM8700
• Part Type: Chassis Assembly
• Handing: RHR (Right-Hand Reverse)
• Compatible Device Series: Sargent 80 Series Exit Device
• Product Class: Exit Device Replacement Part
• Brand: Sargent

Technical Details

Door Handing Reference

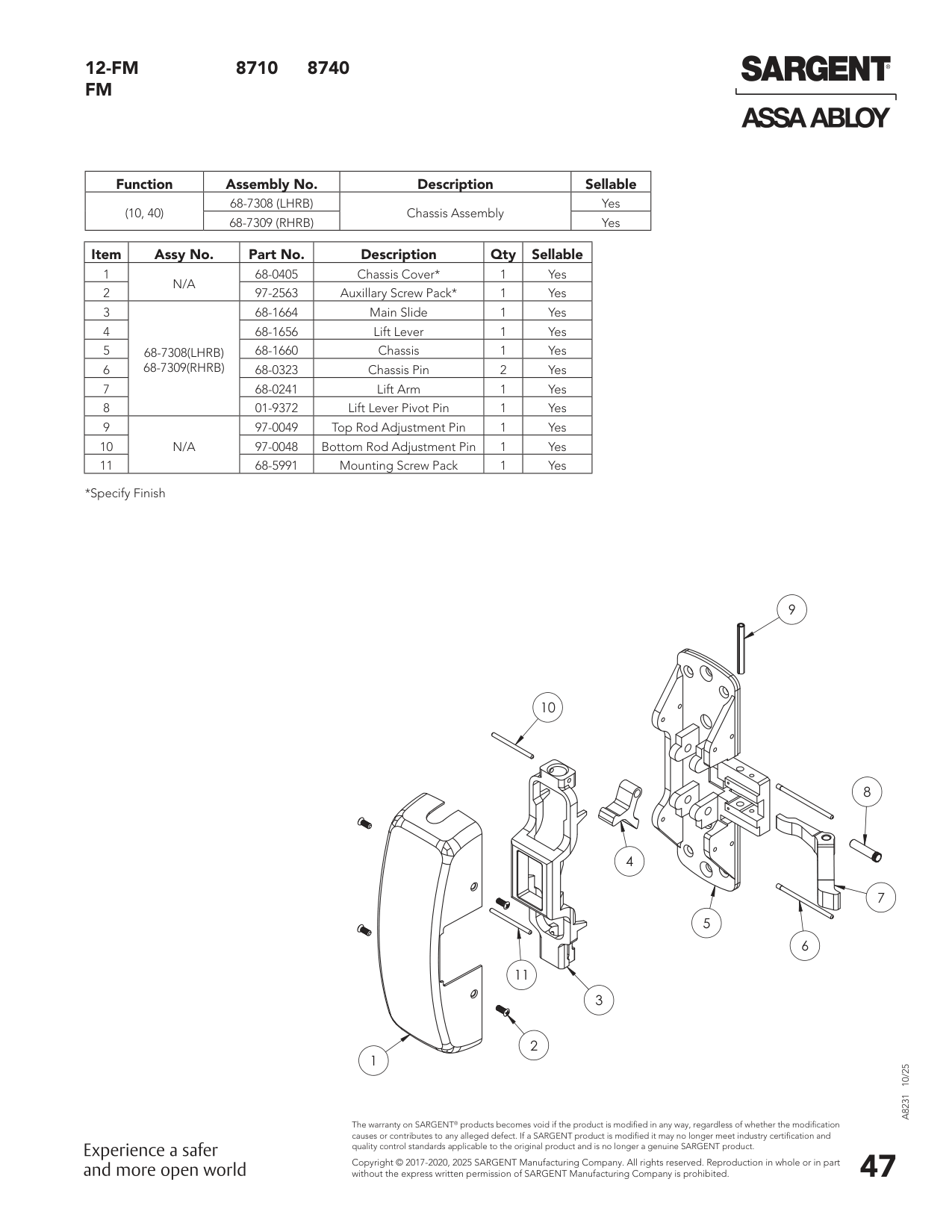

Parts List Illustration
