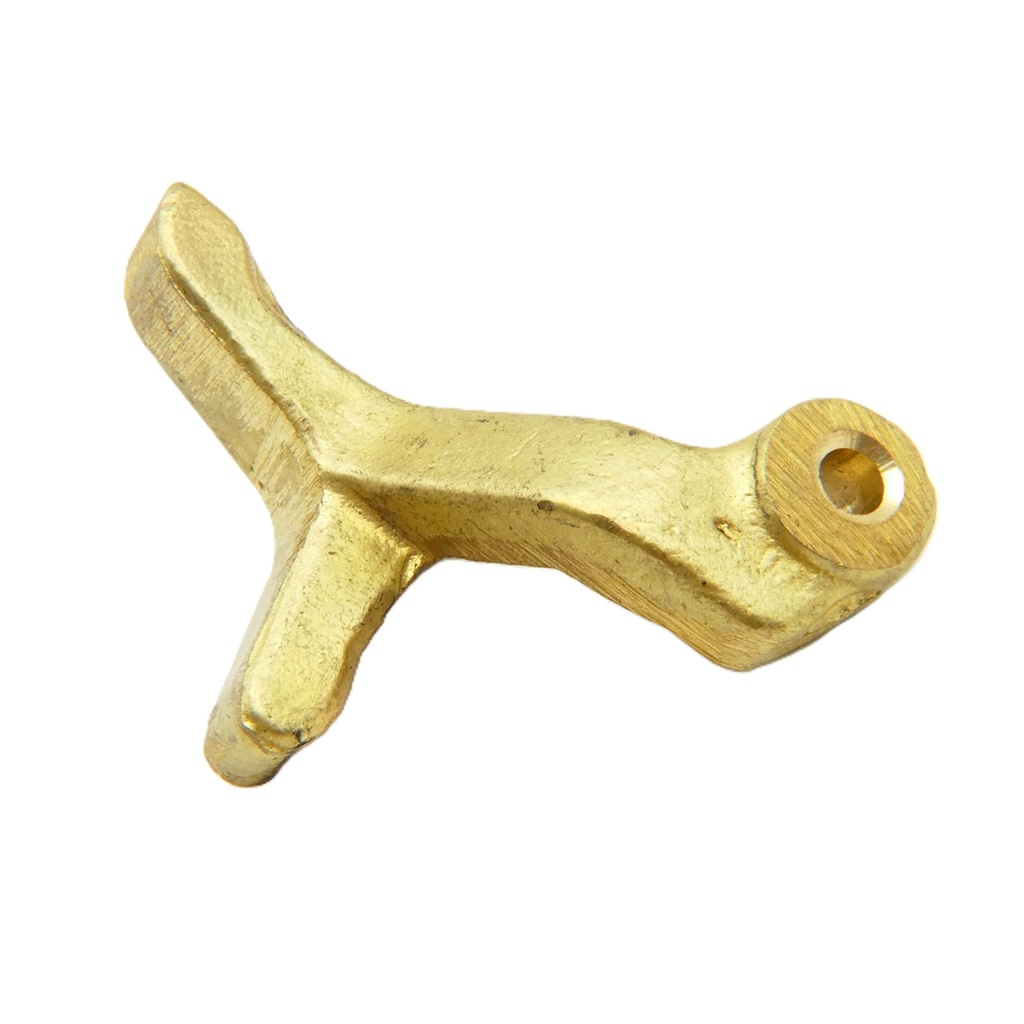

Sargent 28-0036 Lift Lever | For 20 Series Exit Devices

The Sargent 28-0036 is a genuine OEM replacement lift lever designed specifically for Sargent 20 Series Exit Devices. This heavy-duty internal component acts as the primary actuator within the chassis assembly. When the push rail is depressed, the 28-0036 lift lever pivots to engage the linkage, retracting the latch bolt and allowing for immediate egress. Manufactured to Sargent's exacting architectural standards, this part is essential for restoring smooth, reliable operation to worn or sticking panic bars.

Mechanical Integrity & Performance Features

• Direct 20 Series Compatibility: Engineered as a drop-in replacement for the internal mechanism of Sargent’s widely used 20 Series Rim and Vertical Rod devices.
• High-Torque Durability: Forged from high-strength materials to withstand the repetitive mechanical stress of high-traffic commercial environments like schools and retail centers.
• Precision Timing: Designed to factory tolerances to ensure instantaneous latch retraction, reducing the force required to open the door.
• Restores "Like-New" Feel: Eliminates the "spongy" or "stiff" push-bar feel often caused by a bent or worn internal lift lever.
• Architectural Grade Quality: Built by Sargent (Assa Abloy) to maintain the original UL fire-rating and life-safety certifications of your exit hardware.

Technical Specifications

• Model Number: 28-0036
• Part Type: Internal Lift Lever / Actuator
• Series Compatibility: Sargent 20 Series (Rim, SVR, CVR)
• Material: Heavy-Duty Industrial Alloy
• Function: Latch Bolt Retraction Mechanism

The Sargent 28-0036 is a high-wear internal part. If your exit device push-bar is being depressed but the latch isn't moving, the lift lever may be worn or disconnected. When replacing this component, we recommend a thorough cleaning of the internal chassis and a light application of lithium-based grease to the pivot points to ensure long-term performance.

Installation Note: While the lift lever handles the internal movement, the stability of the entire device depends on a secure mount. Always verify that the exit device chassis is anchored to the door using high-strength thru bolts. If the chassis is loose, it can cause the lift lever to misalign with the internal linkage, leading to premature wear or mechanical binding.
