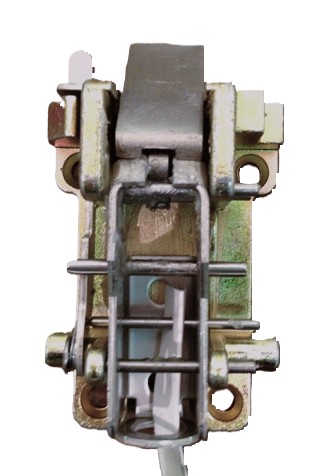

Sargent 28-2493 Fire Rated Top Latch | For 12-3727 Devices

The Sargent 28-2493 is a genuine OEM replacement Fire Rated Top Latch Assembly specifically engineered for Sargent 12-3727 Surface Vertical Rod (SVR) Exit Devices. Designed for use on UL Fire Rated doors, this assembly includes the high-strength internal latching mechanism and a protective EN (Aluminum) finish cover. This unit ensures the door remains securely deadlocked at the header during a fire event, preventing door warping and maintaining the smoke seal.

Life-Safety Grade Features & Benefits

• Direct 12-3727 Series Compatibility: Precision-calibrated to interface perfectly with the fire-rated vertical rods and lift-members of the Sargent 12-3700 series.
• Fire-Rated Integrity: Manufactured to the rigorous standards required for 12-prefix (Fire Rated) hardware, ensuring compliance with local fire and building codes.
• Architectural EN Cover Included: Comes with a factory-finished aluminum cover to shield the internal fire-rated springs and trip-levers from dust and tampering.
• Positive Deadlocking Mechanism: Features a heavy-duty internal bolt designed to provide a secure "top-point" lock that releases only when the exit device pushpad is depressed.
• OEM Precision Fit: Replacing damaged latches with the genuine 28-2493 restores the original fire listing of the opening without the need for unapproved field modifications.

Technical Specifications

• Model Number: 28-2493
• Part Type: Fire-Rated Top Latch Assembly with Cover
• Compatibility: Sargent 12-3727 Surface Vertical Rod Devices
• Finish: EN (Aluminum)
• Application: Fire-Rated Doors Only (12-Prefix Hardware)

The Sargent 28-2493 is the most critical repair part for fire-rated SVR devices. Because the top latch handles the "deadlocking" function, a worn or dirty internal trip-lever can cause the door to bounce off the strike or fail to latch entirely. On a fire-rated opening, this is a major compliance violation. Replacing the entire 28-2493 assembly ensures your fire door remains a reliable barrier during an emergency.

Installation Note: For the top latch to engage the header strike consistently, the exit device must be perfectly anchored. We highly recommend securing the 12-3727 chassis using high-strength thru bolts. A stable, thru-bolted connection prevents the device from sagging, which keeps the vertical rods in perfect alignment and prevents the 28-2493 latch from binding or "hanging up" on the strike plate.
