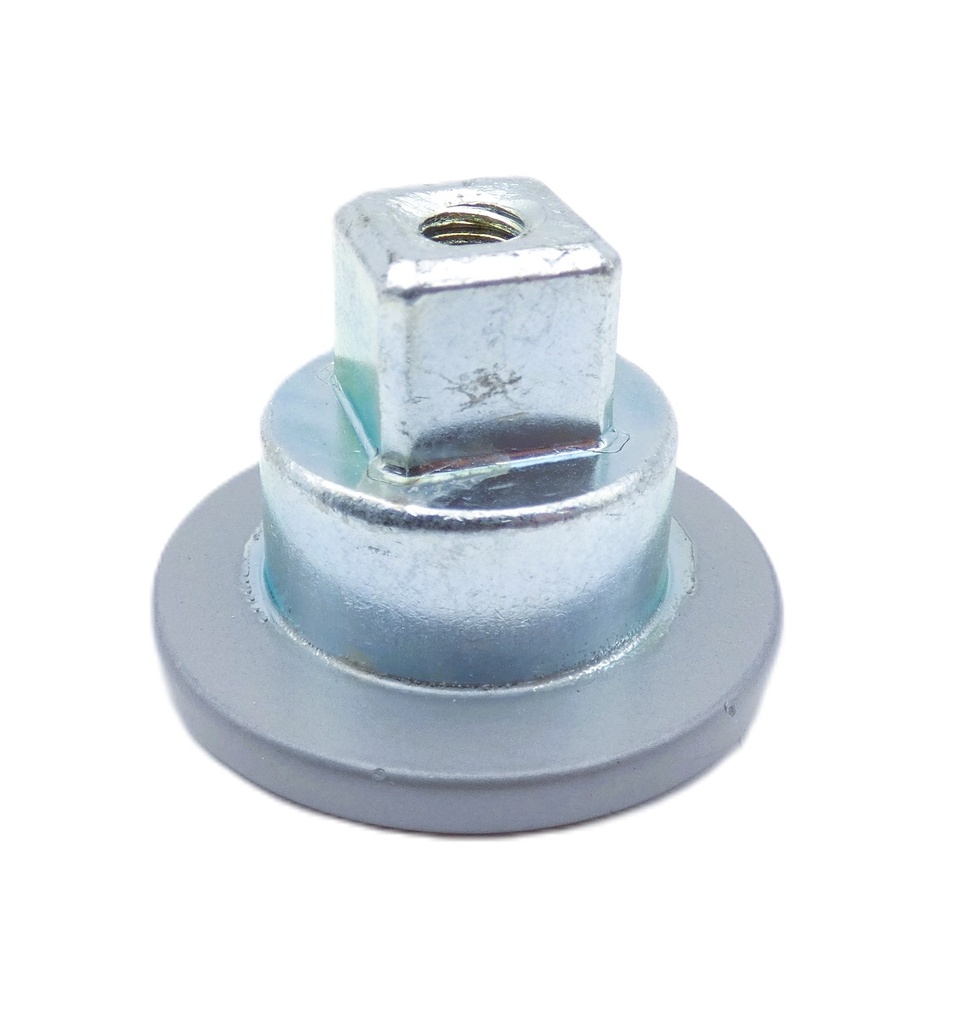

Sargent 63-0700 EN Arm Pivot | For P10, PS, and CPS Arms
The Sargent 63-0700 is a genuine OEM replacement arm pivot designed for the articulated "elbow" joint of Sargent 351, 281, and 1431 Series Door Closers. As the central axis where the main arm meets the forearm, this pivot is a high-wear component that must remain perfectly cylindrical for the closer to operate silently and efficiently. Finished in EN (Aluminum Enamel), this pivot is built to withstand the heavy torque of institutional and commercial door applications.
Professional-Grade Mechanical Features
- Multi-Arm Versatility: Engineered to fit the elbow joint of Sargent’s most robust closer arm configurations, including:
- P10 / SP10: Heavy-Duty Parallel Arm / Special Parallel Arm
- PS / PSH: Parallel Arm / Parallel Arm with Hold Open
- CPS / CPSH: Compression Power Track / Compression Power Track with Hold Open
- P10 / SP10: Heavy-Duty Parallel Arm / Special Parallel Arm
- Optimized Hardware Pairing: Designed for a precision fit when used in conjunction with the Sargent 01-9145 Allen Head Screw.
- Seamless Architectural Finish: The EN Aluminum Enamel finish provides a professional look that matches standard silver and aluminum-toned door hardware.
- Friction-Reducing Design: Machined to exact factory tolerances to prevent the "popping" or "binding" sounds common in worn-out closer arm joints.
- Heavy-Duty Durability: Constructed from high-strength steel to resist the shearing forces found in high-traffic school hallways, hospital entrances, and stairwells.
Technical Specifications
- Model Number: 63-0700
- Part Type: Arm Pivot (Elbow Joint)
- Finish: EN (Aluminum Enamel)
- Compatibility: Sargent 351, 281, 1431 Closer Series
- Arm Compatibility: P10, SP10, CPS, CPSH, PS, PSH
- Related Hardware: Uses #01-9145 Pivot Screw (Sold Separately)
The Sargent 63-0700 is the key to fixing a "clunking" door closer. When the elbow pivot wears down, the arm develops "slop," which can lead to the arm striking the door or the frame. To ensure a permanent fix, always inspect the 01-9145 Allen Head Screw for thread wear when replacing this pivot.
Installation Note: Before reassembling the arm joint, apply a light coat of high-quality synthetic grease to the pivot surface. This will significantly extend the life of the joint. For maximum security and stability of the entire closer unit, verify that the closer body and bracket are anchored with high-strength thru bolts to prevent mounting failure under high spring tension.
| Brand | Sargent |
| Series | Sargent - 1430 Series, Sargent - 281 Series, Sargent - 351 Series |
| Closer Part Type | Misc Screws |
