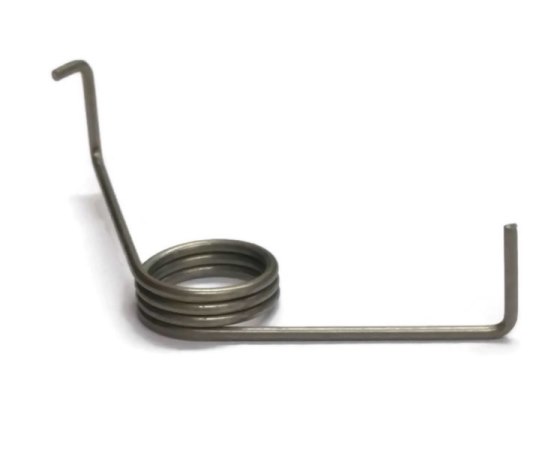

Sargent 68-0236 Connecting Arm Spring | For 20, 30 & 80 Series Rails
The Sargent 68-0236 is a genuine OEM replacement Connecting Arm Spring engineered for the push-rail assembly of Sargent 20, 30, and 80 Series Exit Devices. As a critical internal component, this spring provides the necessary tension to return the push-pad to its neutral position after every use. Identified as Part #8 in official technical rail diagrams, this spring is essential for maintaining the mechanical "snap" and life-safety reliability of your panic hardware.
Institutional Grade Features & Benefits
- Wide Series Compatibility: Precision-fit for the internal rail architecture of Sargent's flagship 80 Series and the versatile 20/30 Series push-rail devices.
- Balanced Rail Action: Engineered to work in pairs—two springs are required per rail device—to ensure even tension and prevent the push-pad from sagging or dragging.
- High-Cycle Durability: Manufactured from premium spring steel to withstand hundreds of thousands of cycles in high-traffic hallways, stairwells, and main entrances.
- OEM Mechanical Performance: Restores the factory-original feel of the device, ensuring the latch retracts fully when pushed and deadlocks securely when released.
- Direct Replacement: Designed to fit perfectly onto the pivot pins and connecting arms without the need for field modifications.
Technical Specifications
- Model Number: 68-0236
- Part Type: Push Rail Connecting Arm Spring
- Series Compatibility: Sargent 20, 30, and 80 Series
- Quantity Required: 2 per Rail Device
- Technical Reference: Part #8 on Sargent Rail Assembly Diagrams
| Brand | Sargent |
| Series | Sargent - 20 Series, Sargent - 30 Series, Sargent - 80 Series |
| Part Type | Spring |
