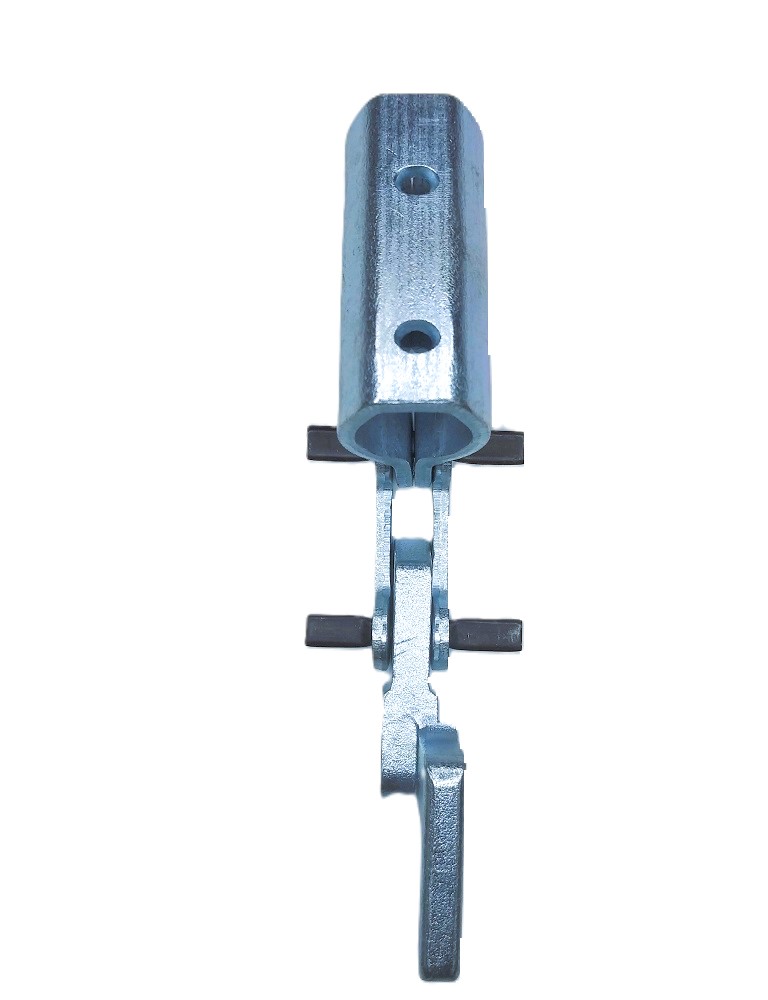

Sargent 68-4271 Upper Link Assembly | RHRB Handing

The Sargent 68-4271 is a genuine OEM replacement upper link assembly designed specifically for Sargent 8700 Series Surface Vertical Rod (SVR) Exit Devices. This critical linkage component transfers the force from the pushpad chassis to the vertical rods to retract the latches. Because this part is hand-specific, this RHRB (Right Hand Reverse Bolt) version is factory-timed to ensure the internal lift mechanism operates with the correct leverage and travel for your specific door swing.

Institutional Grade Features & Benefits

• Optimized Mechanical Timing: Specifically engineered for RHRB door configurations to provide smooth, low-effort latch retraction.
• Direct 8700 Series Compatibility: Designed to fit seamlessly into the internal lift-arm assembly of Sargent’s heavy-duty surface vertical rod and NB (No Bottom Rod) devices.
• Durable Construction: Manufactured from high-strength architectural alloys to withstand the constant cycling and torque found in schools, hospitals, and high-traffic commercial corridors.
• Fire-Rated Reliability: A vital component for maintaining the life-safety functions of fire-rated vertical rod exit devices (12-8700 series).
• Precision Fit: Eliminates the "slop" or "play" in the pushpad that occurs when internal linkage becomes worn or bent over years of service.

Technical Specifications

• Model Number: 68-4271
• Handing: RHRB (Right Hand Reverse Bolt)
• Part Type: Upper Link Assembly
• Compatibility: Sargent 8700 & NB-8700 Series Surface Vertical Rod Devices
• Material: Heavy-Duty Industrial Alloy

Critical Ordering Information:

The Sargent 68-4271 is a handed component. To ensure the proper mechanical operation of your exit device, you must confirm the handing of your door before ordering. If the link is installed on the incorrect hand, the mechanism will not engage the vertical rods properly.

How to Determine Your Door Handing: Stand on the outside (secure/key side) of the door.

• If the hinges are on the Right and the door swings Toward You, you require this RHRB assembly.
• If you are unsure, please compare your door's swing to the handing diagram below for clarification.

The Upper Link Assembly is a high-wear item; if your exit device handle feels "heavy" or the rods aren't lifting high enough to clear the strike, this linkage is likely bent or worn. When performing this repair, check the chassis mounting. Because vertical rod hardware is subject to high vibration, ensuring the chassis is anchored with high-strength thru bolts will prevent the new link from becoming misaligned.
