Sargent 68-7411 Center Chassis Assembly w/ Latchbolt Monitoring 12-53-8500

https://www.doorwaysplus.com/web/image/product.template/31931/image_1920?unique=f7dba3e

Sargent 68-7411 Center Chassis Assembly w/ Latchbolt Monitoring

771.51 771.51 USD 771.51

771.51

Not Available For Sale


  • Brand
  • Series
  • Part Type
  • Fire Rated
  • Fire Rated
  • Exit Device Type
  • Exit Device Type
  • Sargent Exit Device Prefixes
  • Door Handing
  • Door Handing

This combination does not exist.


Share :

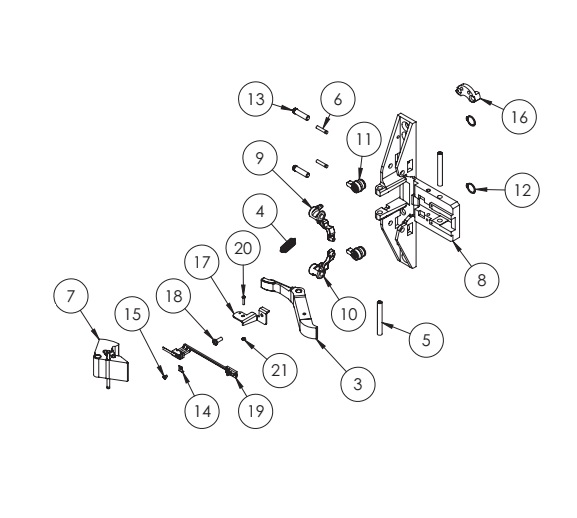

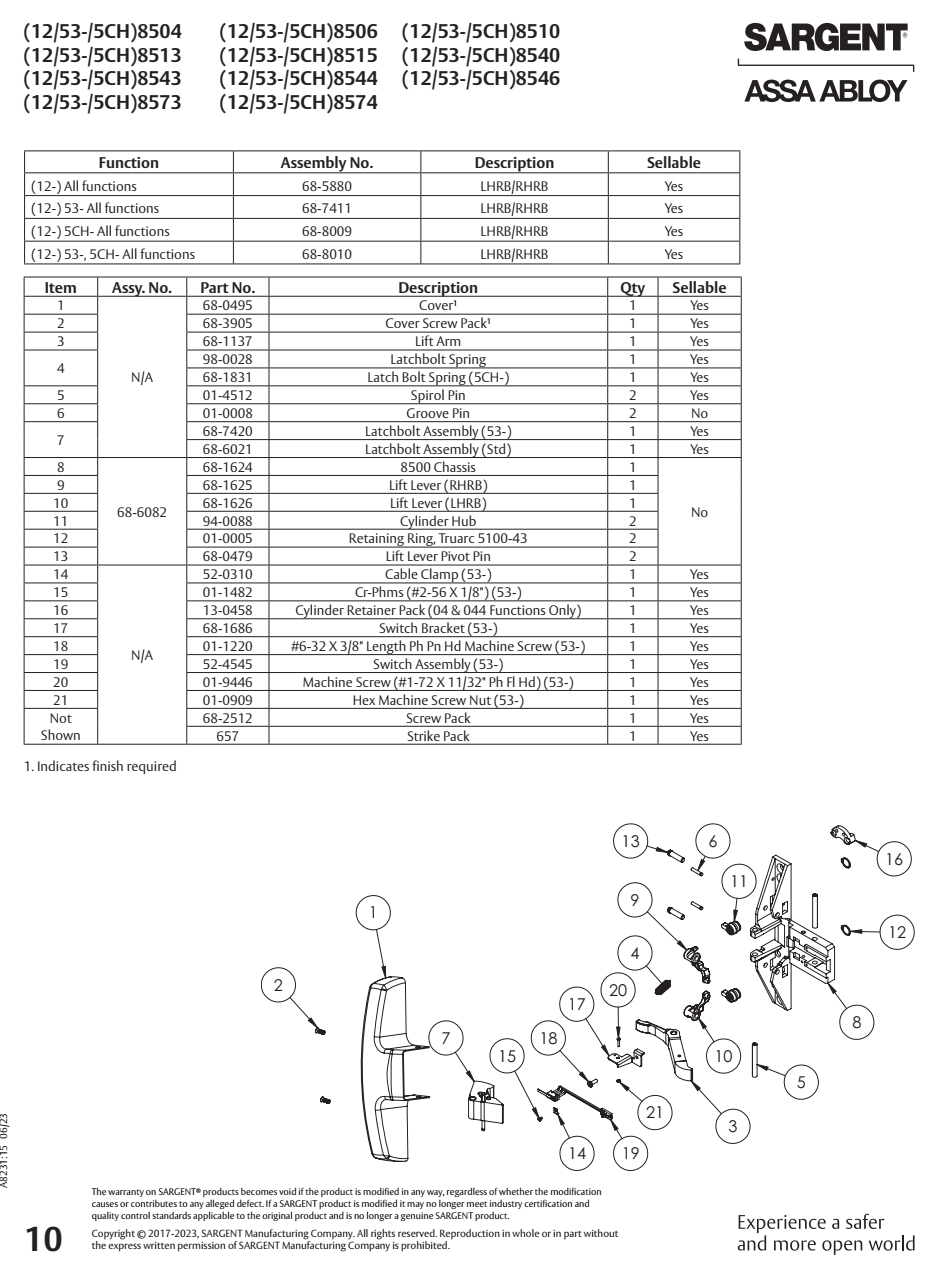

Sargent 68-7411 Center Chassis Assembly - (12)-53-8500 Series


***** Latchbolt Monitoring Option ( -53 Prefix) *****


  • The Lift Levers (#68-0477 & #68-0478) have been discontinued, and are no longer manufactured
  • Non-Handed
  • Can be used on Non-Fire Rated and Fire-Rated Devices
  • New versions of the lift levers (as shown below) are no longer a sellable part
  • Used on 8500 Series Mechanical Functions
  • Center Chassis that incorporate any electrical options require a different chassis




Brand Sargent
Series Sargent - 80 Series
Part Type Chassis Assembly
Fire Rated Fire Rated, Non-Rated
Exit Device Type Narrow Stile, Rim Exit Device
Sargent Exit Device Prefixes 53 - Latchbolt Monitor Switch
Door Handing RHR, LHR
