Sargent 68-7546 Motor Actuator Assembly | For 80 Series ET Trim
The Sargent 68-7546 is the official factory replacement motor actuator designed for Sargent 80 Series Exit Device Outside ET Trim. This heavy-duty assembly is responsible for the mechanical locking and unlocking of the lever handle when triggered by a card reader or keypad. Engineered specifically for newer generations of Sargent hardware, this motor is compatible with all 80 Series ET trim models manufactured after 2018.
Reliable Access Control Maintenance
- Direct Factory Replacement: The exact OEM part needed to repair "fail-secure" or "fail-safe" electronic functions in your Sargent exit device.
- 80 Series Compatibility: Designed to integrate seamlessly with the internal chassis of the industry-leading 80 Series ET (Electrified Trim) lever handles.
- Post-2018 Engineering: Optimized for current Sargent hardware standards, ensuring improved motor longevity and quieter operation than previous generations.
- Component Accuracy: Identified as Item #5 on the standard Sargent ET trim exploded parts diagram, making it easy for maintenance teams to identify and replace.
- Commercial Grade Durability: Built to handle high-frequency use in hospitals, universities, and corporate office buildings where electronic access is required.
Technical Specifications
- Part Number: 68-7546
- Application: Motorized Outside ET Trim
- Compatibility: Sargent 80 Series (Post-2018 manufacture date)
- Part Reference: Item #5 on trim diagram
- Included: (1) Motor Actuator Assembly
- Required Accessories: Requires 14-wire harness

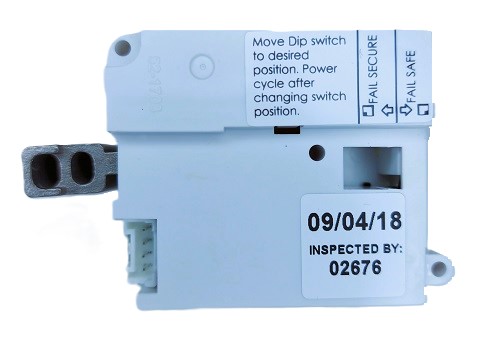

Note: To change the motor assembly from Fail Safe to Fail Secure, depress the "tabs" circled in the below picture to reveal the dip switch
| Brand | Sargent |
| Series | Sargent - 700 ET Series, Sargent - 80 Series |
| Fail Safe/Fail Secure | Fail Safe, Fail Secure |
Sargent 80 Series Parts Manual A8231C.pdf
Download
