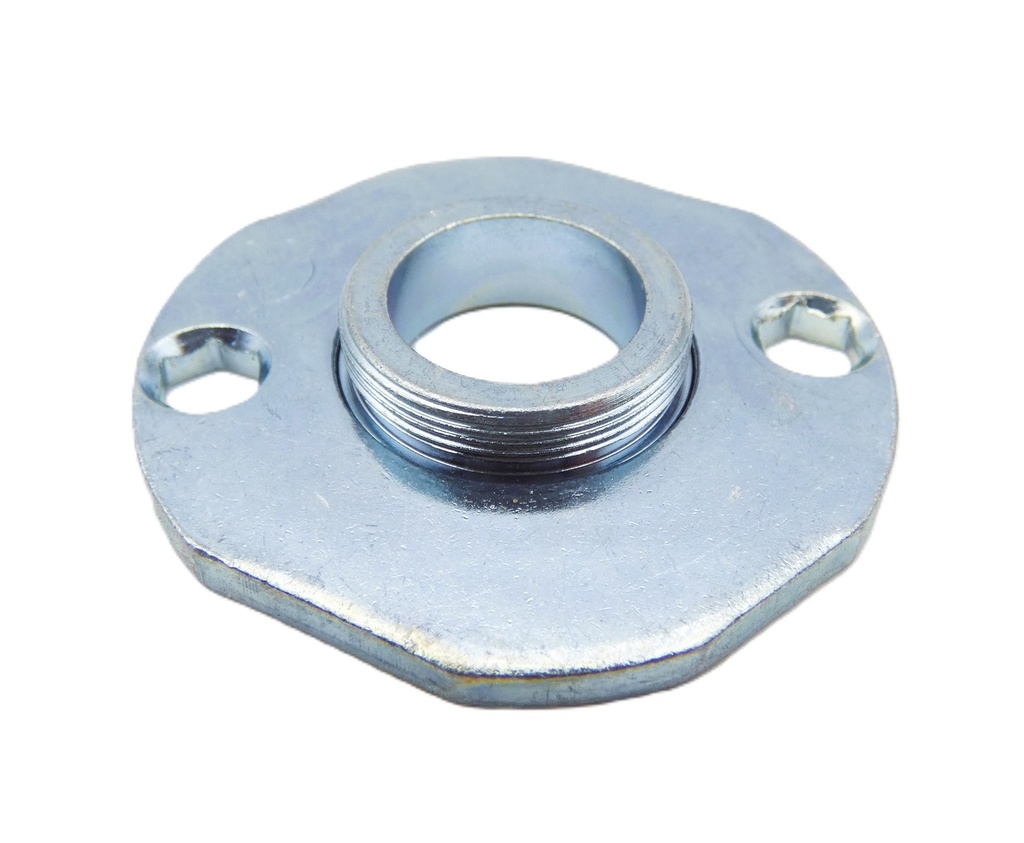

Sargent 82-3082 Outside Adaptor & Plate Assembly
For 7800/ 8200 Series mortise locks with LN, E, O, CR, TR Rose and LW1, KW1 Esc Escutcheons

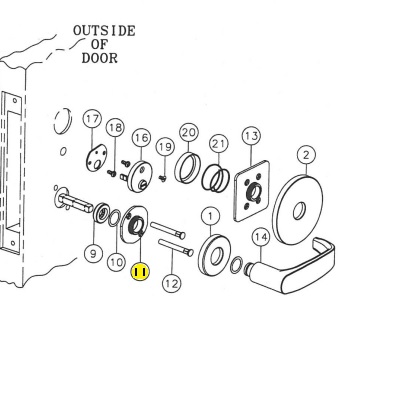

Part # 11 below
Brand | Sargent |
Series | Sargent - 8200 Series |
Part Type | Mounting Plate |
Sargent 7800 8200 Knob or Lever WT Escutcheon All Functions 2002.pdf
Download
Sargent 7800 Knob Sectional Trim All Functions 2002.pdf
Download
Sargent 7800 Mortise Lock Parts Manual
Download
Sargent 8200 LN or L Rose Trim Parts Diagrams All Functions 2002.pdf
Download
Sargent 8200 Series Parts List
Download
