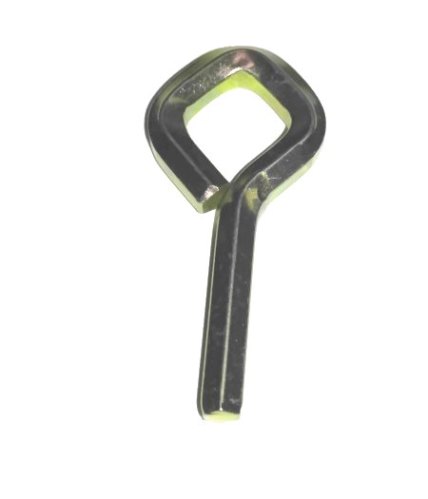

Sargent 97-0001 Dogging Key | 7/32" Hex for Exit Devices
The Sargent 97-0001 is a genuine OEM replacement dogging key designed for use with the entire range of Sargent Exit Devices. Featuring a precision-cut 7/32" hex-shaped head, this tool is required to engage the mechanical dogging feature on non-fire-rated panic bars. By inserting the key into the dogging socket and rotating, the pushpad is locked in the retracted position, allowing the door to operate as a "push-pull" entrance without the latch engaging the strike.
Essential Tool Features & Universal Fit
- Universal Sargent Compatibility: Works with all Sargent exit devices equipped with hex-key dogging, including the 80 Series (8700, 8800, 8900) and 20 Series.
- Precision 7/32" Hex Head: Machined to exact tolerances to prevent stripping the internal dogging socket screws (Sargent 01-1493/01-1494).
- High-Torque Steel Construction: Built from hardened tool steel to resist bending or snapping, even when used on older, high-tension dogging mechanisms.
- Ergonomic Loop Design: The classic large-loop handle allows the key to be easily added to a facility manager's ring or hung near the opening for quick access.
- ADA & Facility Efficiency: Facilitates easy "open-door" policies for schools, retail centers, and office buildings during peak hours.
Technical Specifications
- Model Number: 97-0001
- Tool Type: Hex Dogging Key
- Size: 7/32" Hex
- Device Compatibility: All Sargent Exit Devices (Non-Fire Rated)
- Material: Hardened Tool Steel
The Sargent 97-0001 is the most frequently misplaced maintenance tool in commercial buildings. We recommend keeping a spare key inside the hinge-side end cap of the exit device or secured to the door frame. If the key turns but the bar fails to stay retracted, it is likely that the internal bar locking screws are loose or missing.
Maintenance Note: Frequent "dogging" of a door puts consistent pressure on the exit device chassis. To prevent the mechanism from shifting or becoming misaligned over time, ensure the chassis is firmly secured to the door leaf using high-strength thru bolts. A stable, thru-bolted mounting ensures that the dogging socket remains perfectly aligned with the access hole in the push-bar.
| Brand | Sargent |
| Series | Sargent - 20 Series, Sargent - 30 Series, Sargent - 80 Series |
| Part Type | Dogging Key |
