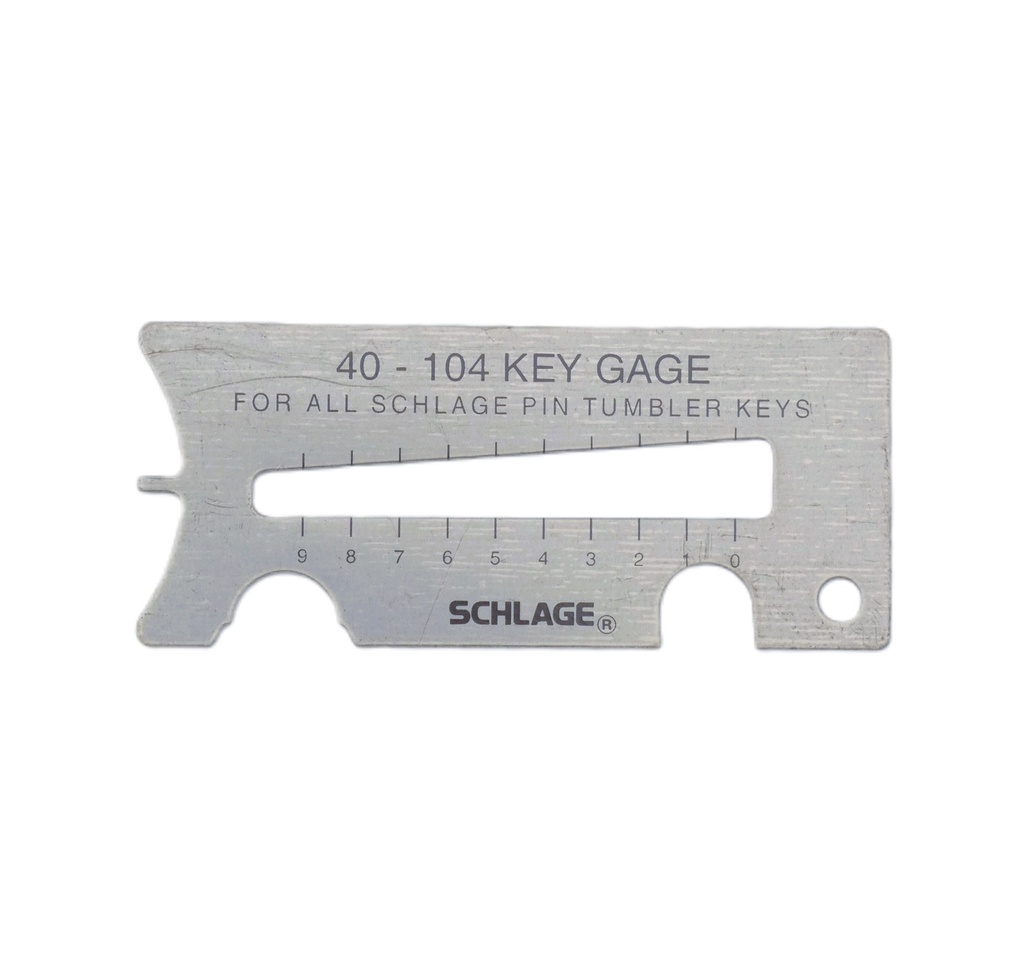

Schlage 40-104 Key Gauge - Precision Key Depth Decoder

The Schlage 40-104 Key Gauge is a specialized precision instrument designed for the rapid and accurate identification of key cut depths within the Schlage Classic (C, E, F, G, etc.) and Everest keyway families. This locksmithing diagnostic tool is an essential requirement for facility managers and security professionals who need to decode existing keys for rekeying projects or to verify the accuracy of newly duplicated keys. By simply sliding the key into the laser-etched slots, the user can instantly determine the numerical bitting (0-9), providing a seamless security and maintenance solution for complex key systems.

As a critical hardware management tool, the 40-104 is manufactured from heavy-duty stainless steel to prevent the "notching" and wear that can occur with plastic alternatives. This ensures long-term accuracy when identifying worn keys that may be causing "sticky" lock operation. By using this authentic Schlage tool, you eliminate the guesswork associated with "by-eye" decoding, serving as a high-value accuracy solution for schools, hospitals, and commercial buildings that rely on the integrity of their Schlage master key systems.

Key Decoding & Bitting Analysis Summary

The Schlage 40-104 acts as a physical reference for the factory-standard depths of the Schlage brand, serving several vital mechanical functions:

• Instant Bitting Recovery: The gauge features precision steps mapped to the Schlage root depths (increments of 0.015"). This allows for the instant creation of a bitting list for rekeying purposes.
• Pinning Accuracy Solution: Before pinning a cylinder, a technician can use the 40-104 to ensure the key is cut to factory tolerances. If a key is out of spec, it acts as a preventative maintenance solution, identifying the need for a new key before it causes internal cylinder damage.
• Everest and Classic Compatibility: This gauge is designed to handle the standard profiles used across the most popular Schlage commercial and residential cylinders.
• Code Verification: When a "Key Case" or "Blind Code" is missing, this gauge allows the user to "read" the key and recover the original factory code, facilitating the cutting of a "code-original" key on a punch machine.

Technical Specifications

Engineered Solutions for Facility Security Management

The Schlage 40-104 addresses the specific logistical and technical challenges of maintaining high-security door hardware:

• Eliminate Service Recalls: One of the most common causes of lock failure is an inaccurately cut key. This gauge is the primary reliability solution, ensuring that every key issued to staff or tenants meets the exact shear-line requirements of the cylinder.
• Streamlined Key Audits: During a security transition, maintenance teams can quickly decode keys found in the possession of employees to verify if they match the authorized access levels, providing a rapid audit solution.
• Hardware Lifecycle Extension: A key that is "off" by even half a depth causes the brass pins inside the lock to wear prematurely. Using this tool to verify key quality is a protective solution that extends the life of expensive commercial cylinders.
• Master Key System Integrity: In multi-level master key systems, precision is everything. The 40-104 ensures that sub-master and grand-master keys are not "drifting" from their intended codes, which could otherwise lead to cross-keying vulnerabilities.
• Compact Field Diagnostics: The thin, pocket-sized design allows technicians to diagnose "key won't turn" issues right at the door, providing an on-site troubleshooting solution without having to return to the locksmith shop.
