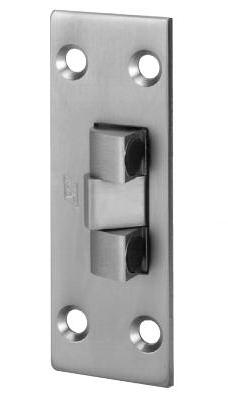

McKinney DS-6 Emergency Door Stop Release | US26D Satin Chrome

The McKinney DS-6 Emergency Door Stop Release is a specialized life-safety hardware component designed for high-risk institutional environments. Specifically engineered for schools, hospitals, and behavioral health facilities, this unit allows double-acting doors hung on center pivots to function as single-acting doors while providing a critical override capability. It is a vital solution for door restoration in facilities requiring emergency access, as it enables center-hung or 1/8" inset doors to swing in the opposite direction during an emergency without causing structural damage to the frame.

Accepted by the New York State Office of Mental Health (OMH) for high-risk areas, the DS-6 is the industry-standard solution for commercial door security and patient safety. The stop is mortised into the frame and features a spring-loaded latch that releases with a simple touch of the finger. Once the emergency has passed, a second touch of the lever returns the latch to its original position, restoring the door's standard single-acting function.

Key Features & Performance

• Emergency Override Capability: Allows the door to swing open in the opposite direction when standard access is blocked, serving as a life-saving solution for door security.

• OMH Accepted: Rigorously tested and approved for use in high-risk behavioral health settings, providing a dependable solution for door edge reinforcement and safety compliance.

• Dual-Direction Versatility: Compatible with center-hung or 1/8" inset (offset hung) doors, preventing frame damage during emergency forced entry.

• Simple Finger-Touch Operation: The intuitive latch mechanism releases and resets with minimal force, ensuring rapid response times for staff and first responders.

• Durable US26D Finish: The Satin Chrome plated finish provides high-quality corrosion resistance and matches standard architectural hardware.


Technical Details & Specifications

• Brand: McKinney (ASSA ABLOY)
• Model Number: DS-6
• Dimensions: 1-5/8" Wide x 4-1/2" High

• Mounting Type: Full Mortise (Frame Only)
• Minimum Frame Width: 3-1/4" (for 1-3/4" doors) or 2-7/8" (for 1-3/8" doors)
• Finish: US26D (626) Satin Chrome
• ANSI Number: A1882

• Fasteners Included: Furnished with 1/2" x 12-24 Machine Screws.

Important Compatibility Notes

The McKinney DS-6 is highly recommended for installation in conjunction with the McKinney EP-5J Emergency Pivot. Please note that this unit is not for use with deadbolts, as a locked deadbolt would prevent the emergency release from swinging the door in the opposite direction. It is a specialized solution for door surface repair and safety upgrades in psychiatric wards and institutional corridors.

Why Choose the McKinney DS-6?

The McKinney DS-6 is the professional’s choice for blending institutional security with patient safety. By converting double-acting doors into single-acting units with an emergency release, you gain full control over room access without sacrificing emergency exit requirements. It offers a permanent and cost-effective solution for door security, delivering the industrial-grade reliability and life-safety compliance required for modern healthcare and educational facilities.

​
